Wiring Diagram -Ignition Power Supply -

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

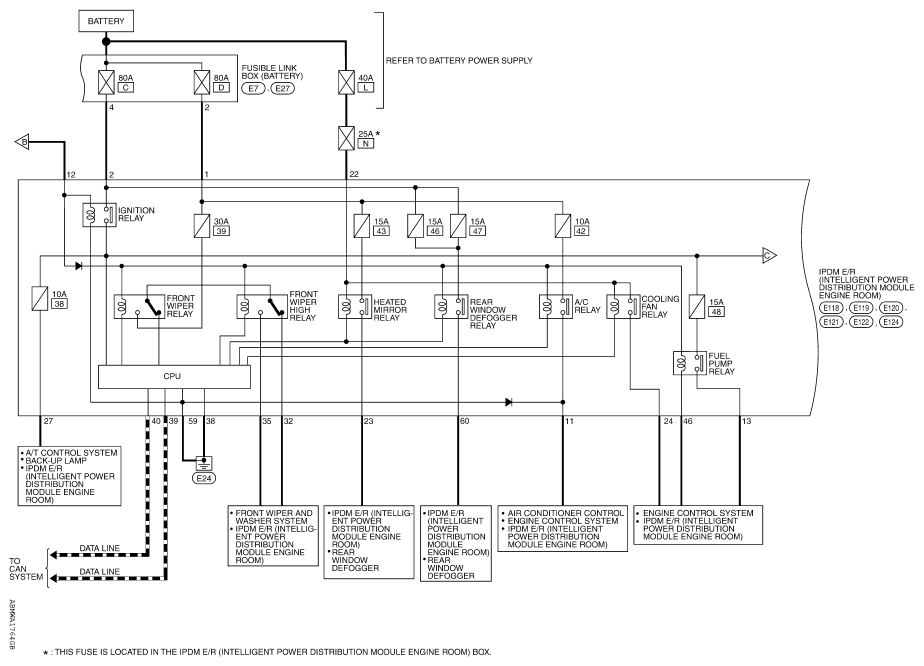

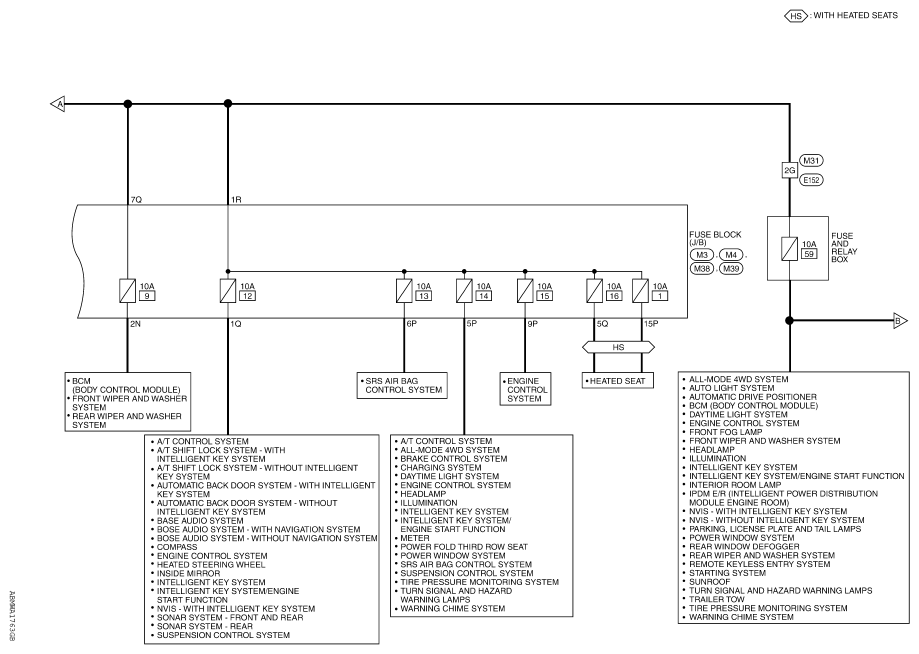

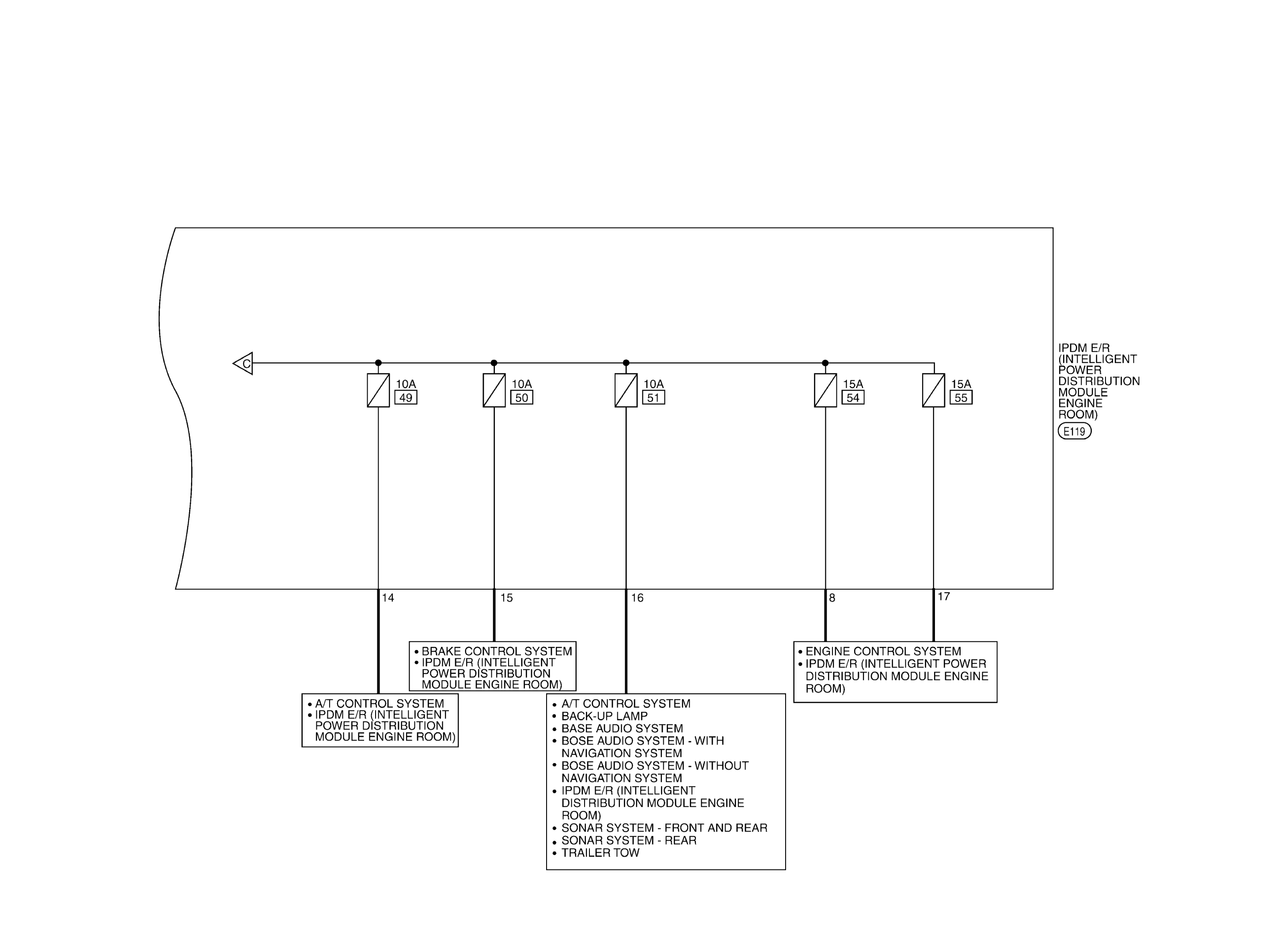

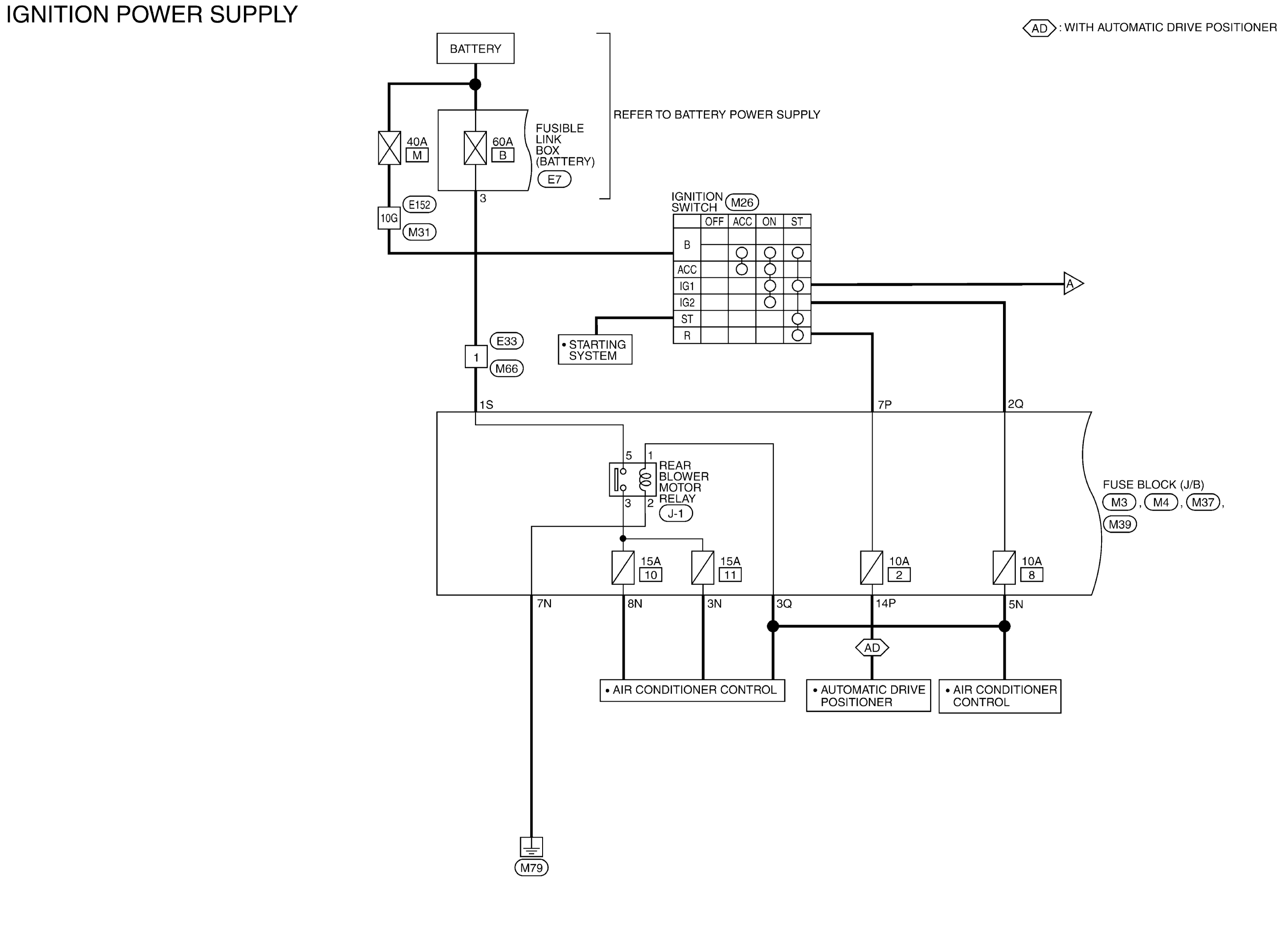

Fig 1: Ignition Power Supply - Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Ignition Power Supply - Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Ignition Power Supply - Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Ignition Power Supply - Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

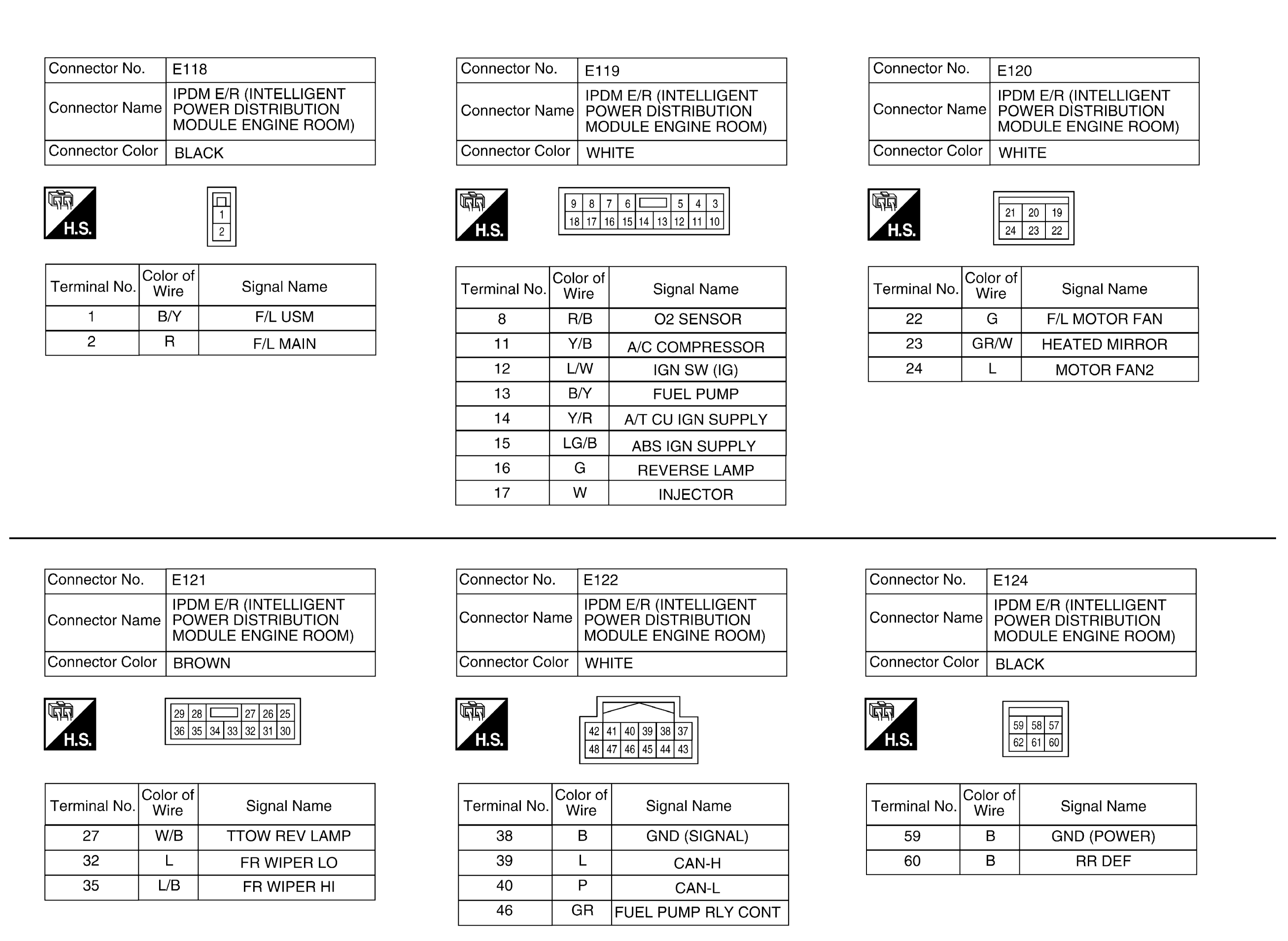

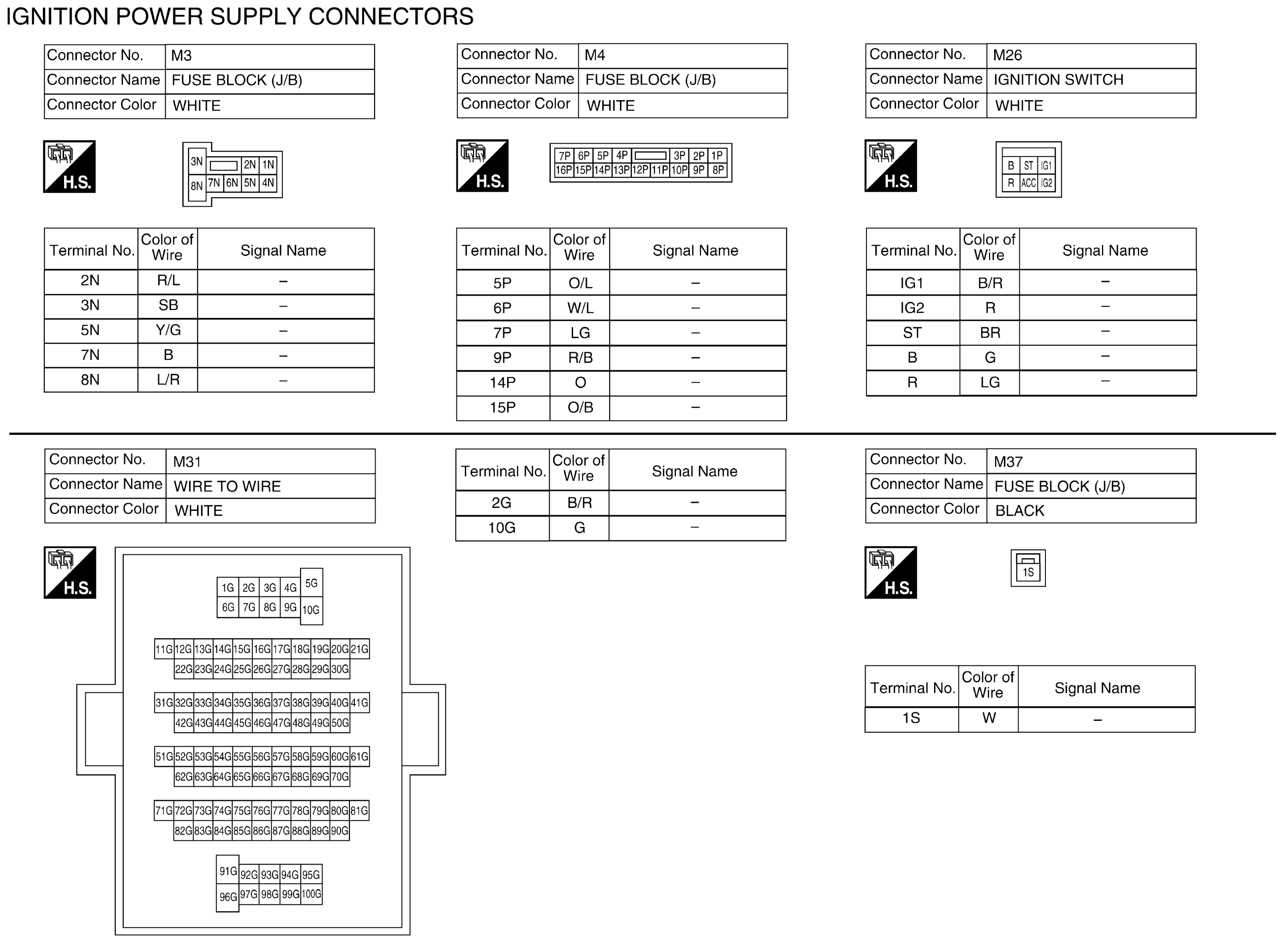

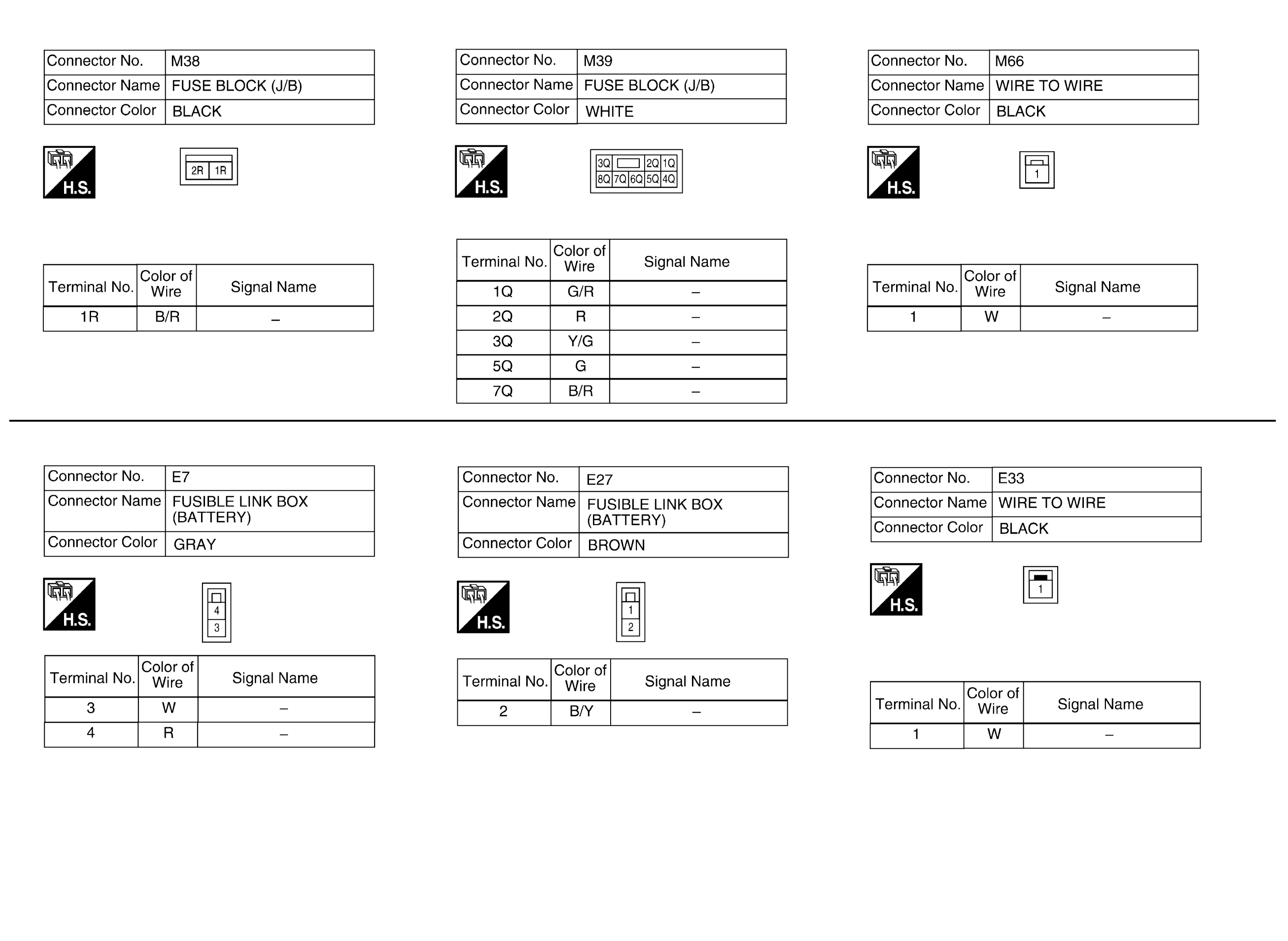

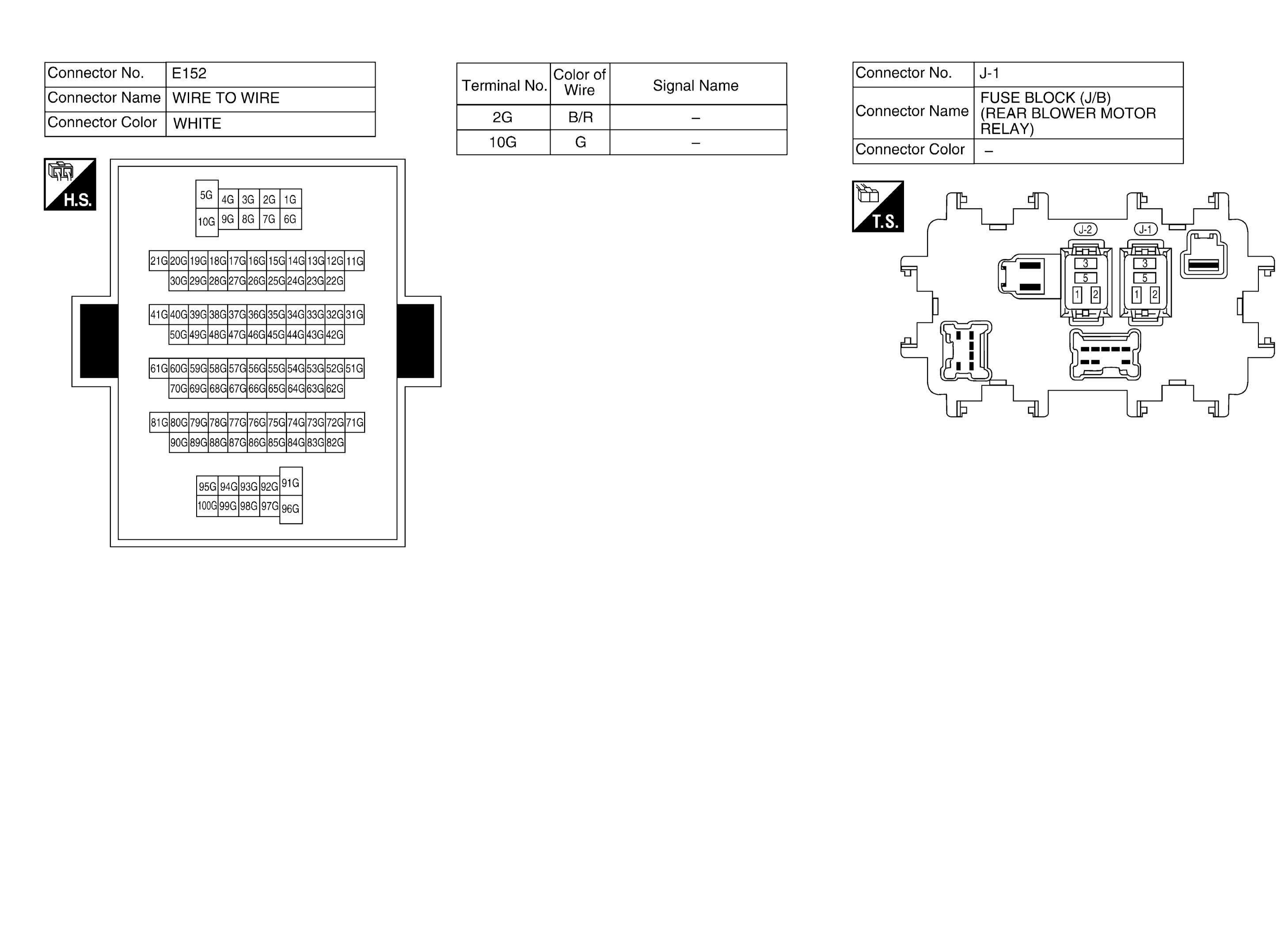

Fig 5: Ignition Power Supply Connector End View (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Ignition Power Supply Connector End View (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Ignition Power Supply Connector End View (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Ignition Power Supply Connector End View (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
