Wiring Diagram -Battery Power Supply -

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

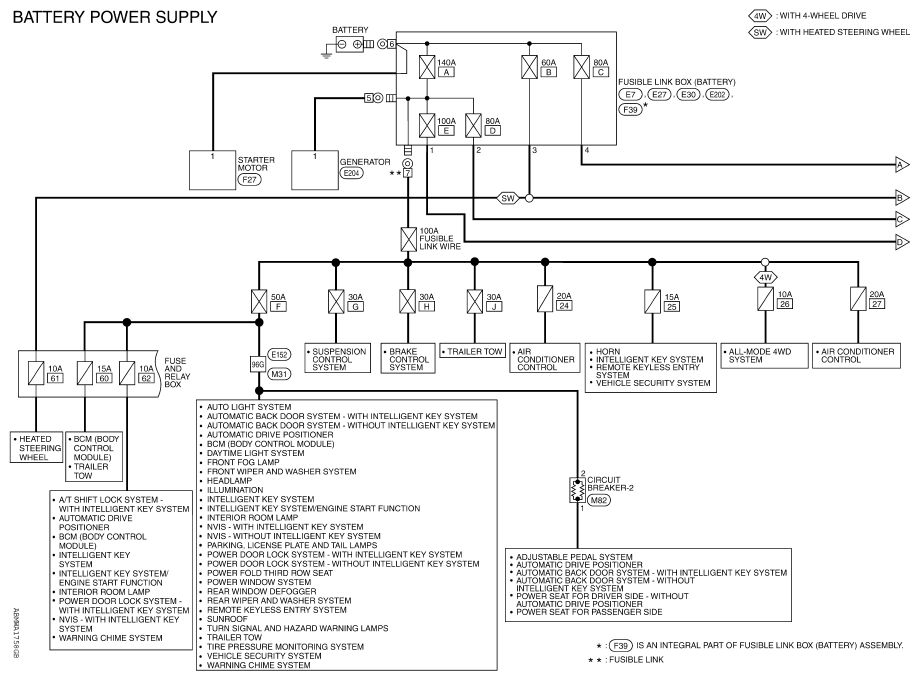

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

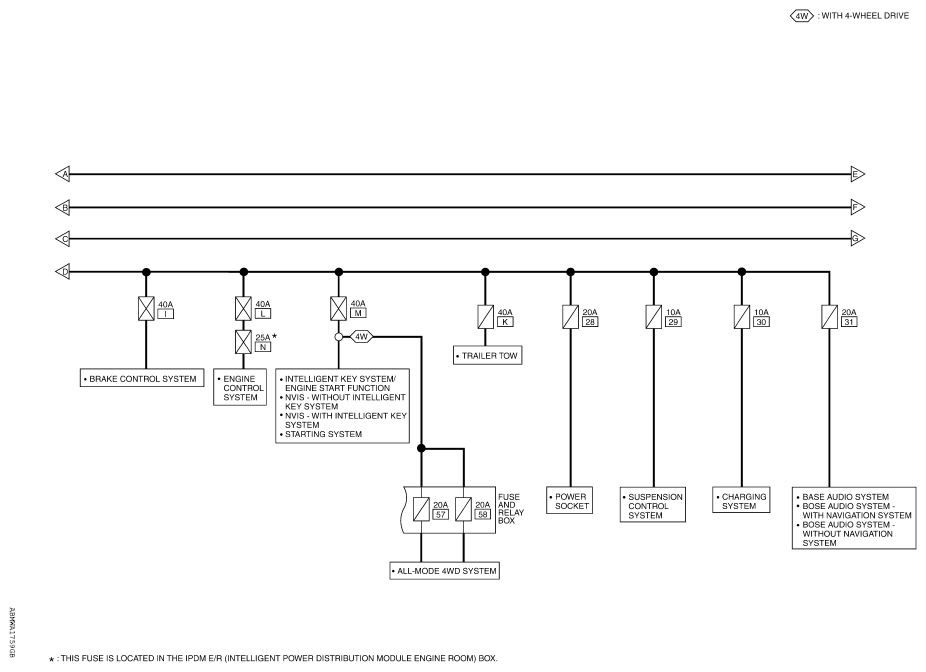

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

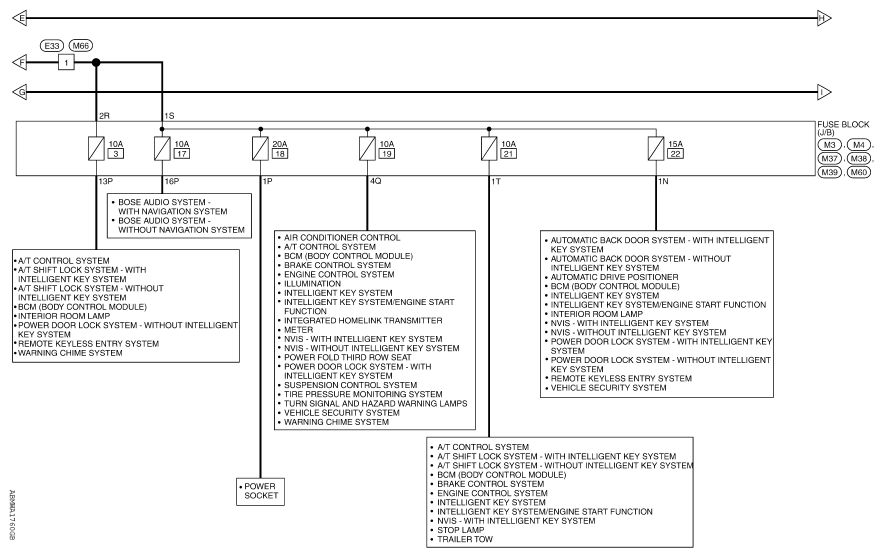

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

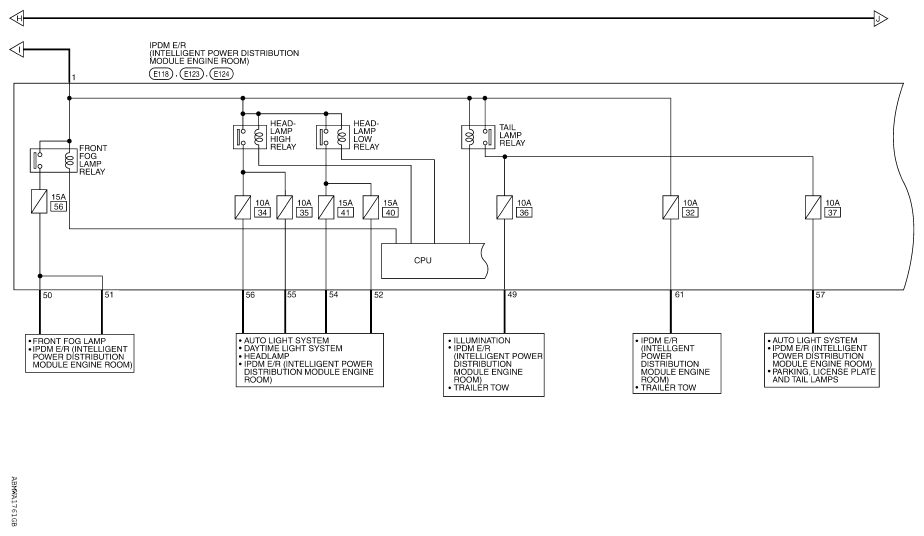

Fig 4: Battery Power Supply - Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

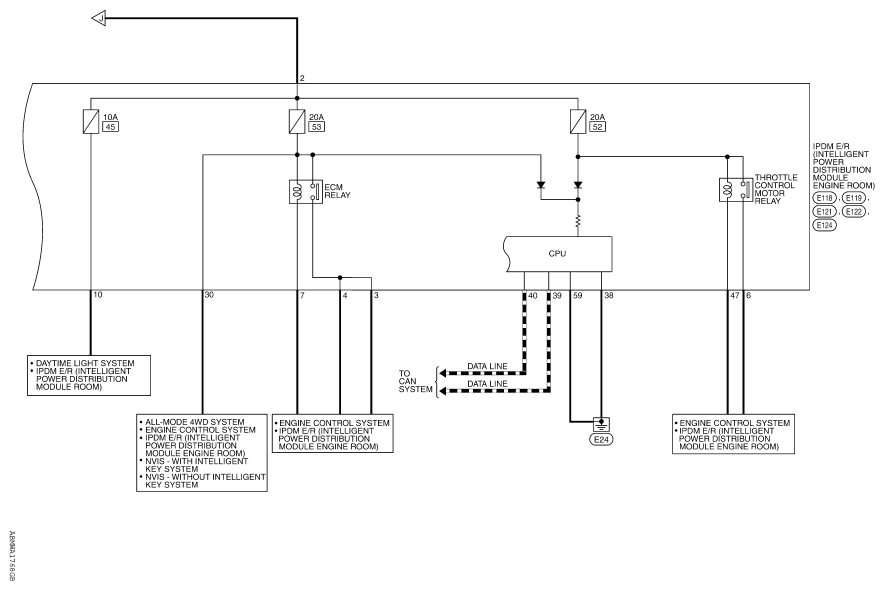

Fig 5: Battery Power Supply - Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

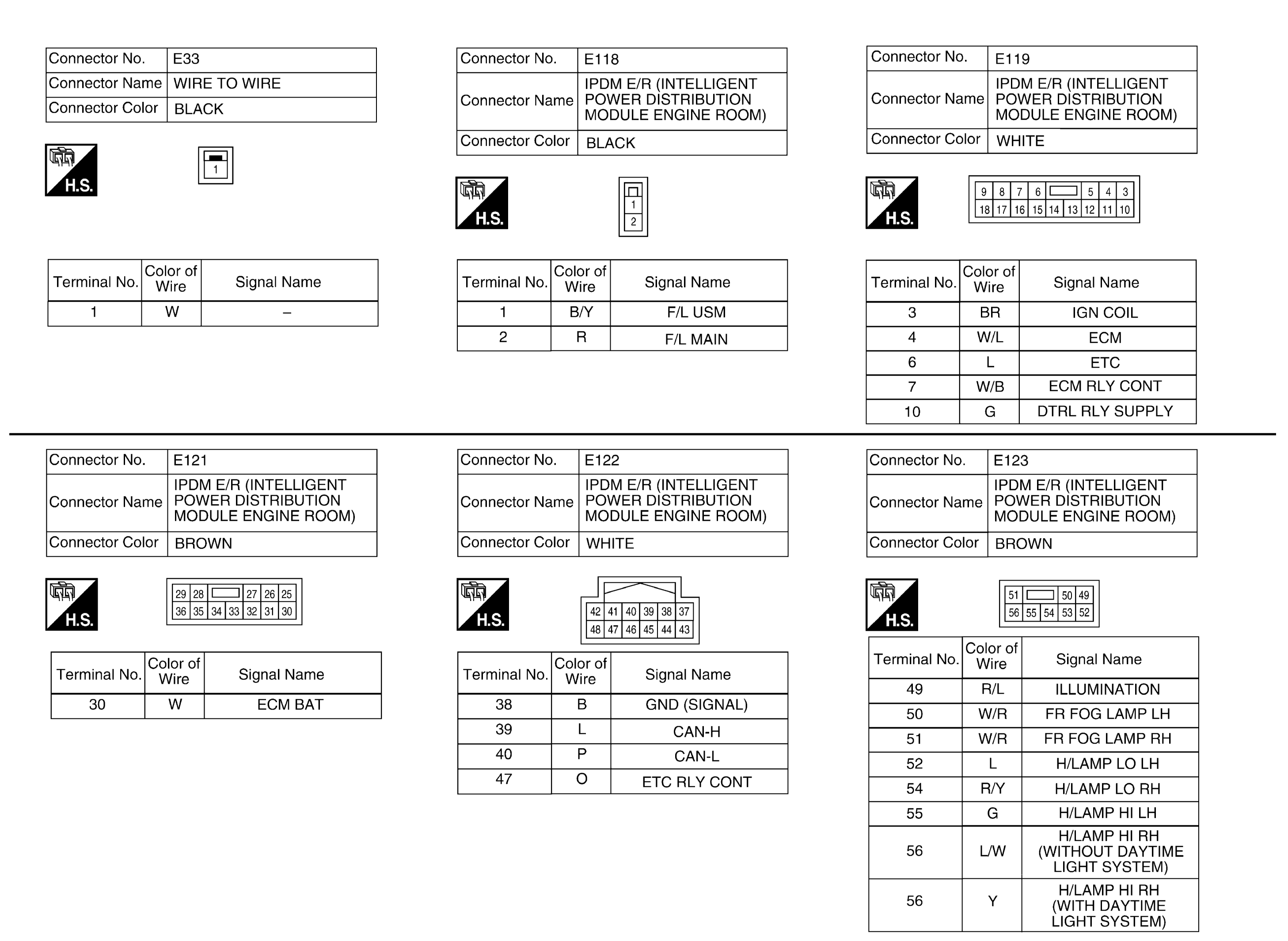

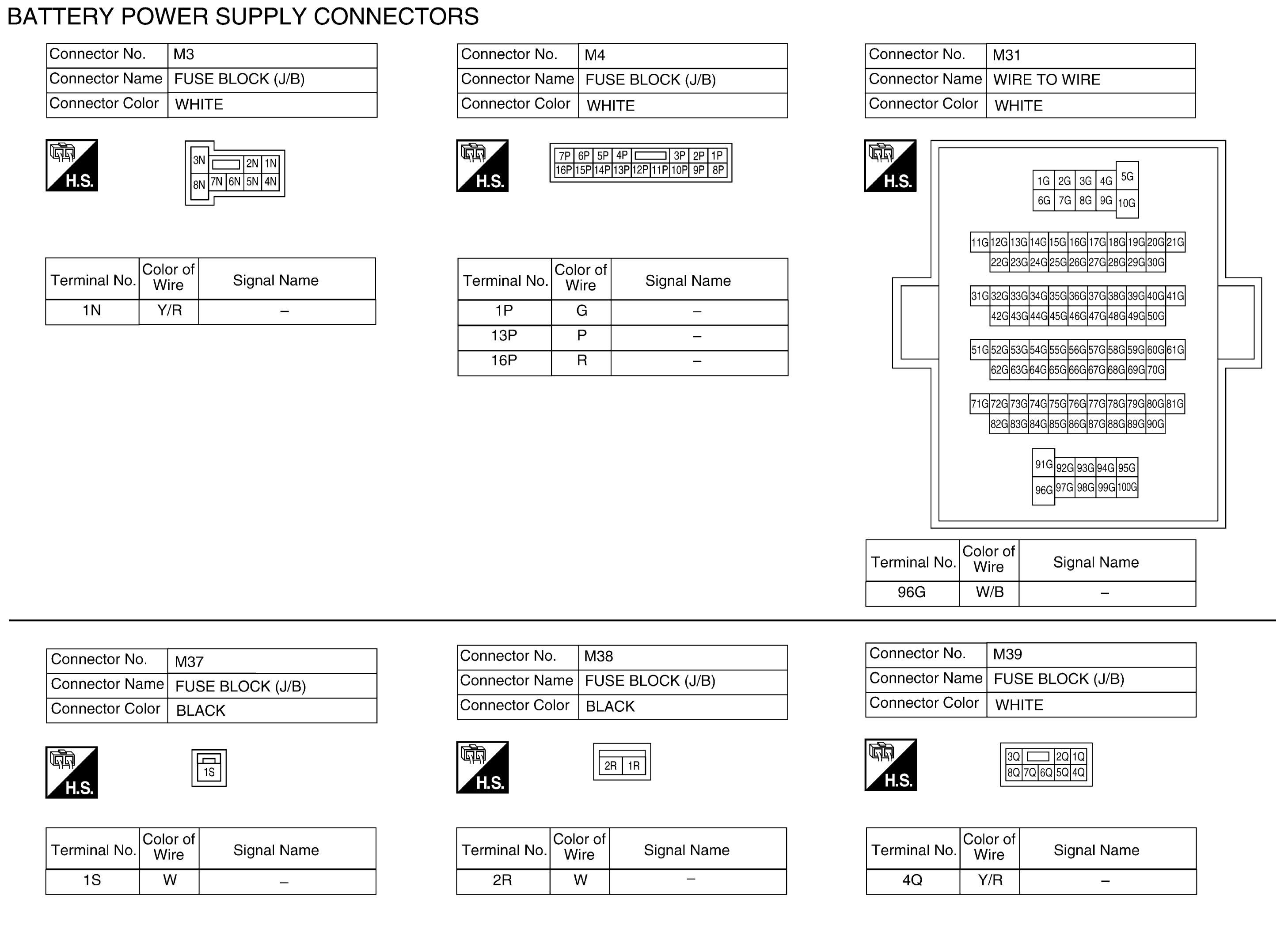

Fig 6: Battery Power Supply Connector End View (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

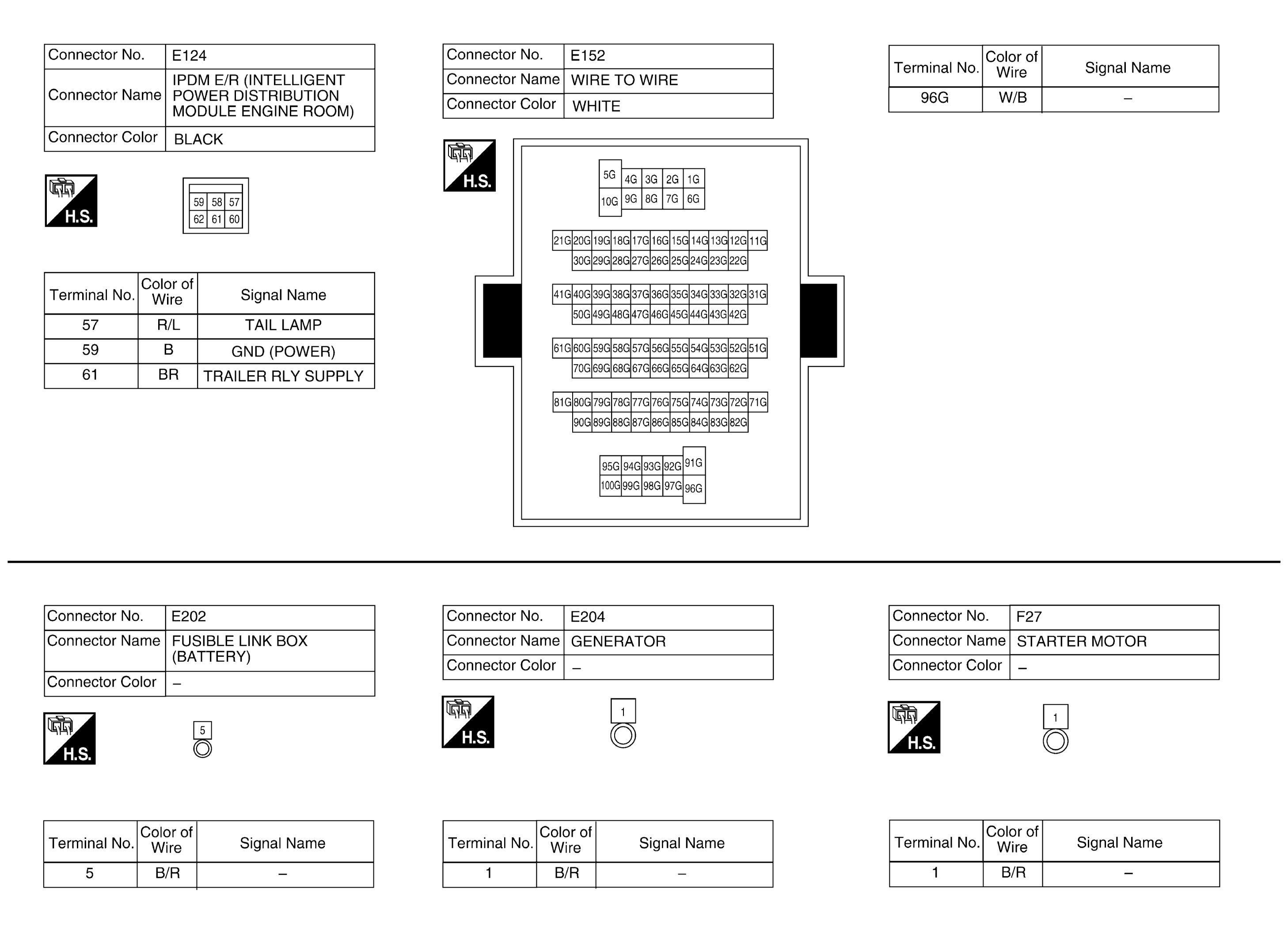

Fig 7: Battery Power Supply Connector End View (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

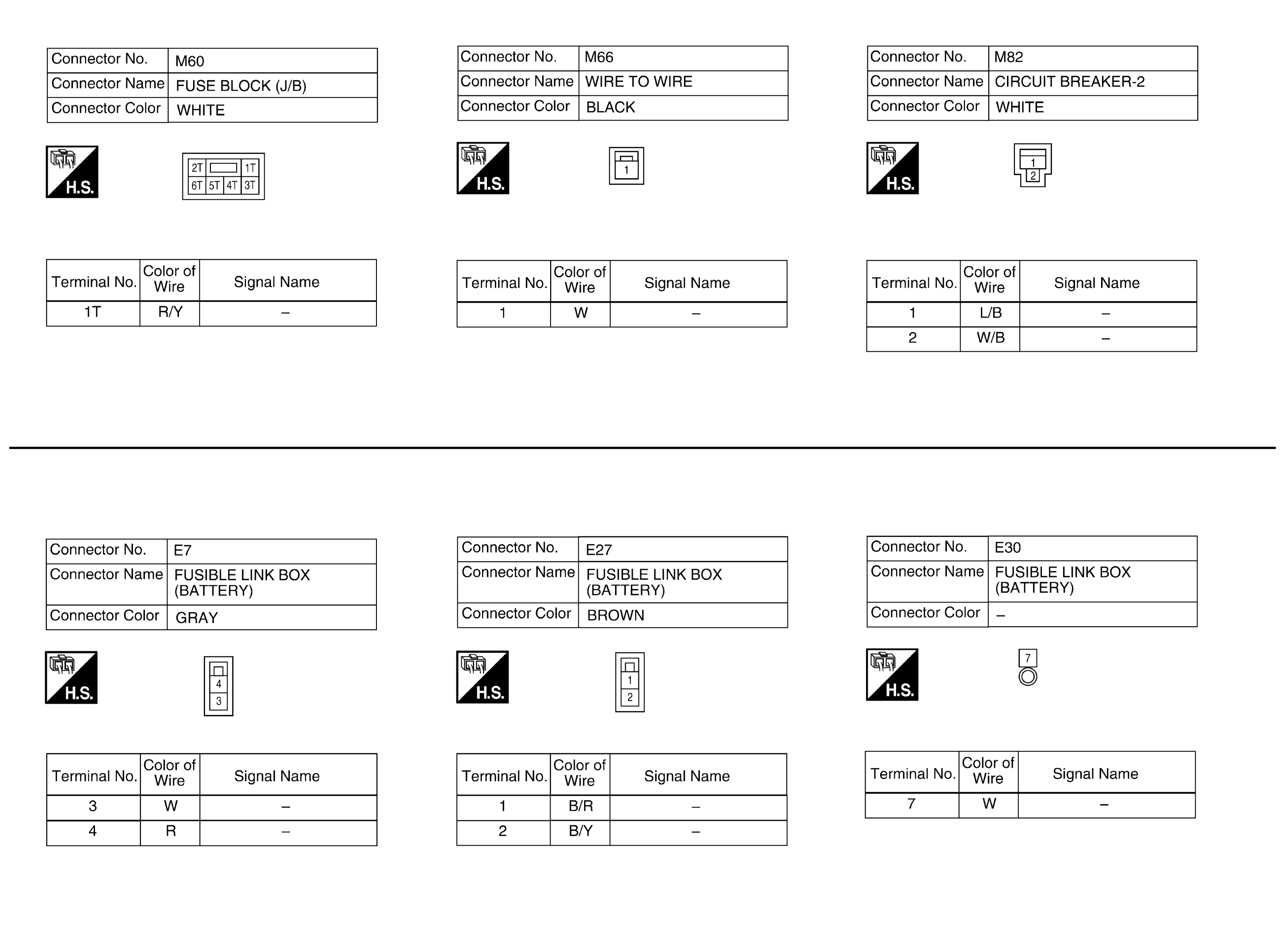

Fig 8: Battery Power Supply Connector End View (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Battery Power Supply Connector End View (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
