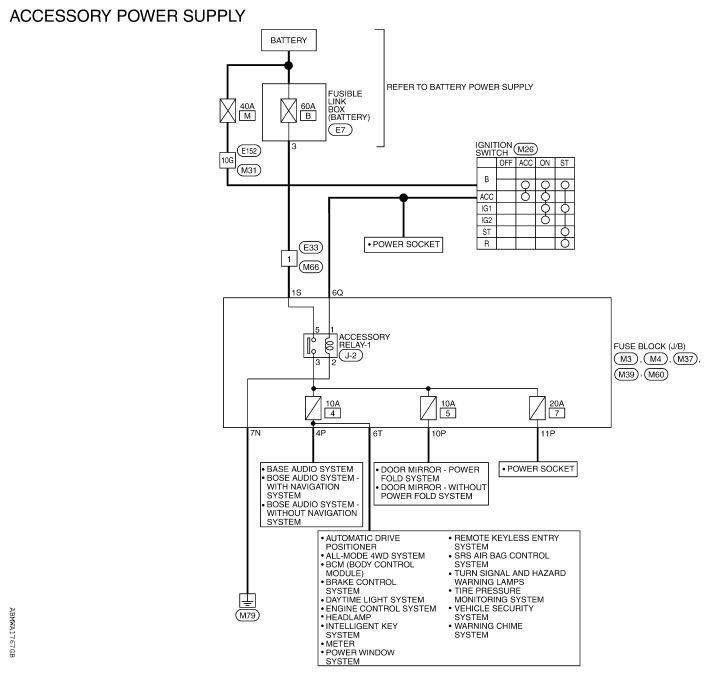

Fig 1: Accessory Power Supply - Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

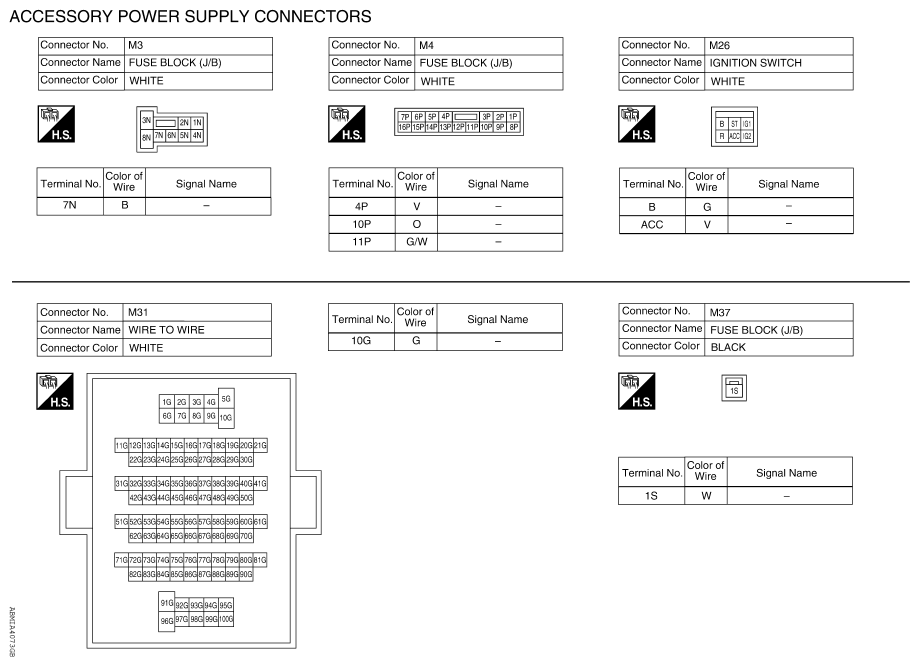

Fig 2: Accessory Power Supply Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

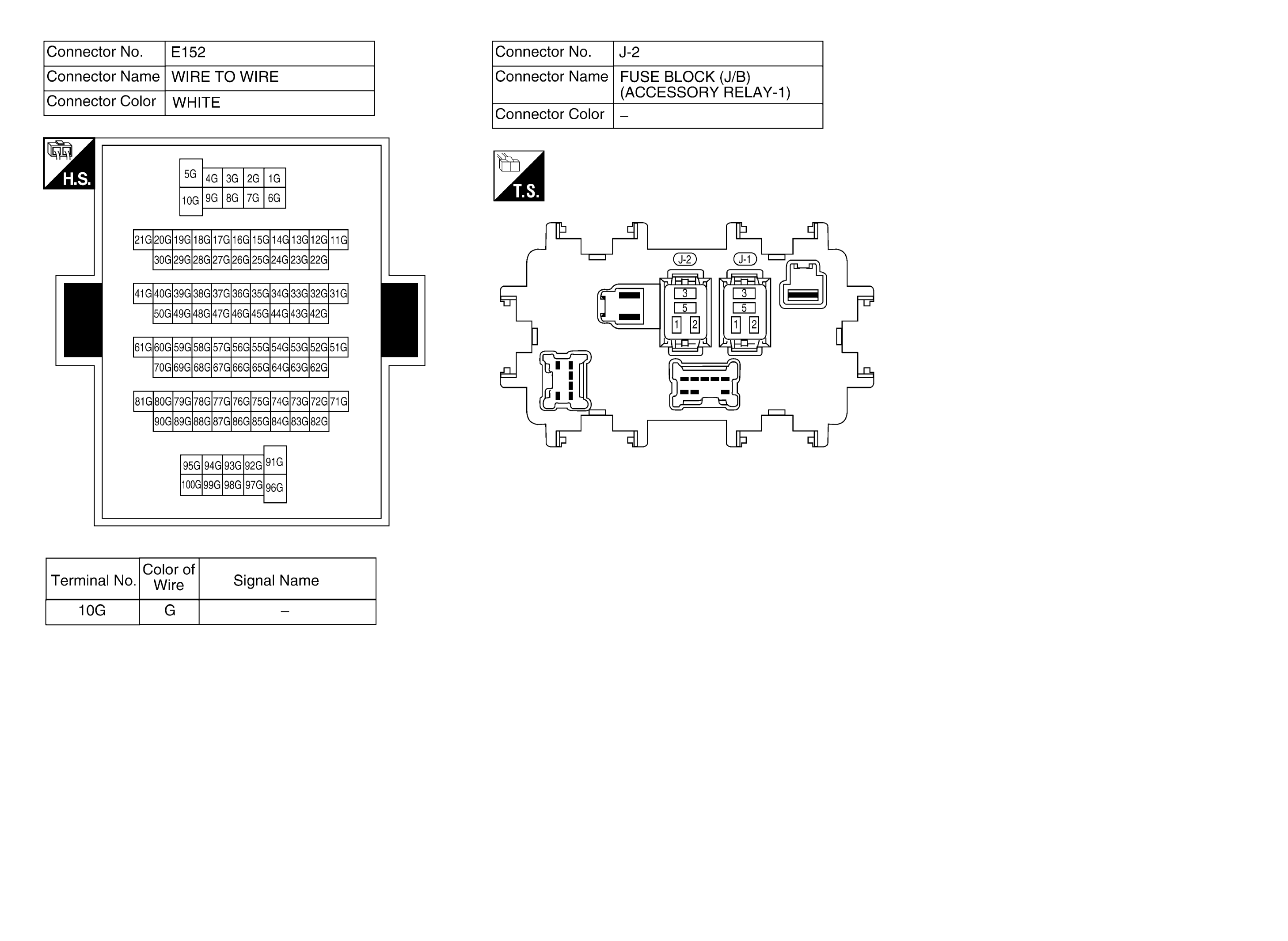

Fig 3: Accessory Power Supply Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

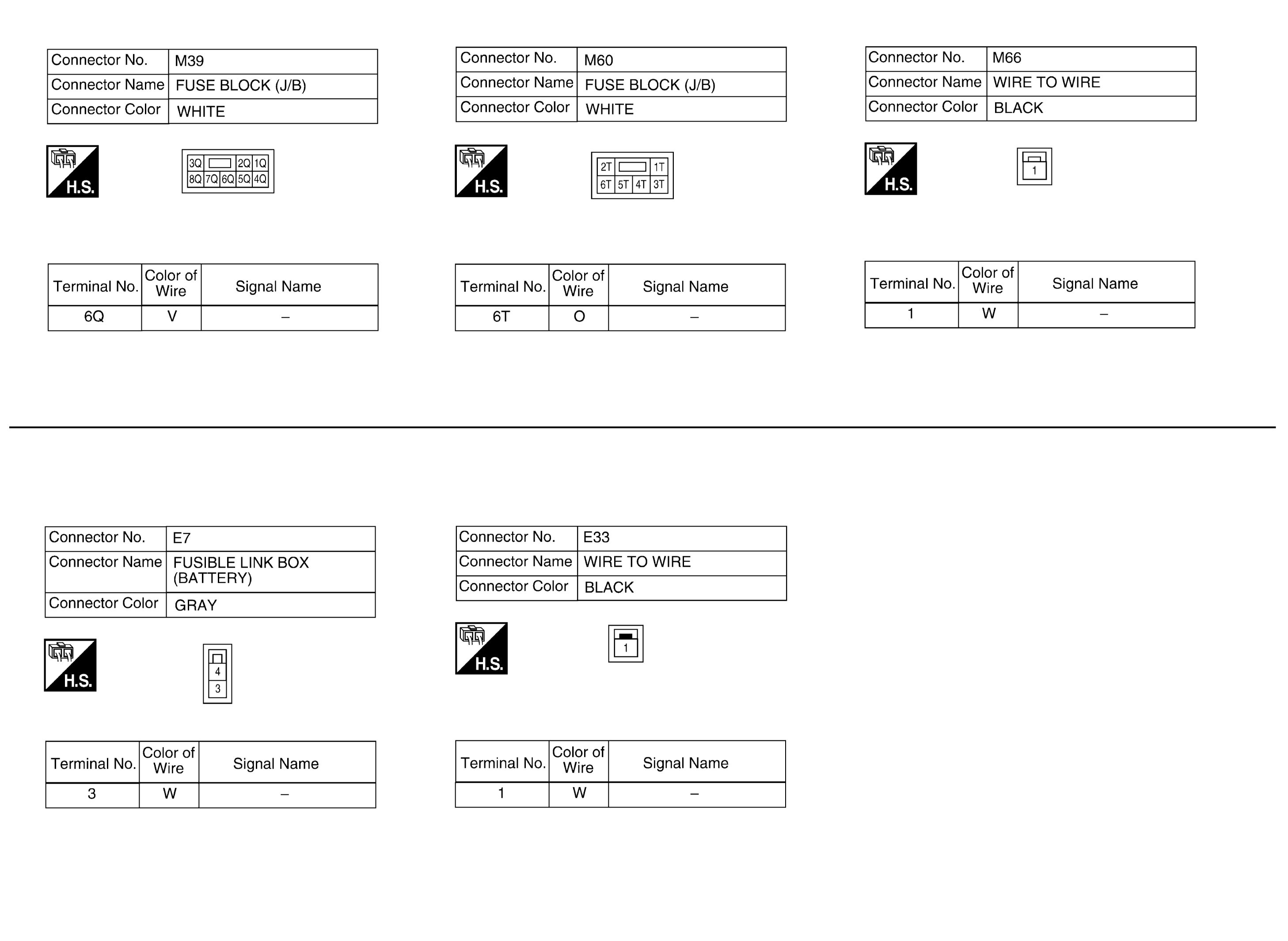

Fig 4: Accessory Power Supply Connector End View (3 Of 3)
