IPDM E/R Terminal Arrangement

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

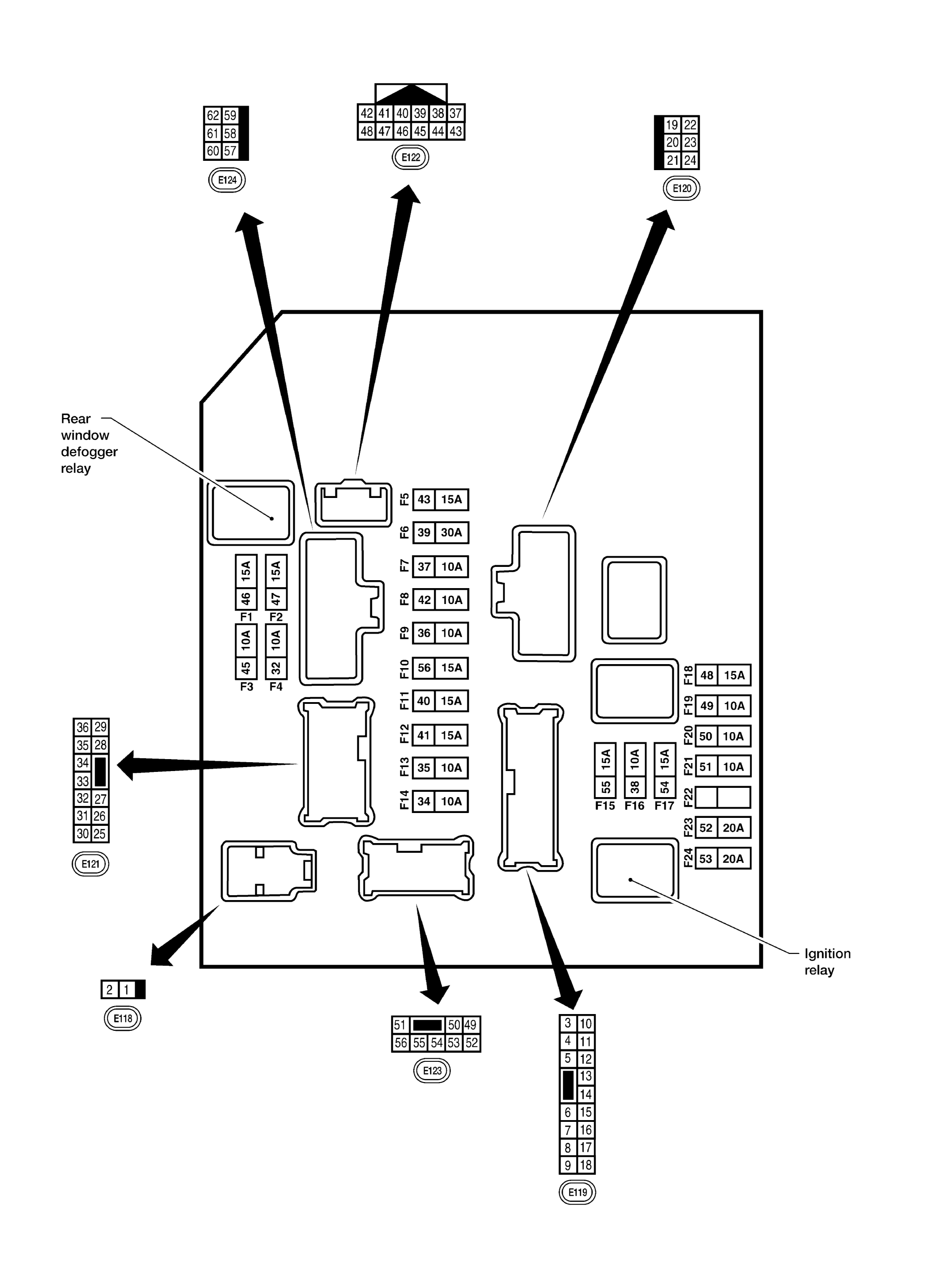

Fig 1: Intelligent Power Distribution Module Engine Room Connector End View

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers represent the fuse numbers as they appear in the wiring diagrams.
