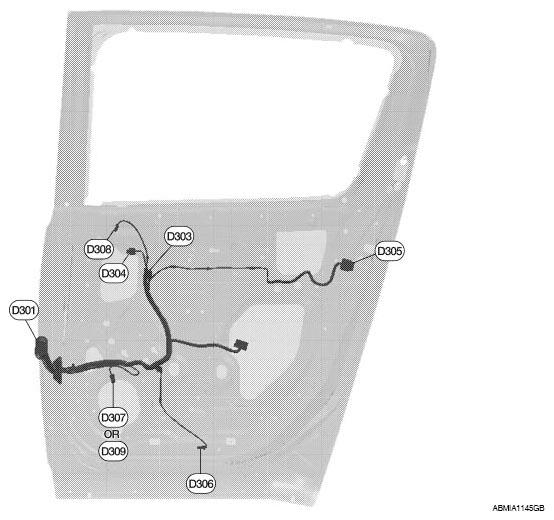

Rear Door RH Harness
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| D301 | W/18 | : To B106 | |||
| D303 | W/8 | : Rear power window switch RH | |||
| D304 | GR/2 | : Rear power window motor RH | |||
| D305 | B/6 | : Rear door lock actuator RH | |||
| D306 | W/2 | : Rear step lamp RH | |||
| D307 | BR/2 | : Rear door speaker RH (with BOSE audio system) | |||
| D308 | BR/2 | : Rear door tweeter RH | |||
| D309 | W/2 | : Rear door speaker RH (with base audio system) |
