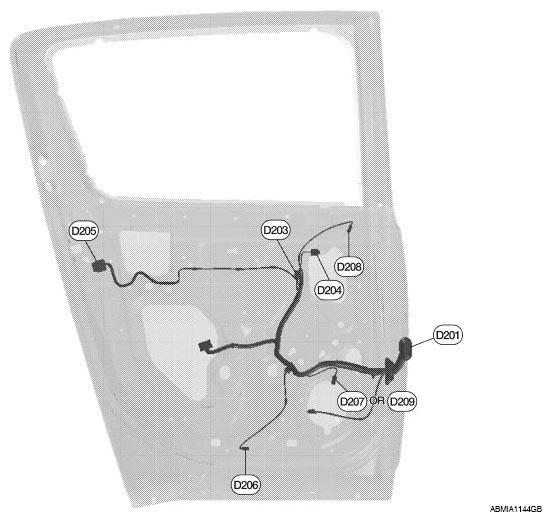

Rear Door LH Harness
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| D201 | W/18 | : To B6 | |||
| D203 | W/8 | : Rear power window switch LH | |||
| D204 | GR/2 | : Rear power window motor LH | |||
| D205 | B/6 | : Rear door lock actuator LH | |||
| D206 | W/2 | : Rear step lamp LH | |||
| D207 | BR/2 | : Rear door speaker LH (with BOSE audio system) | |||
| D208 | BR/2 | : Rear door tweeter LH | |||
| D209 | W/2 | : Rear door speaker LH (with base audio system) |
