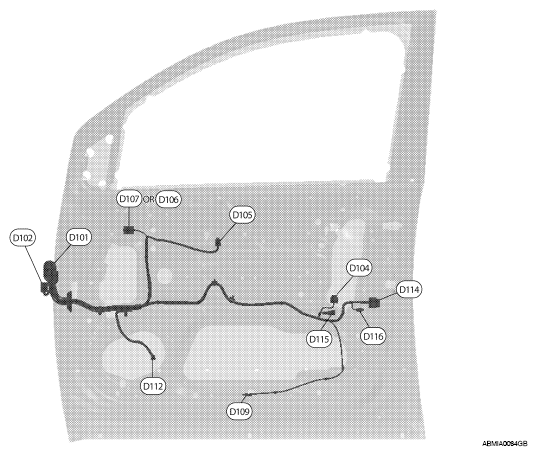

Front Door RH Harness
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| D101 | W/10 | : To M75 | D109 | W/2 | : Front step lamp RH |
| D102 | BR/20 | : To M74 | D112 | W/2 | : Front door speaker RH |
| D104 | GR/6 | : Front power window motor RH | D114 | B/6 | : Front door lock actuator RH |
| D105 | W/16 | : Power window and door lock/unlock switch RH | D115 | GR/2 | : Front outside antenna RH |
| D106 | W/6 | : Door mirror RH (without automatic drive positioner) | D116 | GR/2 | : Front door request switch RH |
| D107 | W/16 | : Door mirror RH (with automatic drive positioner) |
