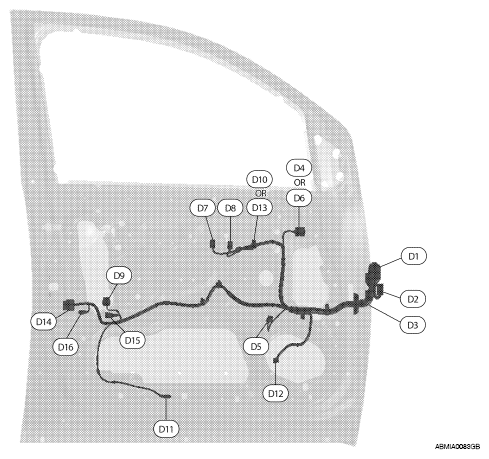

Front Door LH Harness
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| D1 | BR/24 | : To M9 | D9 | GR/6 | : Front power window motor LH |
| D2 | W/16 | : To M8 | D10 | BR/16 | : Door mirror remote control switch (with automatic drive positioner) |
| D3 | W/10 | : To M158 | D11 | W/2 | : Front step lamp LH |
| D4 | W/16 | : Door mirror LH (with automatic drive positioner) | D12 | W/2 | : Front door speaker LH |
| D5 | W/8 | : Seat memory switch | D13 | W/16 | : Door mirror remote control switch (without automatic drive positioner) |
| D6 | W/6 | : Door mirror LH (without automatic drive positioner) | D14 | B/6 | : Front door lock assembly LH |
| D7 | W/16 | : Main power window and door lock/unlock switch | D15 | GR/2 | : Front outside antenna LH |
| D8 | W/3 | : Main power window and door lock/unlock switch | D16 | GR/2 | : Front door request switch LH |
