Chassis Harness

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

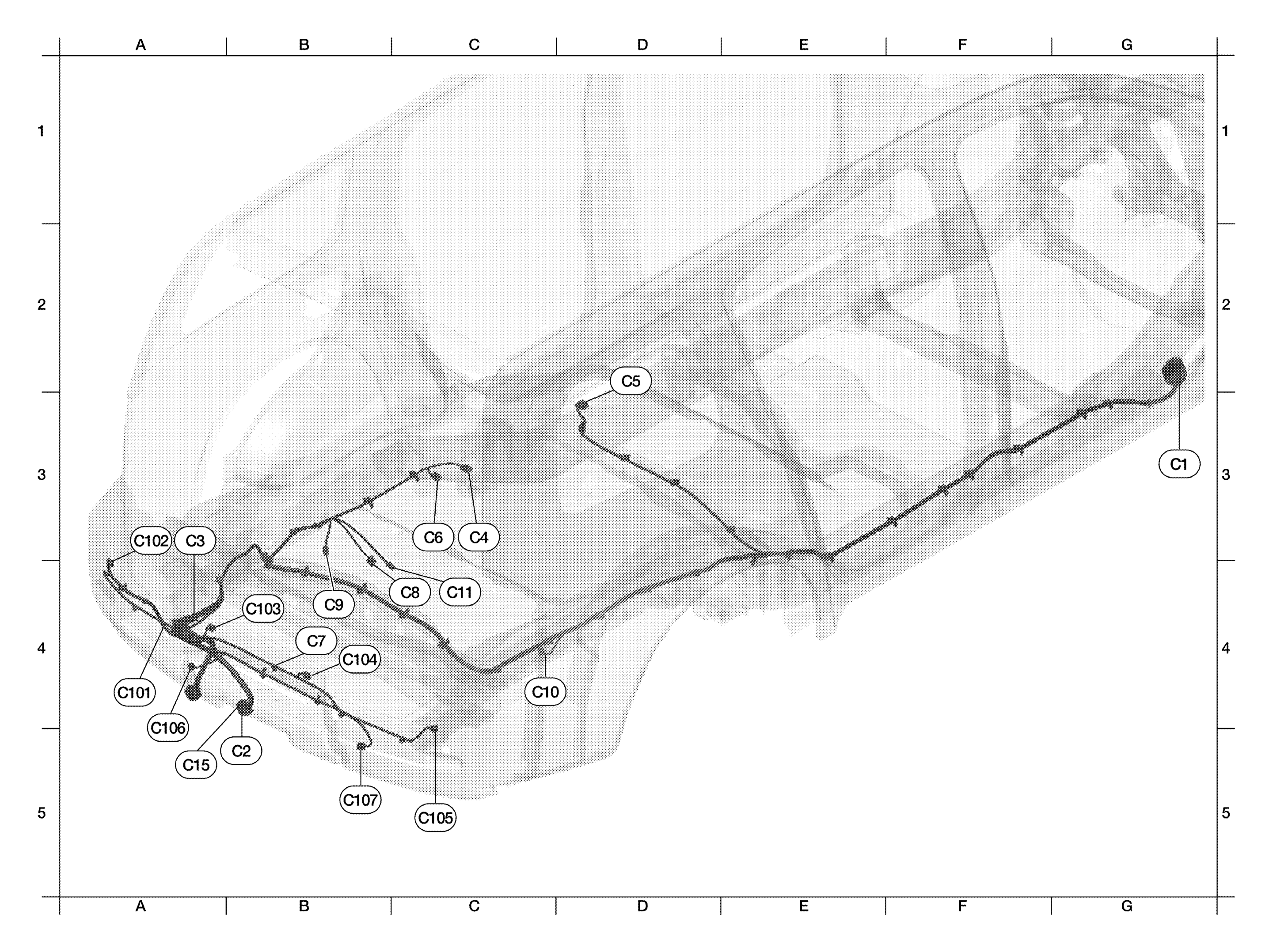

Fig 1: Chassis Harness Layout

Courtesy of NISSAN NORTH AMERICA, INC.

G2	C1	SMJ	: To E41	C4	C11	BR/2	: Rear wheel sensor LH
B5	C2	B/7	: Trailer	A5	C15	B/7	: Trailer receptacle
A3	C3	GR/8	: To C101	Rear sonar sensor sub-harness
C3	C4	GR/3	: Evap control system pressure sensor	A4	C101	GR/8	: To C3
D2	C5	GR/5	: Fuel level sensor unit and fuel pump	A3	C102	B/3	: Rear sonar sensor LH outer
C3	C6	B/2	: Evap canister vent control valve	B4	C103	B/3	: Rear sonar sensor LH inner
B4	C7	GR/2	: Rear bumper antenna	B4	C104	B/3	: Rear sonar sensor RH inner
C4	C8	B/3	: Height sensor	C5	C105	B/3	: Rear sonar sensor RH outer
B4	C9	B/4	: Suspension air compressor	A5	C106	GR/2	: License plate lamp LH
C4	C10	BR/2	: Rear wheel sensor RH	B5	C107	GR/2	: License plate lamp RH
