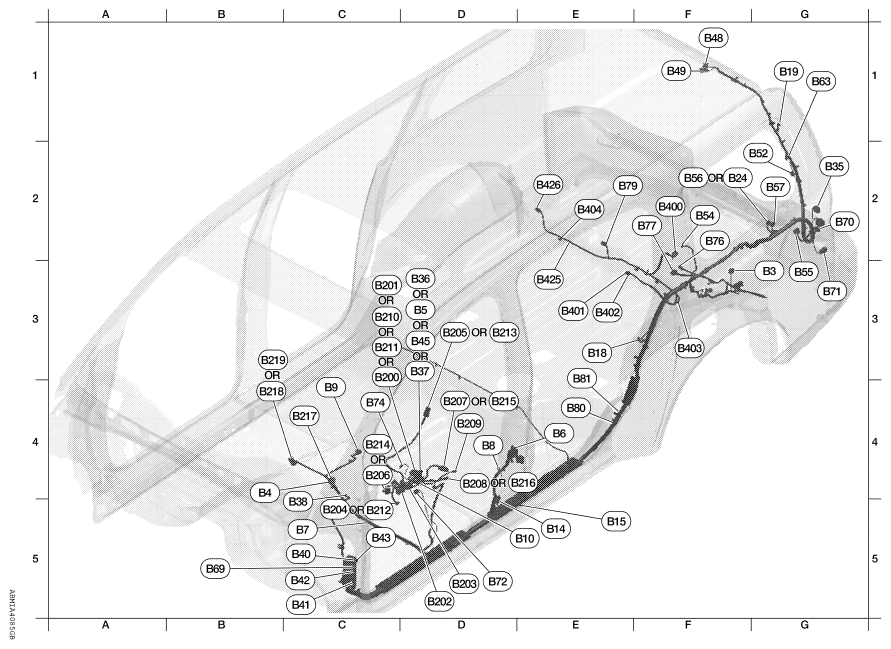

Body Harness
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| G3 | B3 | W/16 | : Suspension control unit | F2 | B76 | GR/2 | : Luggage area antenna |
| B4 | B4 | W/16 | : To B217 | F2 | B77 | W/10 | : To B400 |
| D3 | B5 | W/6 | : To B201 | E2 | B79 | W/24 | : To B125 |
| D4 | B6 | W/18 | : To D201 | E4 | B80 | W/3 | : Second row seat heater LH |
| C5 | B7 | - | : Body ground | E4 | B81 | W/3 | : Second row seat heater RH |
| D4 | B8 | W/3 | : Front door switch LH | Front seat LH harness | |||
| C4 | B9 | Y/22 | : Air bag diagnosis sensor unit | C3 | B200 | W/16 | : To B37 (with automatic drive positioner) |
| E5 | B10 | Y/2 | : Front LH side air bag module | C3 | B201 | W/6 | : To B5 |
| E5 | B14 | Y/2 | : Front LH seat belt pre-tensioner | D5 | B202 | W/32 | : Driver seat control unit |
| E5 | B15 | Y/2 | : LH side air bag (satellite) sensor | D5 | B203 | W/16 | : Driver seat control unit |
| E3 | B18 | W/3 | : Rear door switch LH | C4 | B204 | GR/5 | : Sliding motor LH (with automatic drive positioner) |
| G1 | B19 | - | : Body ground | D3 | B205 | W/4 | : Reclining motor LH (with automatic drive positioner) |
| F2 | B24 | W/16 | : Sonar control unit (with rear sonar system) | C4 | B206 | GR/5 | : Lifting motor (front) (with automatic drive positioner) |
| G2 | B35 | B/3 | : Rear combination lamp LH | D4 | B207 | GR/5 | : Lifting motor (rear) (with automatic drive positioner) |
| D3 | B36 | W/6 | : To B210 (with automatic drive positioner) | D4 | B208 | W/10 | : Power seat switch LH (with automatic drive positioner) |
| D3 | B37 | W/16 | : To B200 (with automatic drive positioner) | D4 | B209 | W/3 | : Front seat heater LH (with automatic drive positioner) |
| C4 | B38 | Y/2 | : LH side front curtain air bag module | D4 | B210 | W/6 | : To B36 (without automatic drive positioner) |
| C5 | B40 | W/24 | : To E34 | D3 | B211 | W/2 | : To B45 (without automatic drive positioner) |
| C5 | B41 | W/12 | : To E35 | C5 | B212 | GR/2 | : Sliding motor LH (without automatic drive positioner) |
| C5 | B42 | W/2 | : To E36 | D3 | B213 | W/2 | : Reclining motor LH (without automatic drive positioner) |
| C5 | B43 | W/16 | : To B111 | C4 | B214 | GR/2 | : Lifting motor (front) (without automatic drive positioner) |
| D3 | B45 | W/2 | : To B211 (without automatic drive positioner) | D4 | B215 | GR/2 | : Lifting motor (rear) (without automatic drive positioner) |
| F1 | B48 | W/18 | : To D401 | D4 | B216 | W/10 | : Power seat switch LH (without automatic drive positioner) |
| F1 | B49 | W/2 | : To D402 | C4 | B217 | W/16 | : To B4 |
| G2 | B52 | W/2 | : Rear power vent window motor LH | B4 | B218 | W/24 | : Headrest display unit (driver seat) (pre-wire) (without NAVI) |
| F2 | B54 | Y/2 | : LH side rear curtain air bag module | B3 | B219 | W/24 | : Headrest display unit (driver seat) (with NAVI) |
| G3 | B55 | W/26 | : Back door control unit | Third row power folding seat sub-harness | |||
| F2 | B56 | GR/16 | : Sonar control unit (with front and rear sonar system) | F2 | B400 | W/10 | : To B77 |
| G2 | B57 | GR/10 | : Sonar control unit (with front and rear sonar system) | E3 | B401 | GR/12 | : Third row power folding seat control unit |
| G1 | B63 | W/6 | : Back door close switch | E3 | B402 | W/10 | : Third row power folding seat control unit |
| B5 | B69 | SMJ | : To M40 | E3 | B403 | GR/4 | : Third row power folding seat motor LH |
| G2 | B70 | B/3 | : Rear combination lamp LH | E2 | B404 | W/4 | : To B425 |
| G5 | B71 | B/2 | : Back-up lamp LH | E2 | B425 | W/4 | : To B404 |
| D5 | B72 | BR/6 | : Subwoofer | E3 | B426 | GR/4 | : Third row power folding seat motor RH |
| C4 | B74 | Y/4 | : Seat belt buckle pre-tensioner assembly LH | ||||
