Section 872 (Power Supply, Ground & Circuit Elements)
>>
DTC/Circuit Diagnosis
>>
Ground
>>
Ground Distribution
>>
Body No. 2 Harness
Body No. 2 Harness
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

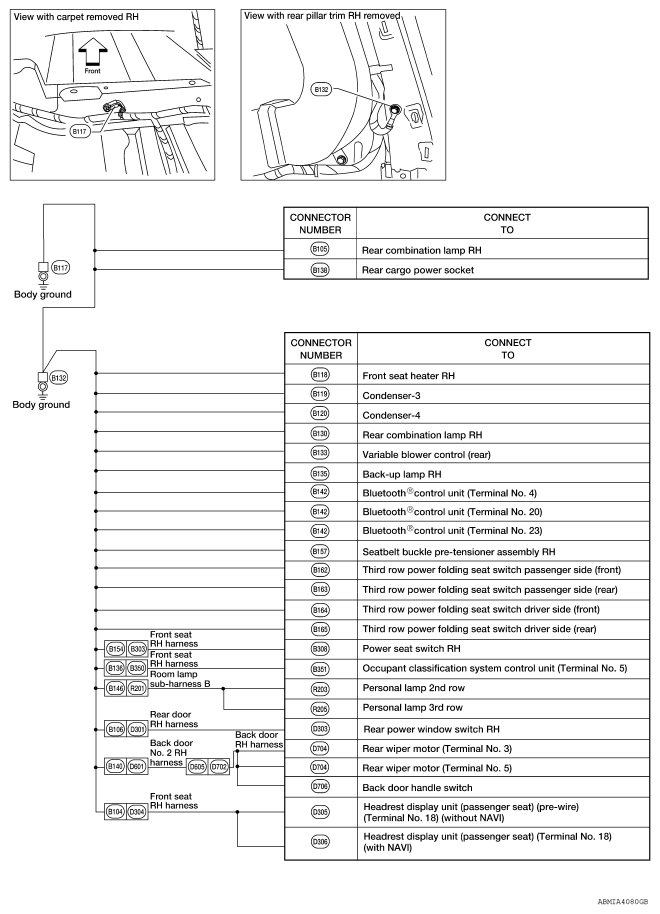

Fig 1: Body No. 2 Harness Ground Distribution Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
