Body Harness

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

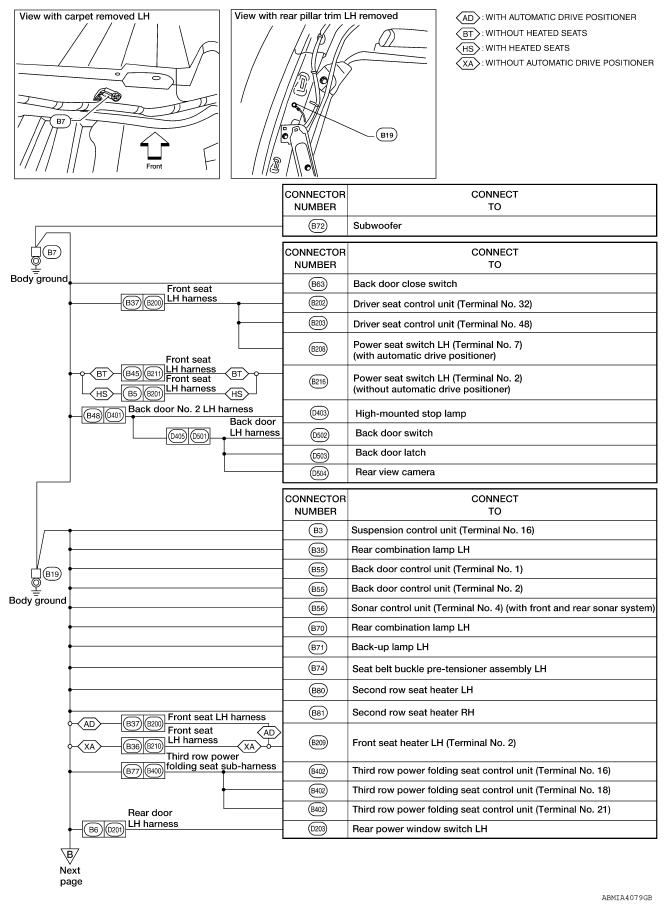

Fig 1: Body Harness Ground Distribution Diagram (1 Of 2)
G08693381Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Body Harness Ground Distribution Diagram (2 Of 2)
G08693382Courtesy of NISSAN NORTH AMERICA, INC.
