Section 872 (Power Supply, Ground & Circuit Elements)
>>
DTC/Circuit Diagnosis
>>
Fuse Block - Junction Box (J/B)
>>
Terminal Arrangement
Terminal Arrangement
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

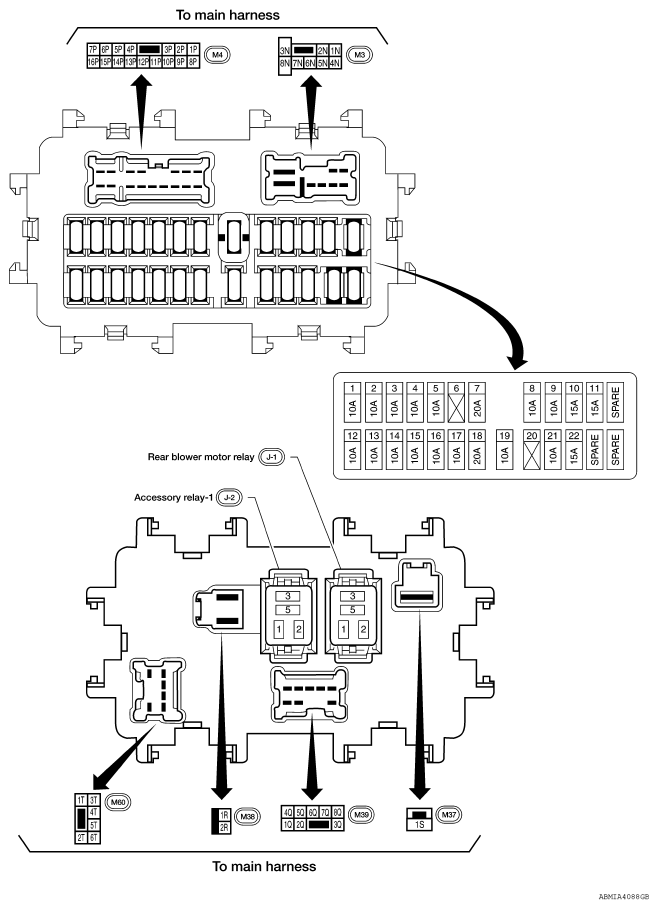

Fig 1: Fuse Block - Junction Box Terminal Arrangement
Courtesy of NISSAN NORTH AMERICA, INC.
