Garage Jack and Safety Stand

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.

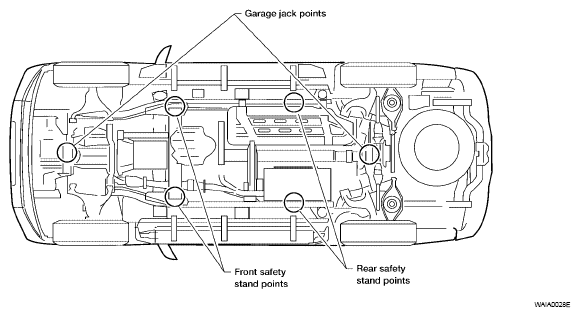

Fig 1: Identifying Garage Jack, Front And Rear Safety Stand Points
G04899607Courtesy of NISSAN NORTH AMERICA, INC.
