2-Pole Lift

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
  • When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.

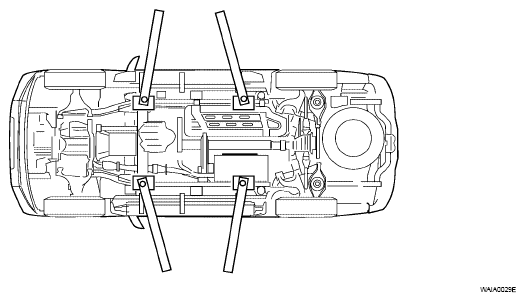

Fig 1: Identifying Vehicle Lift Arm Positions
G04899608Courtesy of NISSAN NORTH AMERICA, INC.
