Key to Symbols Signifying Measurements or Procedures

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

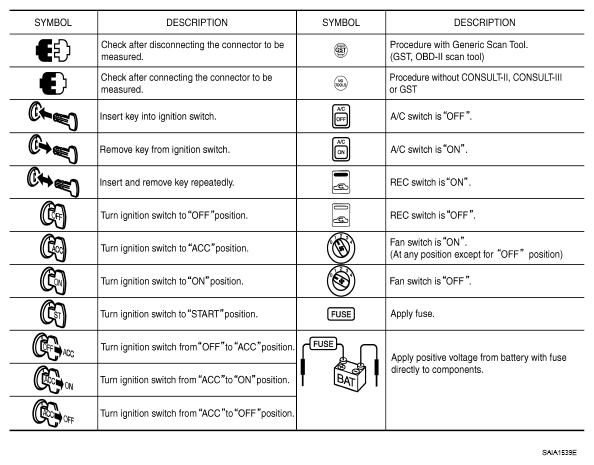

Fig 1: Symbols Description Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

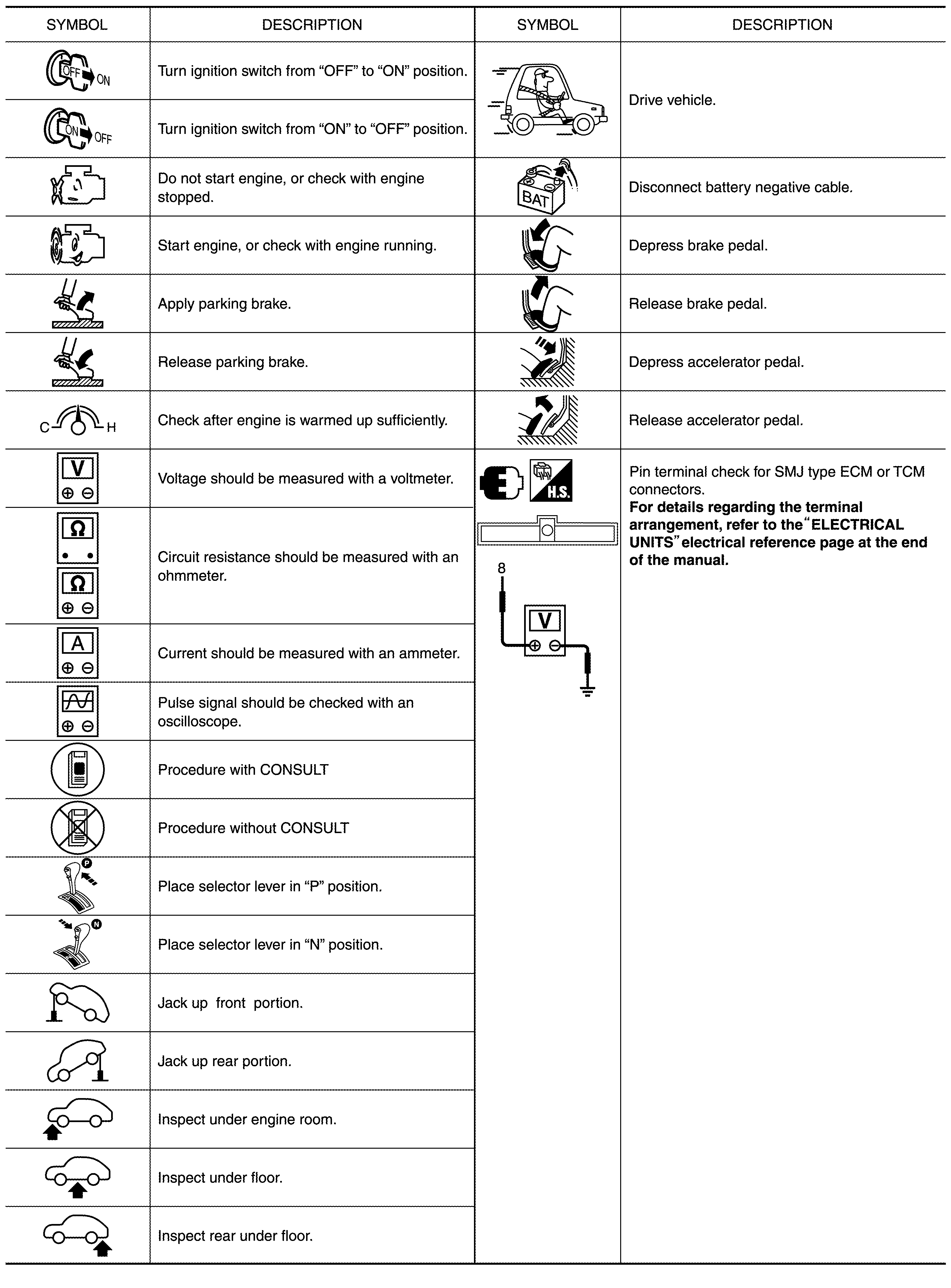

Fig 2: Symbols Description Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
