How to Follow Test Groups in Trouble Diagnosis

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

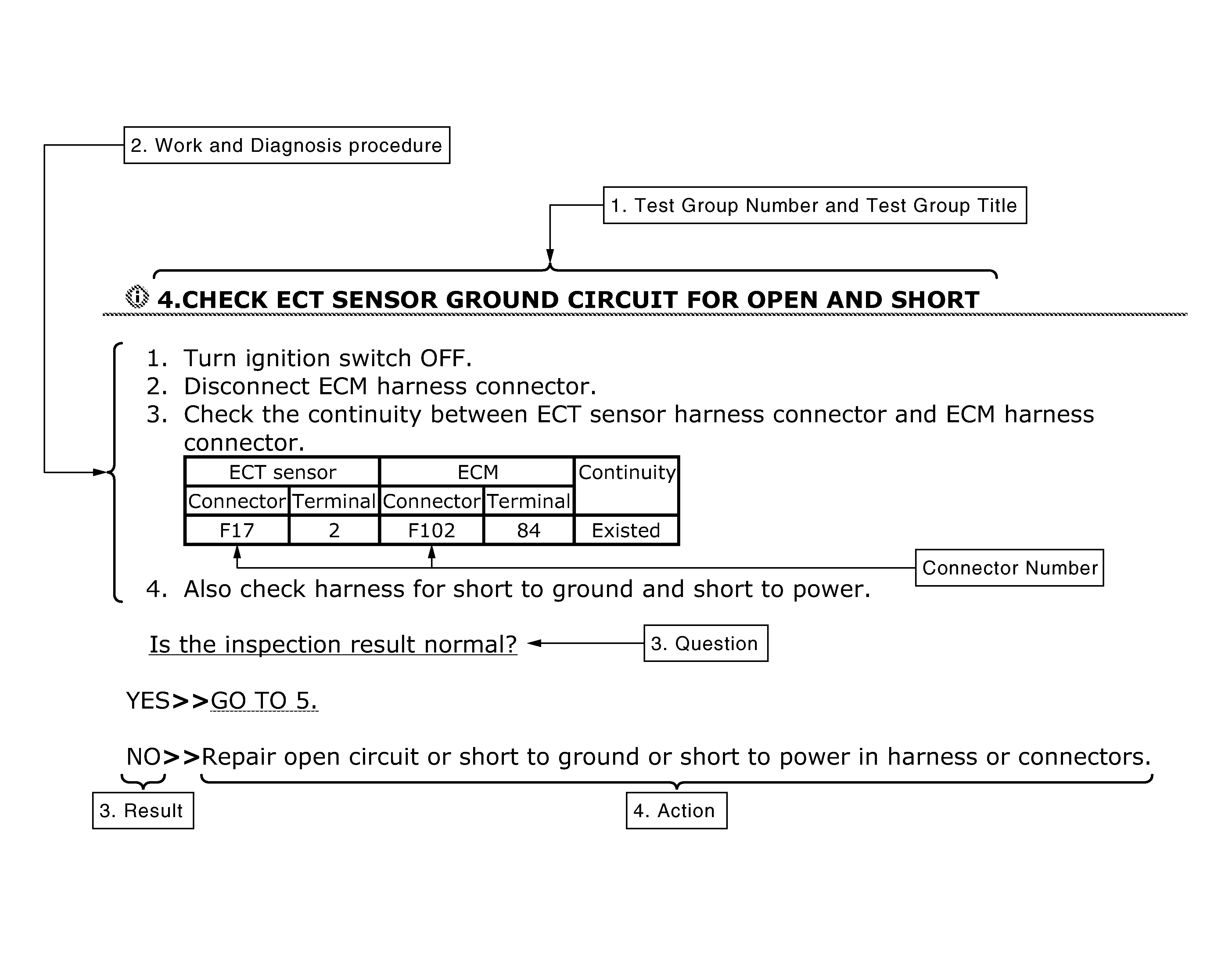

Fig 1: Trouble Diagnosis Procedure Chart

Courtesy of NISSAN NORTH AMERICA, INC.

Test group number and test group title
- Test group number and test group title are shown in the upper portion of each test group.
Work and diagnosis procedure
- Start to diagnose a problem using procedures indicated in enclosed test groups.
Questions and results
- Questions and required results are indicated in test group.
Action
- Next action for each test group is indicated based on result of each question.
