Roof Headlining ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

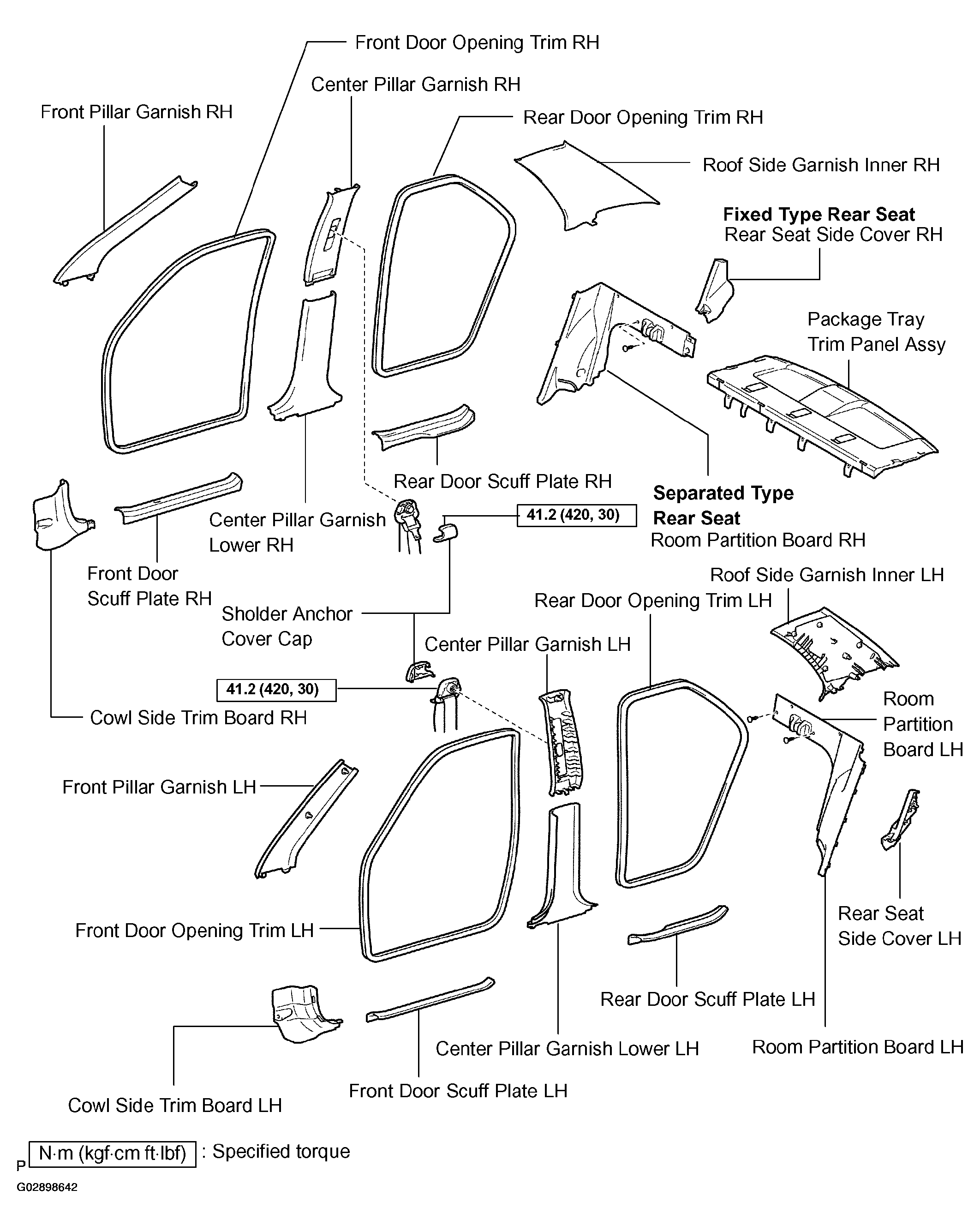

Fig 1: Identifying Roof Headlining Assy Components
G02898642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

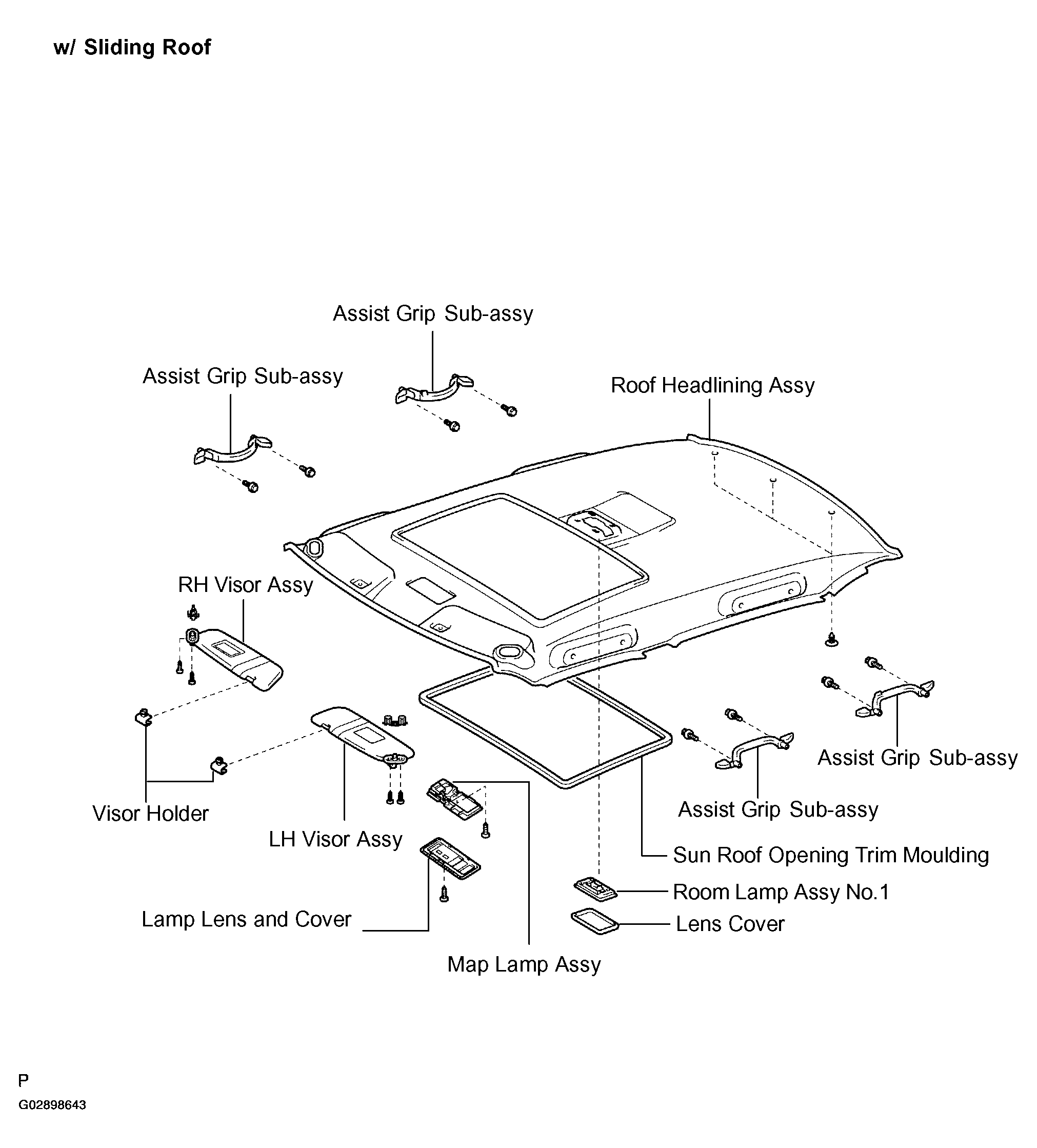

Fig 2: Exploded View Of Roof Headlining Assy Components (1 of 2)
G02898643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

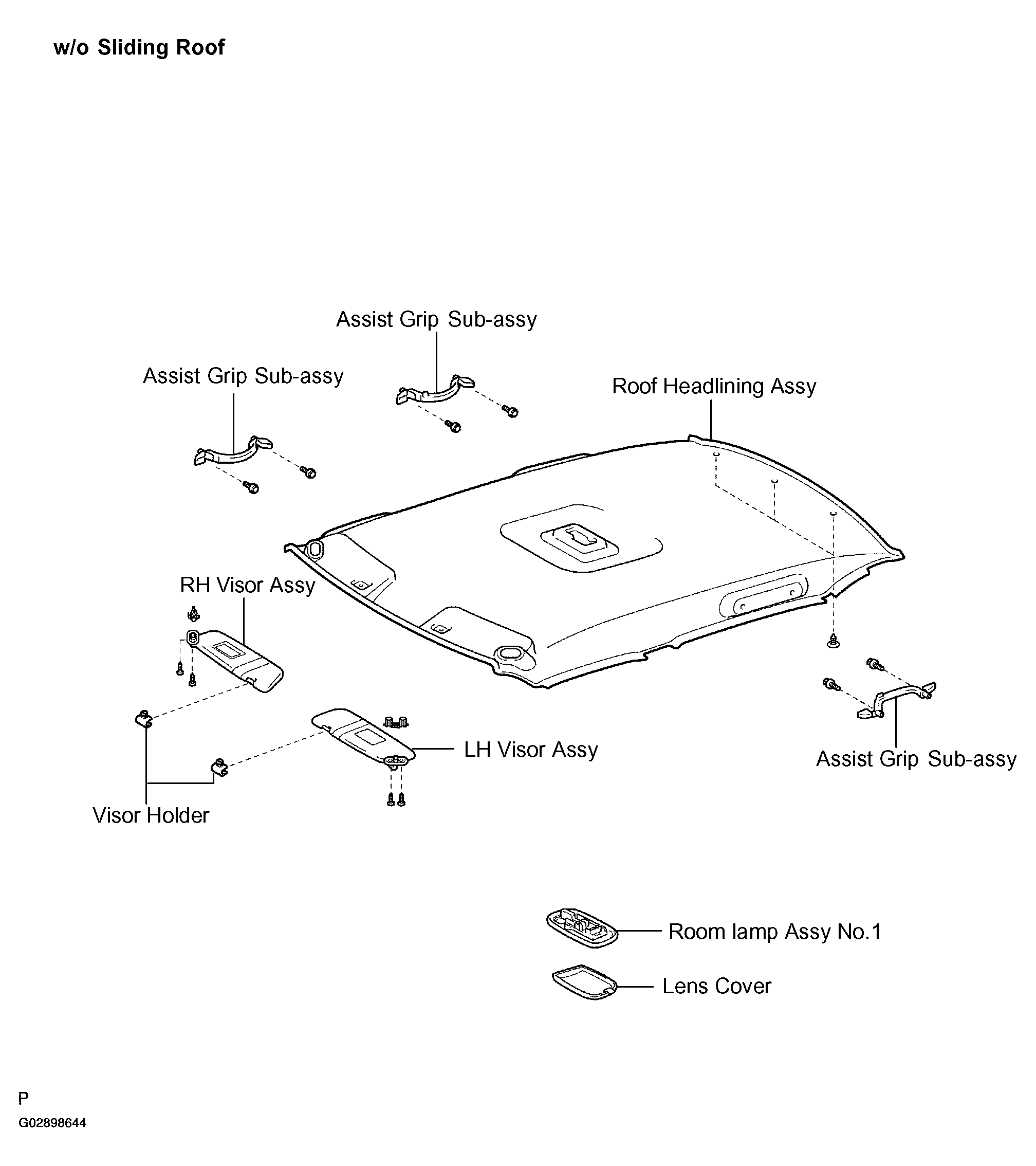

Fig 3: Exploded View Of Roof Headlining Assy Components (2 of 2)
G02898644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
