Roof Drip Side Finish Moulding Center LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. REMOVE ROOF DRIP SIDE FINISH MOULDING CENTER LH
   1. Apply protective tape onto the circumference of the moulding for protection.
   2. Using a remover for the roof moulding, release the engagements of the clips both in the front and rear ends of the moulding. Then remove the moulding.
   NOTE:

   • Do not remove the clips.
   • If clips are damaged during removal or removed accidentally, replace them.

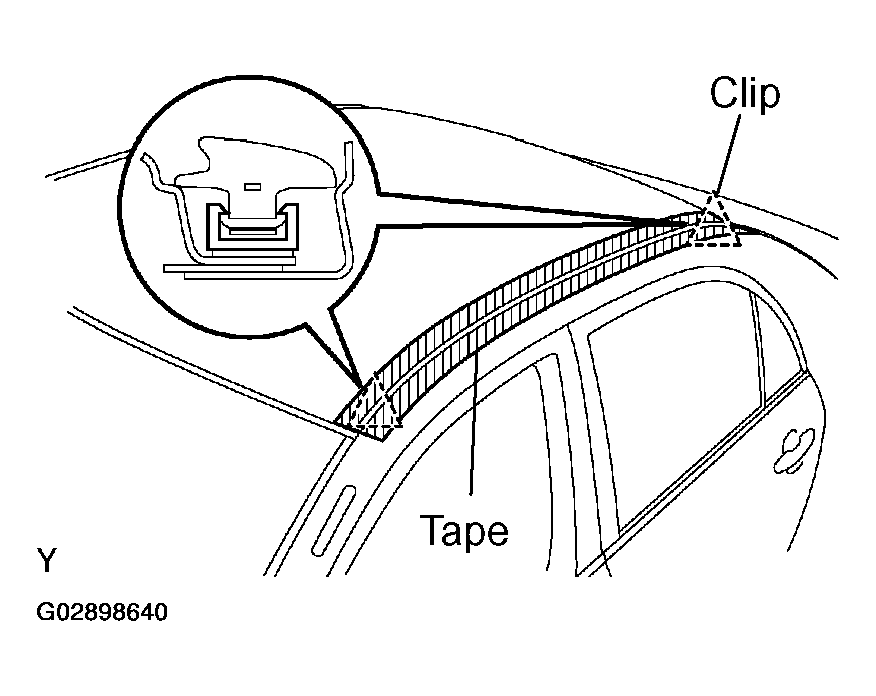

   Fig 1: Removing Roof Drip Side Finish Moulding Center LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP NO.1
   NOTE: Step 2 should be performed only when replacing the clips.
   1. Remove the double-sided tape that remains on the mounting surface of the body, and then clean the surface with white gasoline.
   2. Using a heat light, heat the clip installation surfaces of the body.

      Heating temperature:

      HEATING TEMPERATURE



      Item	Temperature
      Body	40 to 60°C (104 to 140°F)
      Moulding	20 to 30°C (68 to 86°F)

      NOTE: Do not heat the body and moulding excessively.
   3. Set new clips in the positions as shown in the illustration, and press-fit those clips by hand to install them.

      HINT:

      Clips for the roof drip side finish moulding are supply parts.

   4. After press-fitting the clips, wait at last 30 minutes. Then install the moulding.

   HINT:

   • Initial hardening time: 30 minutes
   • Prefect hardening time: 24 hours
