Rear Door Belt Moulding ASSY LH: Replacement
WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.
- REMOVE REAR ARMREST ASSY LH (See OVERHAUL )
- REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (W/ POWER WINDOW) (See OVERHAUL )
- REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW) (See OVERHAUL )
- REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL )
- REMOVE REAR DOOR BELT MOULDING ASSY LH

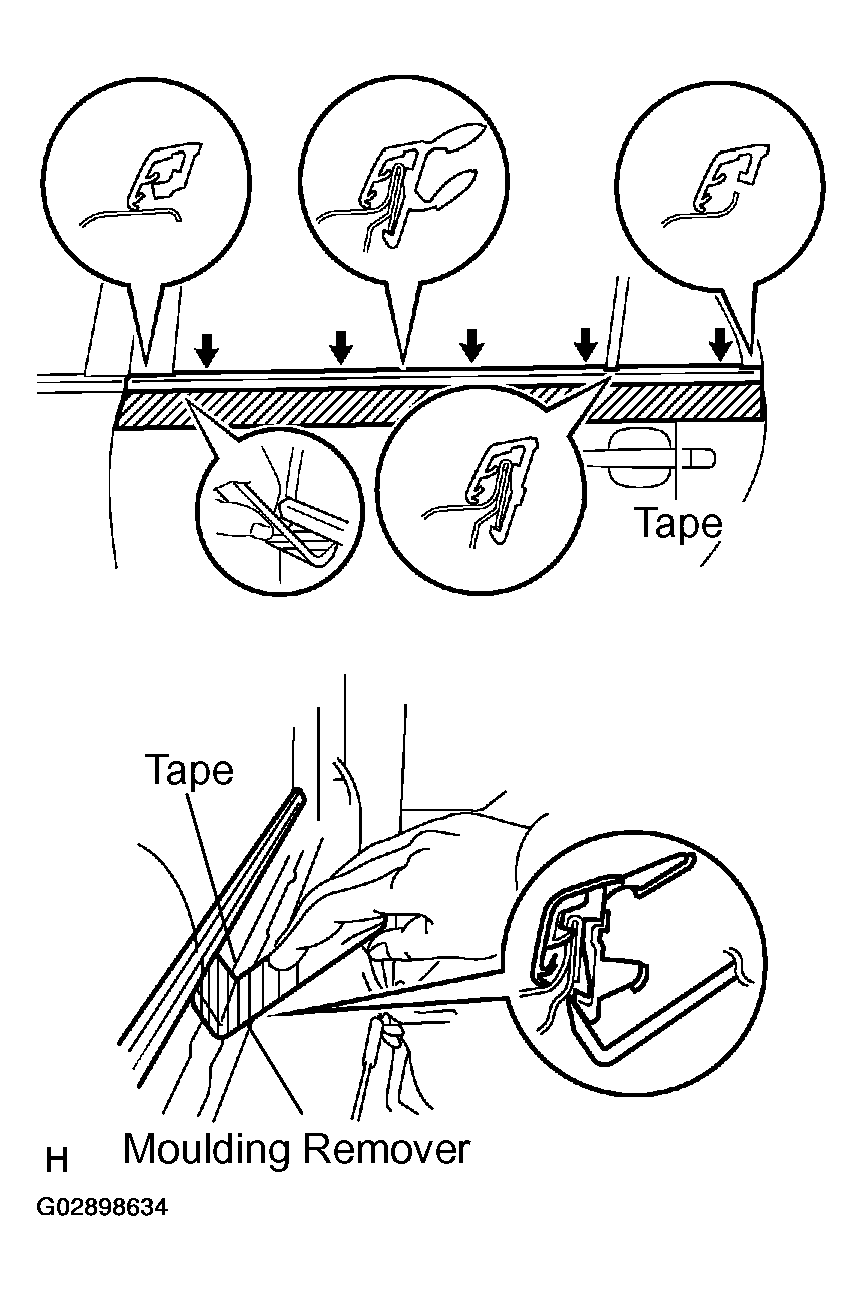

- Put protective tape under the weatherstrip.
- Using a moulding remover, pry out the weatherstrip as shown in the illustration.
HINT:
Tape the moulding remover tip before use.
