Rear Door: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

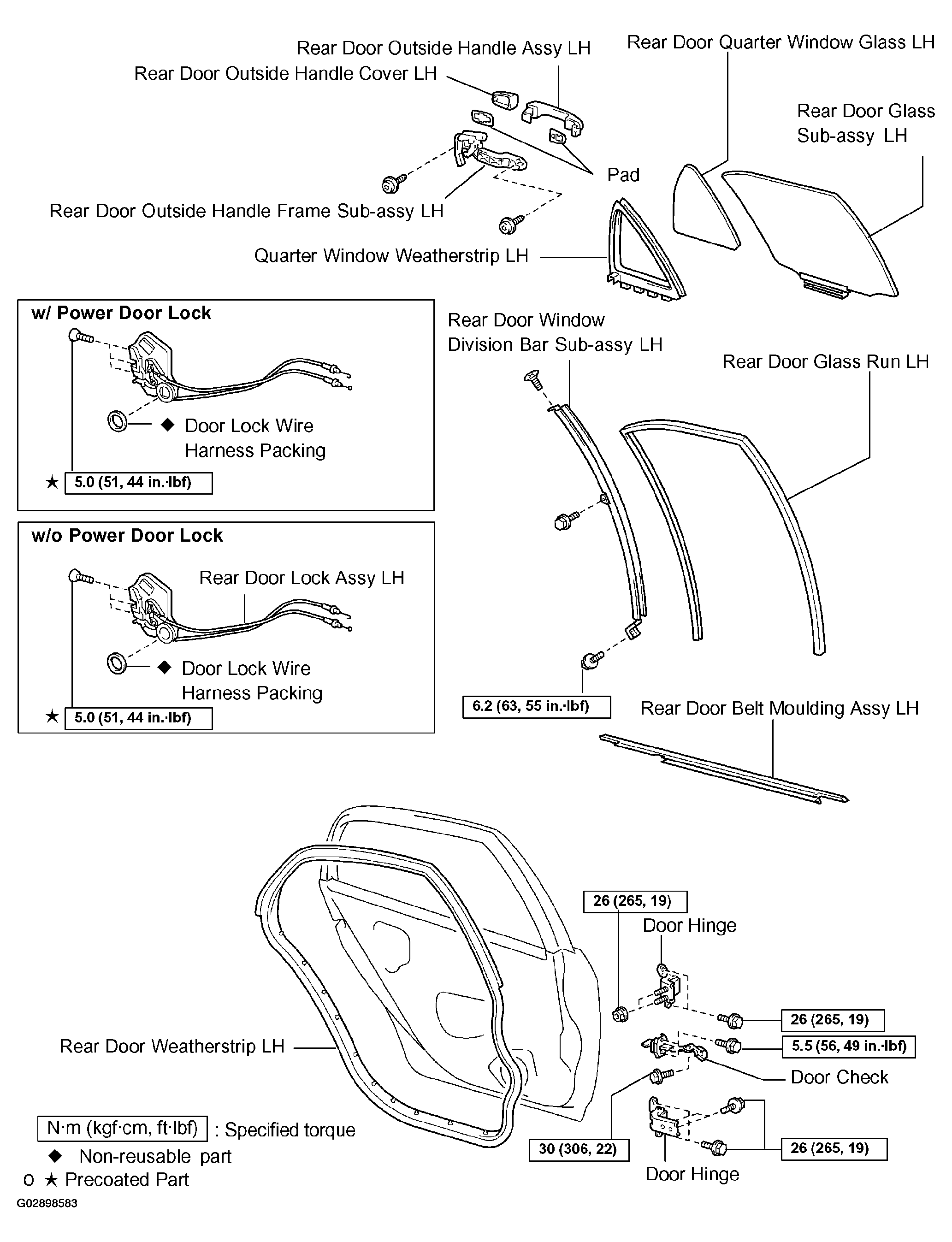

Fig 1: Identifying Rear Door Components
G02898583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

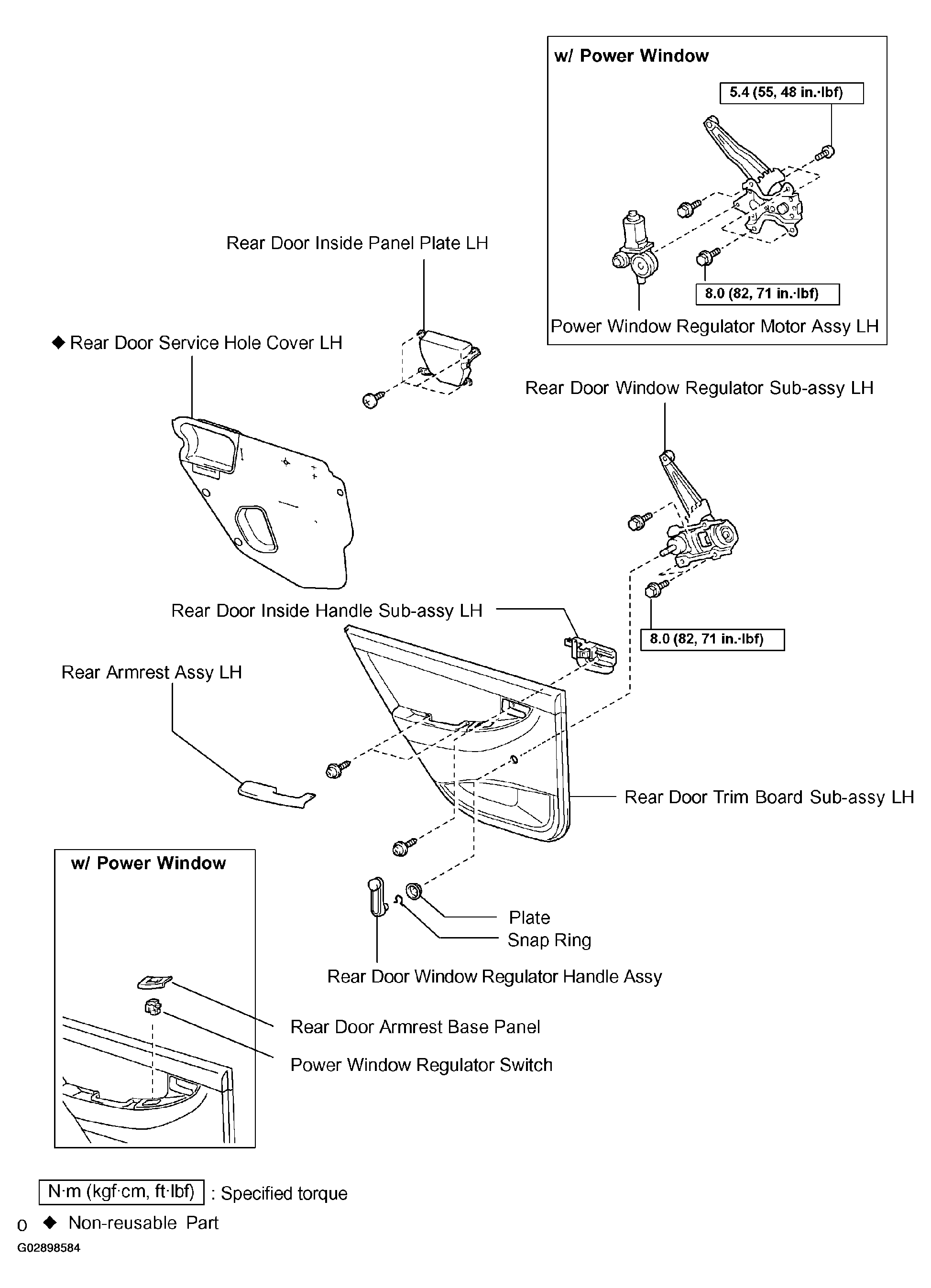

Fig 2: Exploded View Of Rear Door Components
G02898584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
