Front Door: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

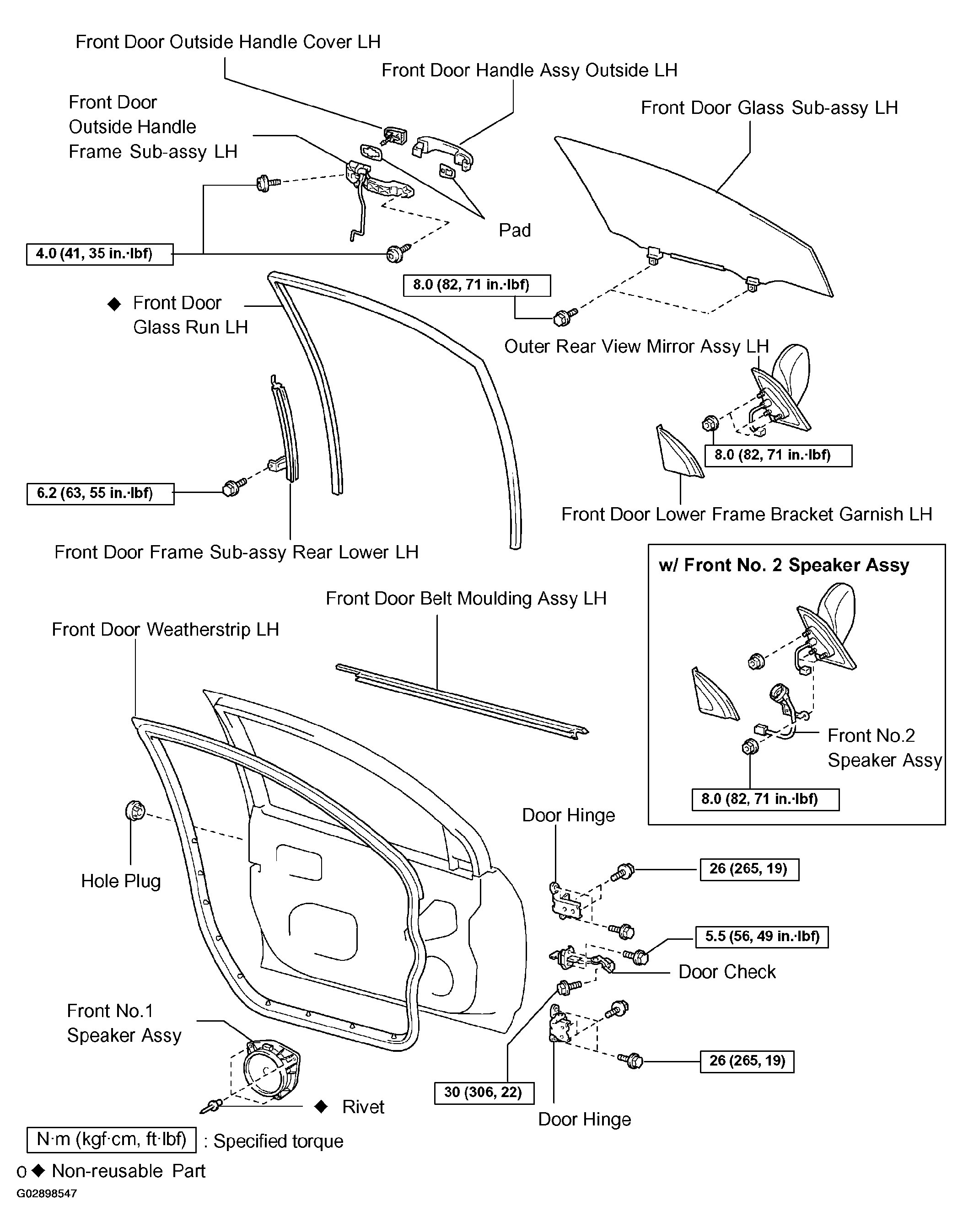

Fig 1: Identifying Front Door Components
G02898547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

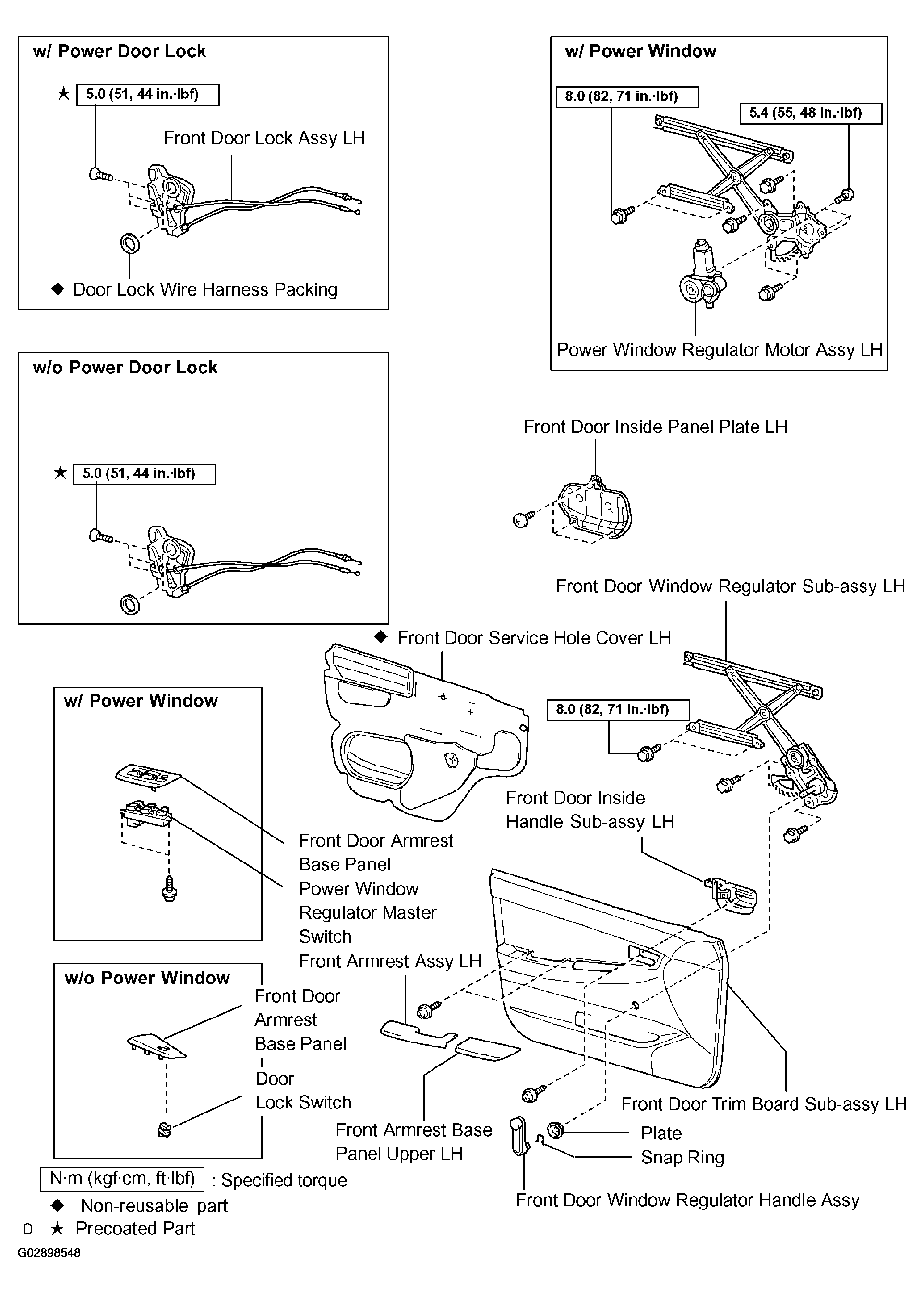

Fig 2: Identifying Front Door Components
G02898548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
