Front Door: Adjustment

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In the RH side, work in the same procedure as in the LH side.
Since the centering bolt is used as a door side hinge bolt, the door hinge cannot be adjusted with it on. Substitute the bolt with washer for the centering bolt.

Fig 1: Identifying Standard Bolt

INSPECT FRONT DOOR PANEL SUB-ASSY LH
1. Check that the clearance is within the standard value.

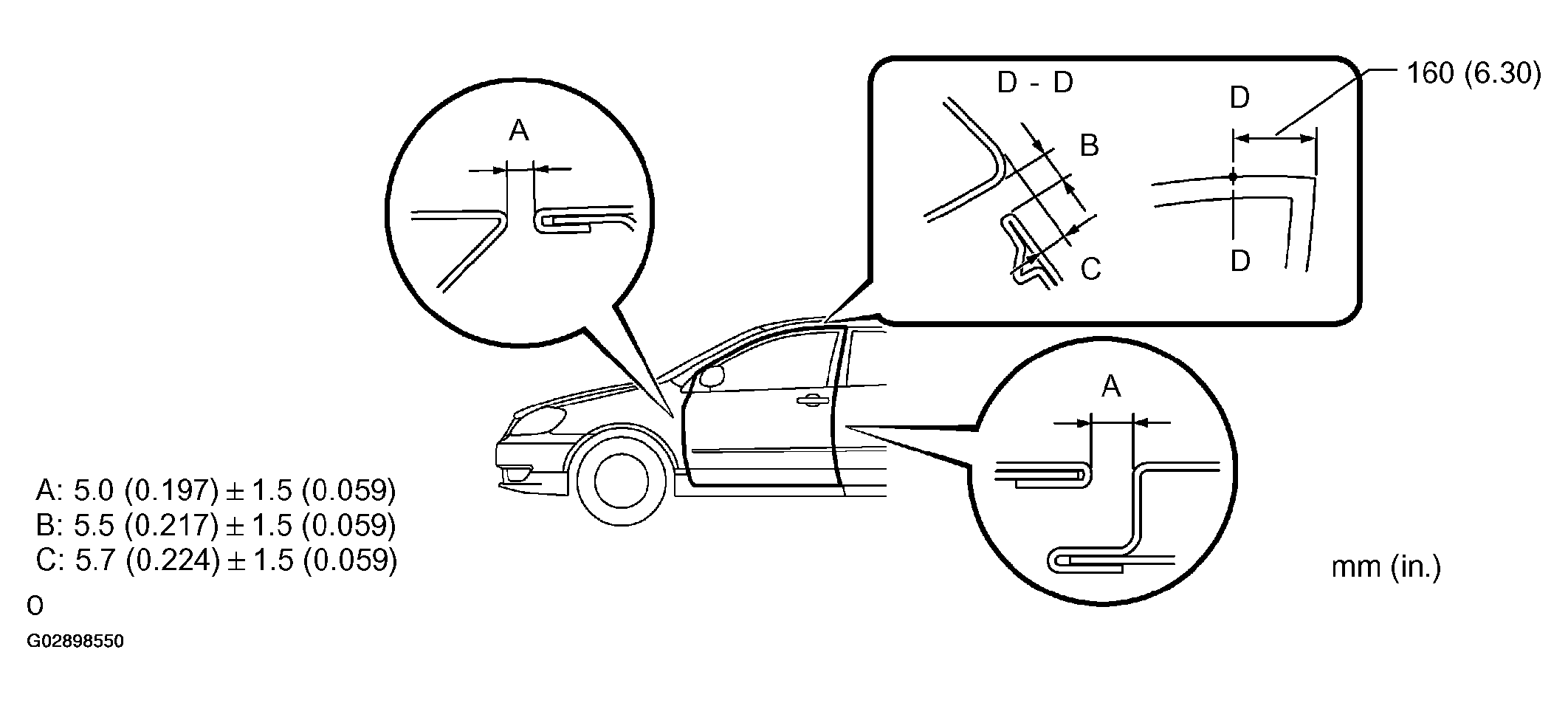

Fig 2: Identifying Front Door Panel Sub-Assy. LH Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST FRONT DOOR PANEL SUB-ASSY LH
1. Using SST, adjust the door by loosening the body side hinge bolts.
  SST 09812-00010

  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 3: Identifying Front Door Panel Hinge Belts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the door by loosening the door side hinge bolts.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 4: Adjusting Door Side Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a plastic hammer.
4. Tighten the striker mounting screws again.
  Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
Fig 5: Adjusting Striker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
