Section 516 (Hood): Hood: Adjustment

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Since the centering bolt is used as a hood hinge and hood lock set bolt, the hood and hood lock can not be adjusted with it on. Substitute a bolt with washer for the centering bolt.

Fig 1: Identifying Centering And Standard Bolt

INSPECT HOOD SUB-ASSY
1. Check that the clearance is within the standard value.

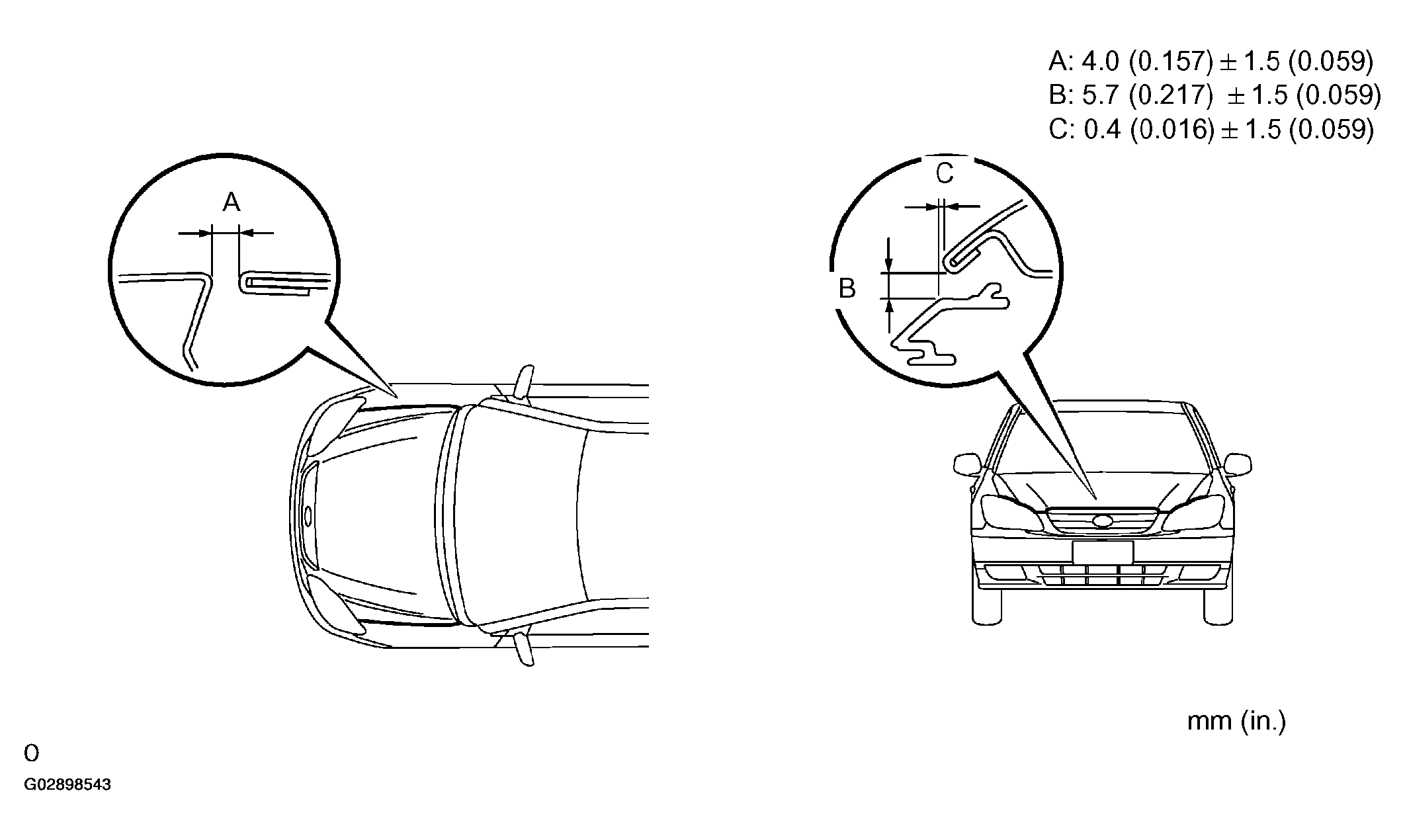

Fig 2: Checking Clearance Of Hood
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD SUB-ASSY
1. Adjust the hood by loosening the hood side hinge bolts.
  Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

  Fig 3: Identifying Hood Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the hood by turning the cushions.

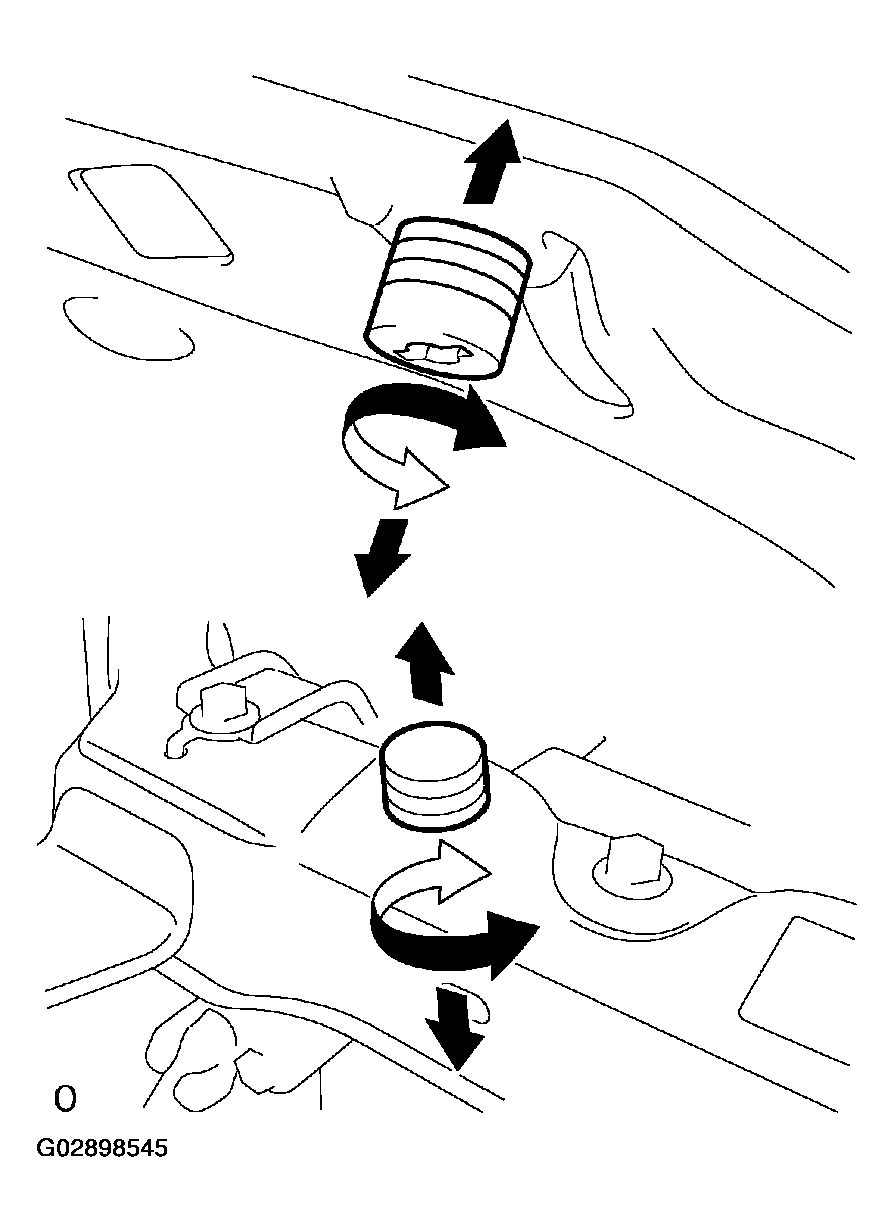

  Fig 4: Identifying Hood Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the lock by loosening the 3 bolts.
  Torque: 7.0 N.m (82 kgf.cm, 71 in..lbf)
Fig 5: Adjusting Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
