Power Door Lock Control System: Inspection

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT DRIVER'S DOOR LOCK
    1. Inspect the door lock motor operation.

      Standard:

      MEASURING CONDITION

      Measuring condition Operation
      Battery positive (+) Terminal - 4
      Battery negative (-) Terminal - 1      		 Lock
      Battery positive (+) Terminal - 1
      Battery negative (-) Terminal - 4      		 unlock

      If the result is not as specified, replace the door lock assembly.

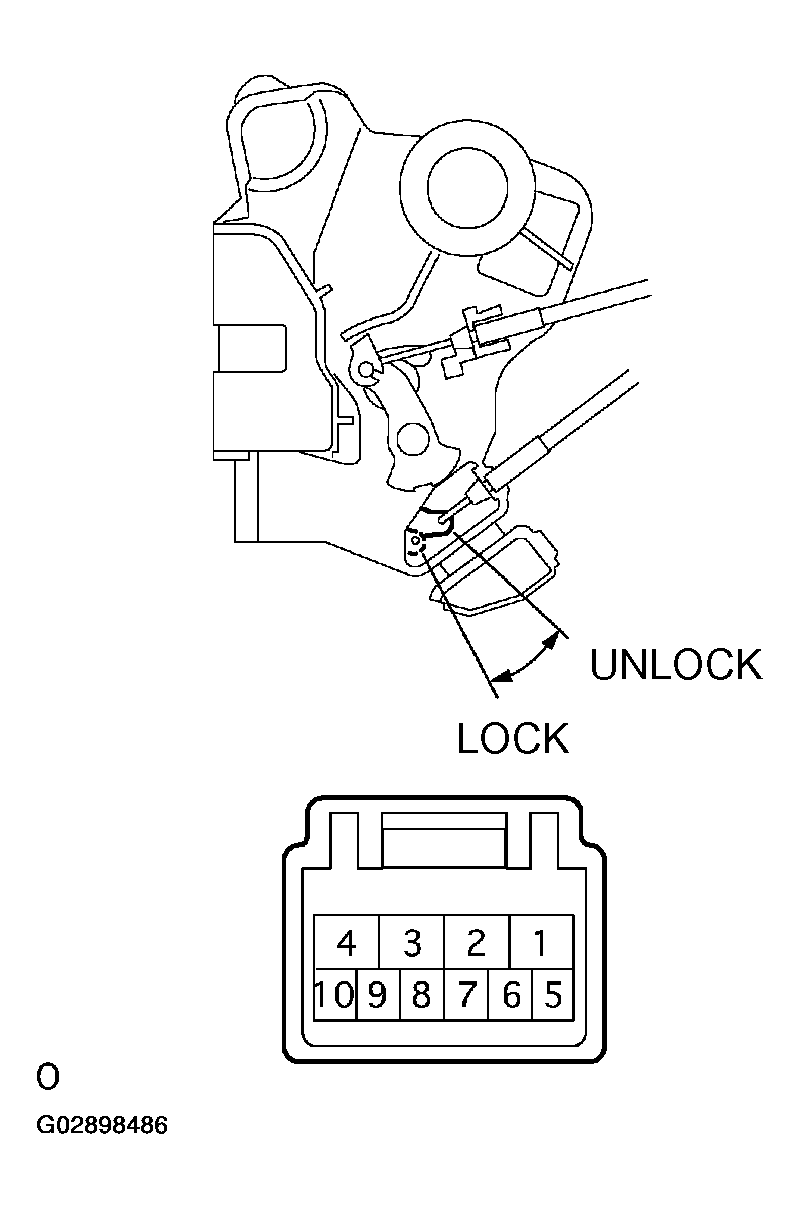

      Fig 1: Inspecting Driver'S Door Lock
      G02898486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the door lock and unlock switch continuity.

      Standard:

      SPECIFIED CONDITION

      Door lock position Terminal No. Specified condition
      Lock 7 <--> 9 Continuity
      OFF - -
      Unlock 7 <--> 10 Continuity

      If the result is not as specified, replace the door lock assembly.

    3. Inspect the position switch continuity.

      Standard:

      SPECIFIED CONDITION

      Door lock position Terminal No. Specified condition
      Lock 7 <--> 8 No continuity
      OFF - -
      Unlock 7 <--> 8 Continuity

      If the result is not as specified, replace the door lock assembly.

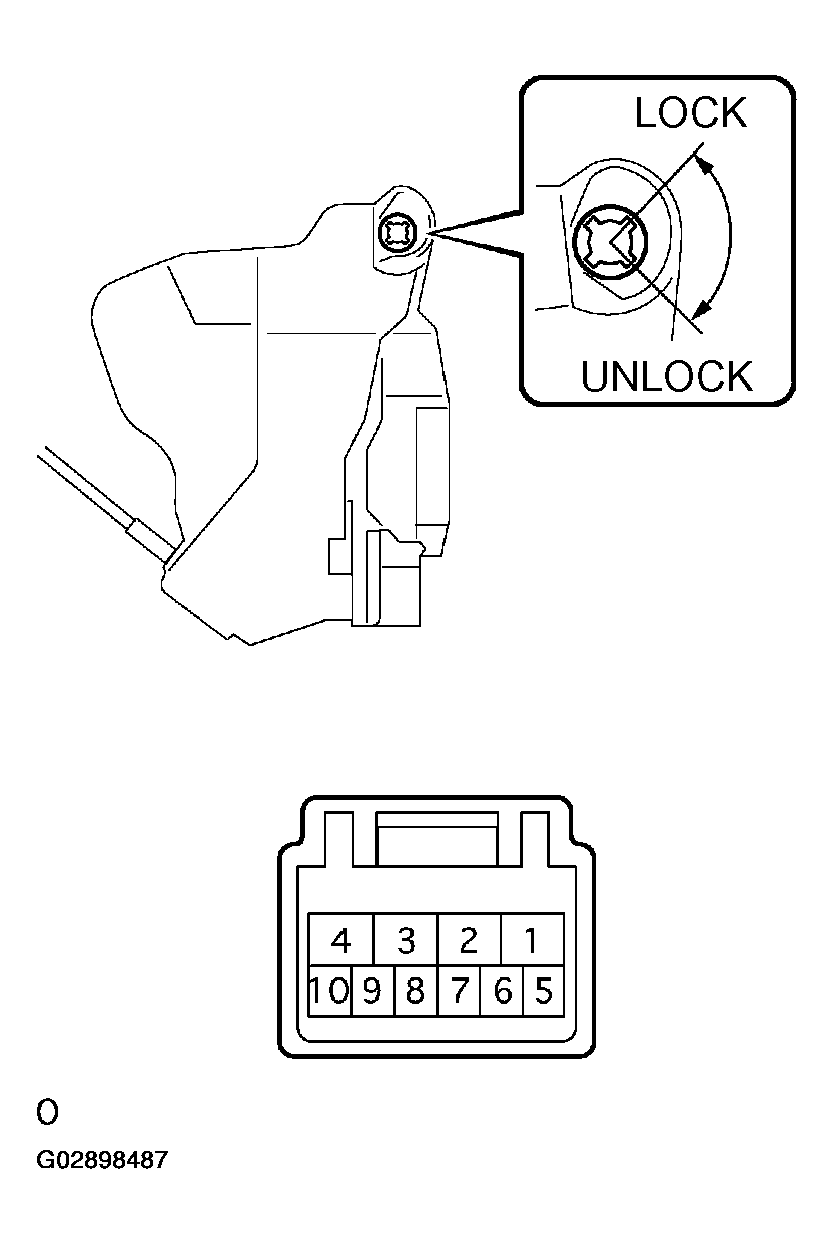

    Fig 2: Inspecting Door Lock And Unlock Switch
    G02898487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT PASSENGER'S DOOR LOCK
    1. Inspect the door lock motor operation.

      Standard:

      MEASURING CONDITION

      Measuring condition Operation
      Battery positive (+) Terminal - 4
      Battery negative (-) Terminal - 1      		 Lock
      Battery positive (+) Terminal - 1
      Battery negative (-) Terminal - 4      		 unlock

      If the result is not as specified, replace the door lock assembly.

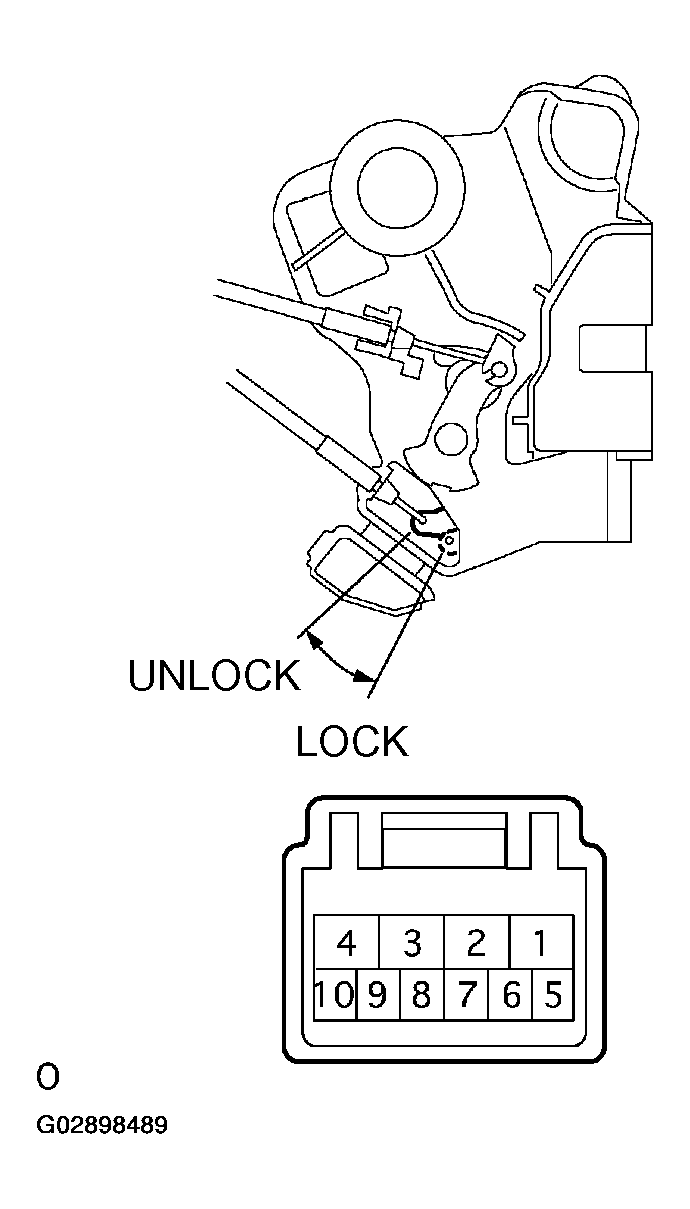

      Fig 3: Inspecting Passenger'S Door Lock
      G02898489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the door lock and unlock switch continuity.

      Standard:

      SPECIFIED CONDITION

      Door lock position Terminal No. Specified condition
      Lock 6 <--> 8 Continuity
      OFF - -
      Unlock 5 <--> 8 Continuity

      If the result is not as specified, replace the door lock assembly.

    3. Inspect the position switch continuity.

      Standard:

      SPECIFIED CONDITION

      Door lock position Terminal No. Specified condition
      Lock 7 <--> 8 No continuity
      OFF - -
      Unlock 7 <-->8 Continuity

      If the result is not as specified, replace the door lock assembly.

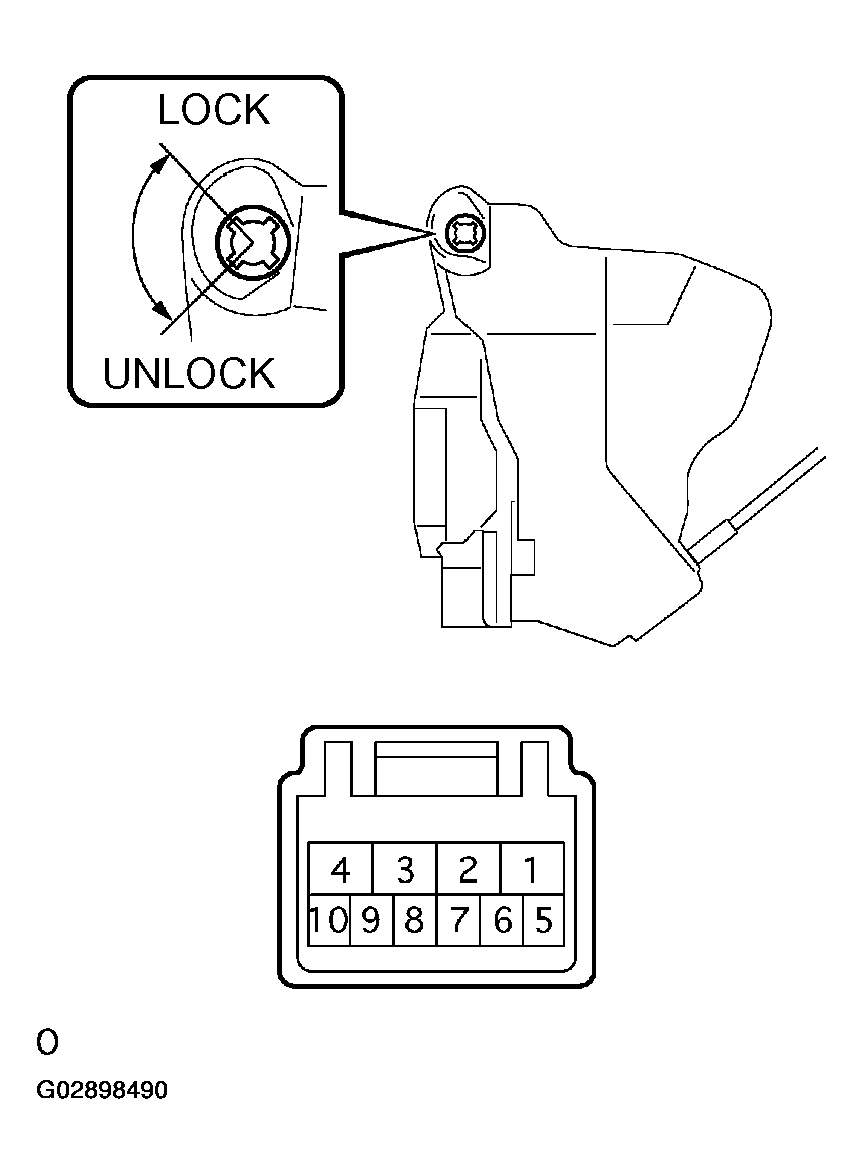

    Fig 4: Inspecting Door Lock And Unlock Switch
    G02898490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT REAR DOOR LOCK LH
    1. Inspect the door lock motor operation.

      Standard:

      MEASURING CONDITION

      Measuring condition Operation
      Battery positive (+) Terminal - 4
      Battery negative (-) Terminal - 1      		 Lock
      Battery positive (+) Terminal - 1
      Battery negative (-) Terminal - 4      		 unlock

      If the result is not as specified, replace the door lock assembly.

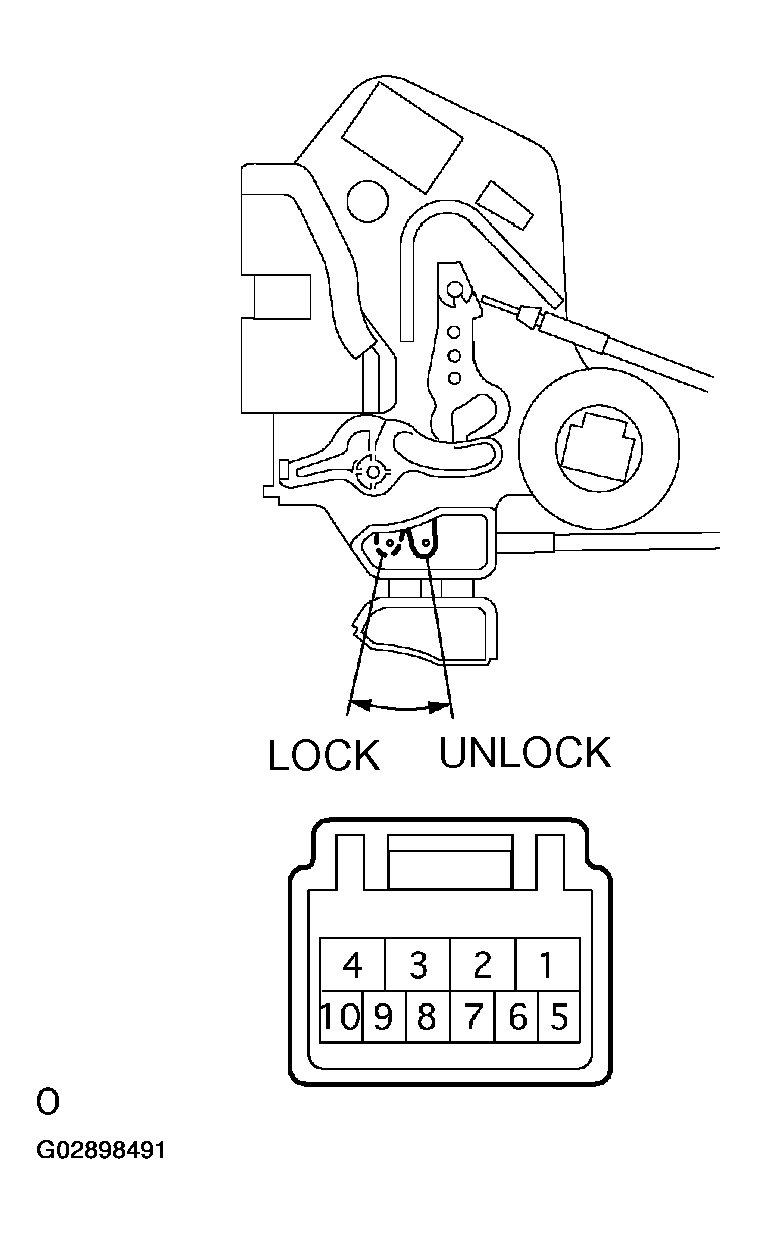

      2. Fig 5: Inspecting Rear Door Lock LH
      G02898491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT REAR DOOR LOCK RH
    1. Inspect the door lock motor operation.

      Standard:

      MEASURING CONDITION

      Measuring condition Operation
      Battery positive (+) Terminal - 4
      Battery negative (-) Terminal - 1      		 Lock
      Battery positive (+) Terminal - 1
      Battery negative (-) Terminal - 4      		 unlock

      If the result is not as specified, replace the door lock assembly.

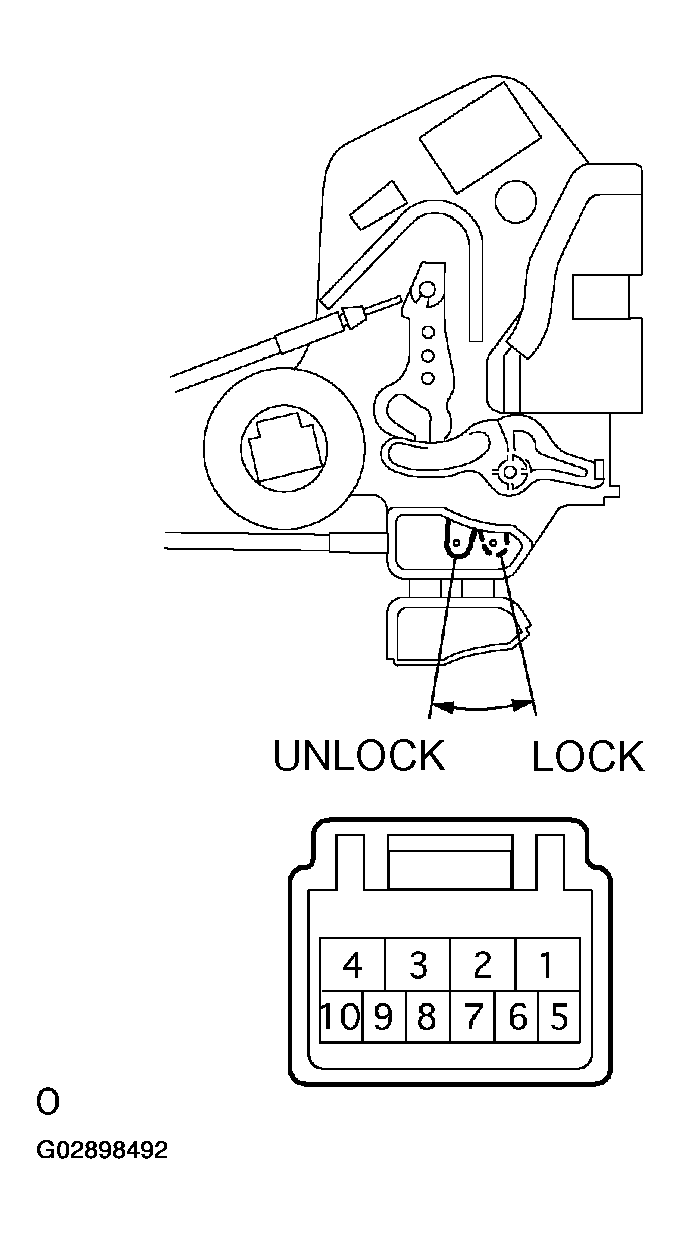

      Fig 6: Inspecting Rear Door Lock RH
      G02898492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
    1. w/ Power window:

      Inspect the door lock control switch continuity.

      Standard:

      SPECIFIED CONDITION

      Switch position Terminal No. Specified condition
      Lock 1 <--> 3 <--> 5 Continuity
      OFF - No continuity
      Unlock 1 <--> 3 <--> 8 Continuity

      If the result is not as specified, replace the switch.

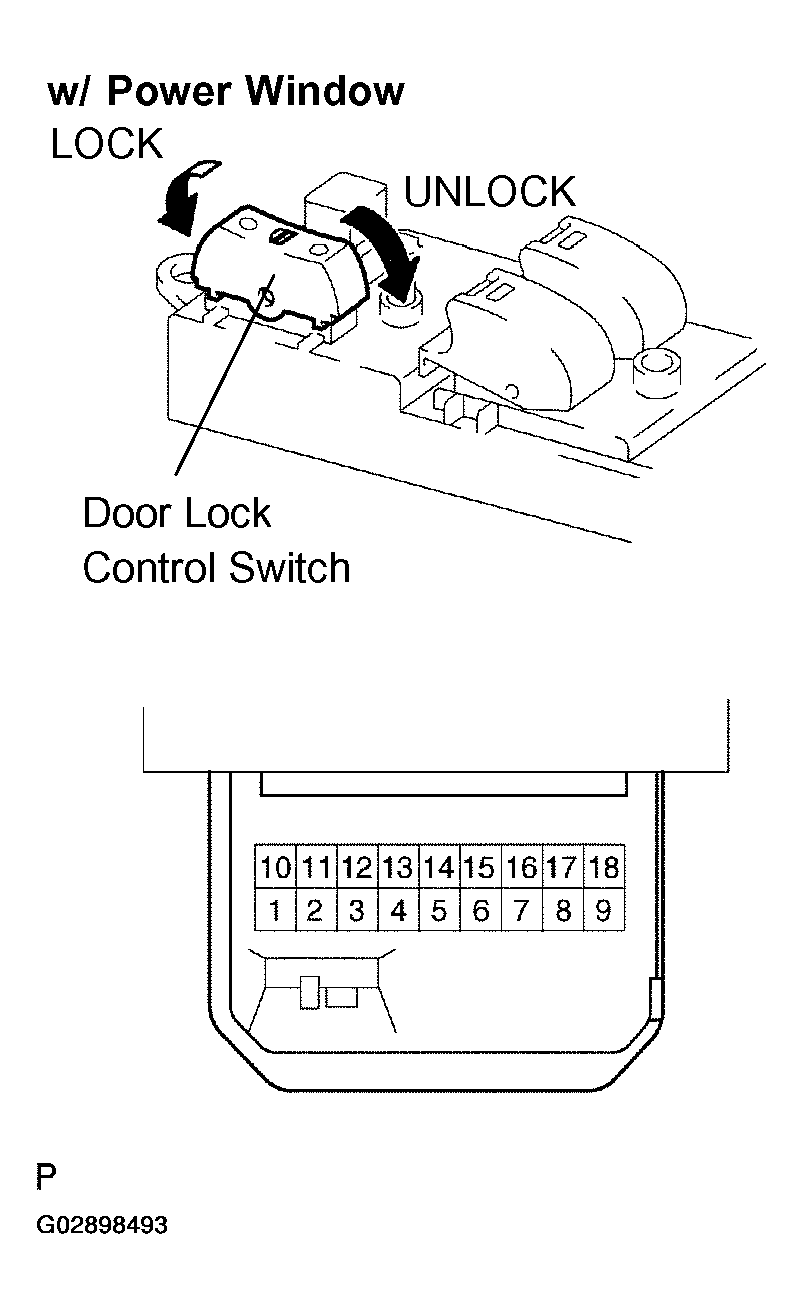

      Fig 7: Inspecting Power Window Regulator Master Switch Assy
      G02898493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Power window:

      Inspect the door lock control switch continuity.

      Standard:

      SPECIFIED CONDITION

      Switch position Terminal No. Specified condition
      Lock 3 <--> 6 Continuity
      OFF - No continuity
      Unlock 3 <--> 5 Continuity

      If the result is not as specified, replace the switch.

      Fig 8: Inspecting Door Lock Control Switch
      G02898494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT DOOR CONTROL SWITCH ASSY
    1. Passenger's side switch:

      Inspect the door lock control switch continuity.

      Standard:

      SPECIFIED CONDITION

      Switch position Tester connection Specified condition
      Lock 3 <--> 6 Continuity
      OFF - No continuity
      Unlock 3 <--> 5 Continuity

      If the result is not as specified, replace the switch.

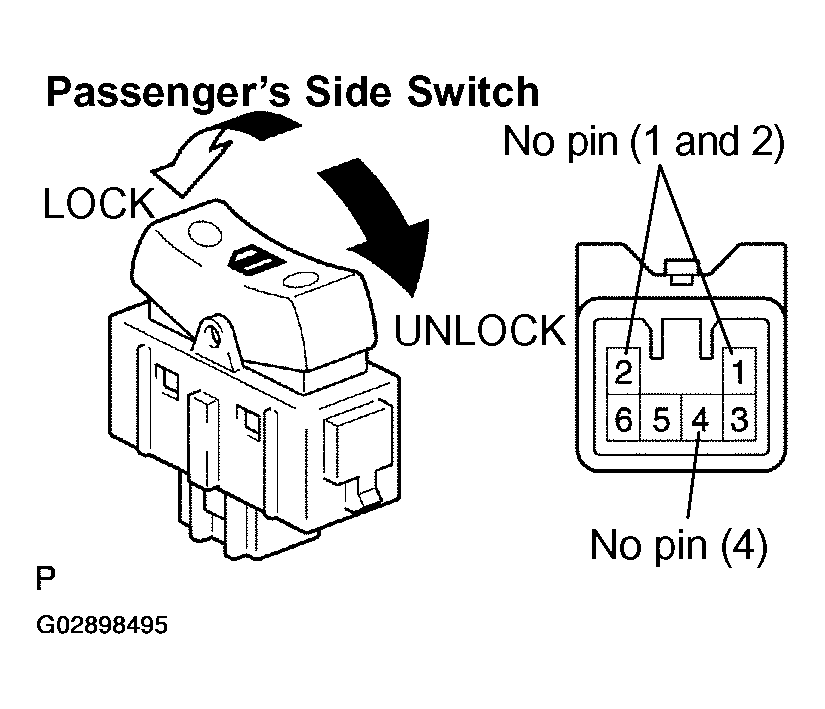

      Fig 9: Inspecting Door Control Switch Assy
      G02898495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
