Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE METER HOOD SUB-ASSY (See REPLACEMENT )
REMOVE COMBINATION METER ASSY
1. Remove the screw.
2. Disengage the 2 clips as shown in the illustration.
3. Disconnect the connector, then remove the combination meter.

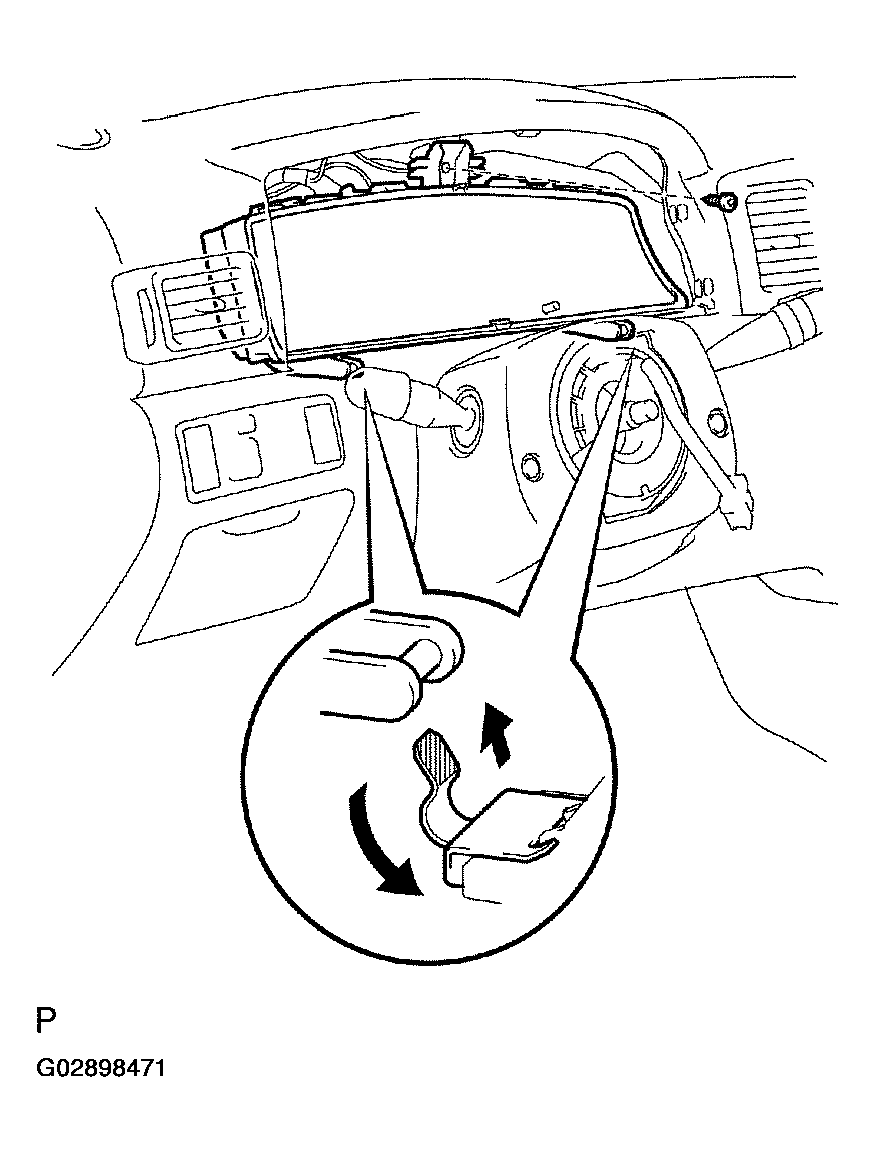

Fig 1: Disconnecting Connector Then Removing Combination Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Disengage the 8 claws, then remove the combination meter glass.

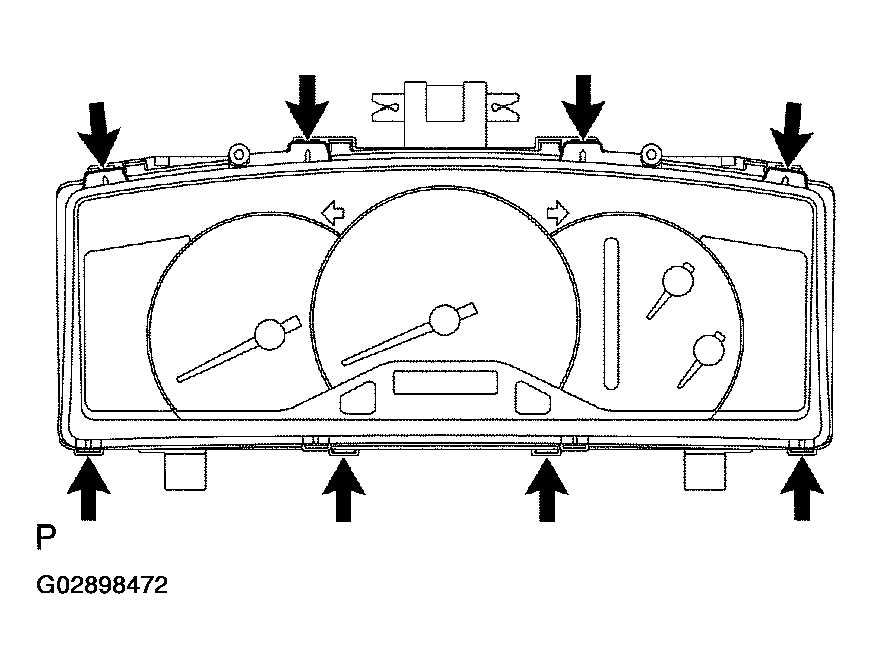

Fig 2: Removing Combination Meter Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
