Clock ASSY: Replacement
WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE CONSOLE PANEL UPPER (See REPLACEMENT )
- REMOVE HEATER CONTROL KNOB
- REMOVE INSTRUMENT CLUSTER FINISH PANEL (See REPLACEMENT )
- REMOVE CLOCK ASSY

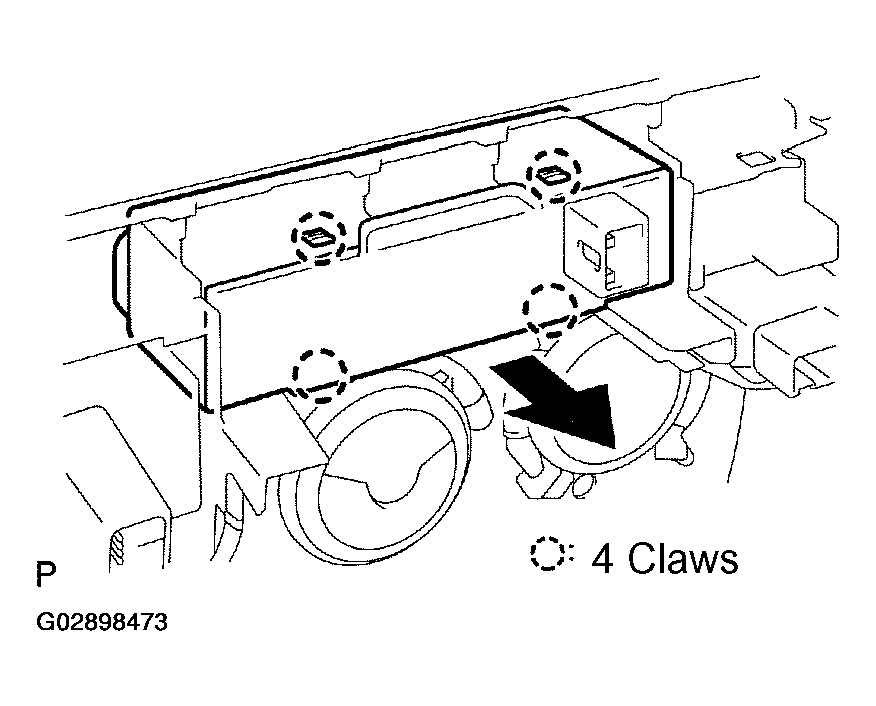

- Using a screwdriver, disengage the 4 claws, remove the clock as shown in the illustration.
HINT:
Tape the screwdriver tip before use.
