Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the table below to help determine the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

HEADLAMP AND TAIL LAMP

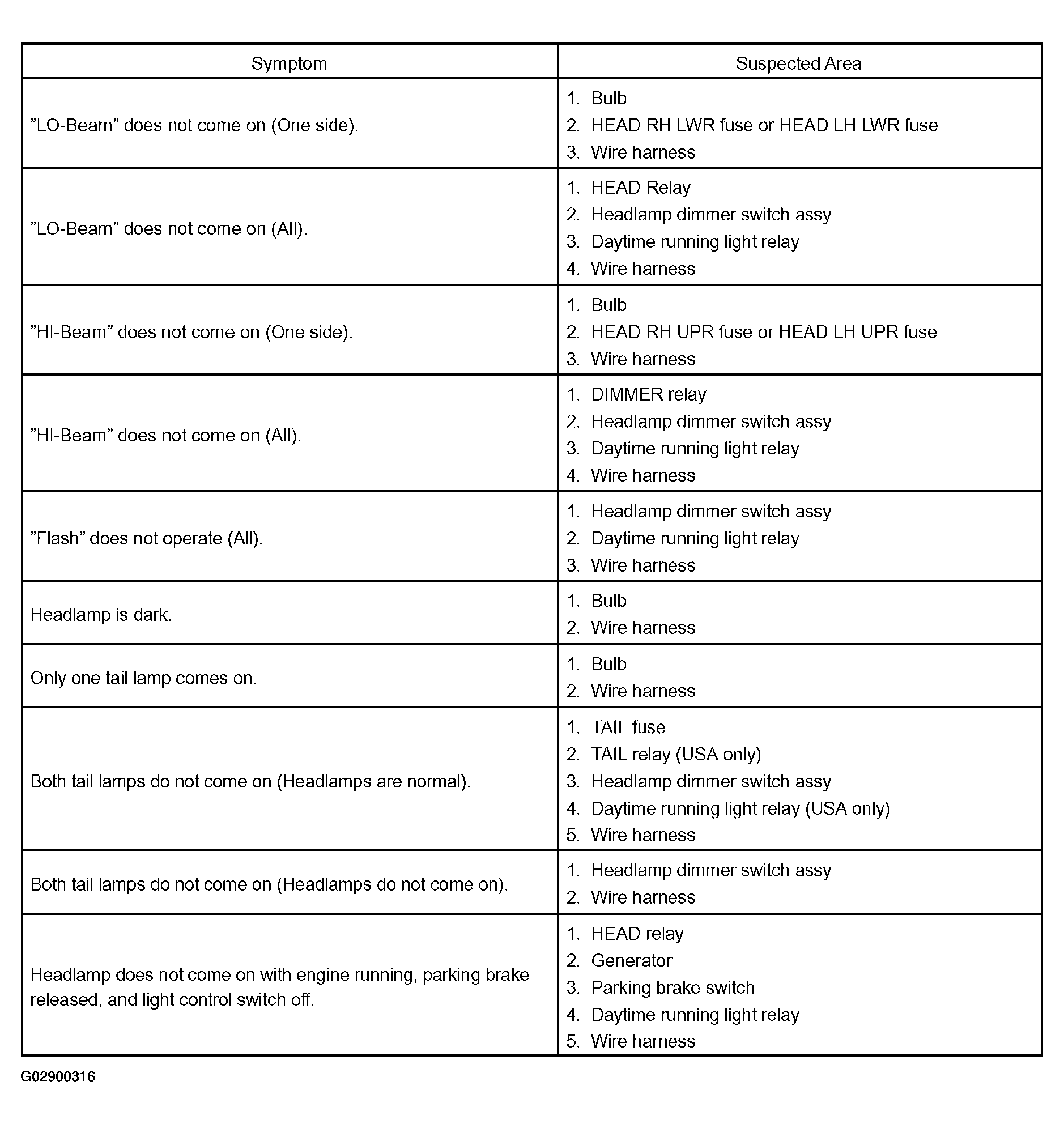

Fig 1: Headlamp And Tail Lamp - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FRONT FOG LAMP SYSTEM

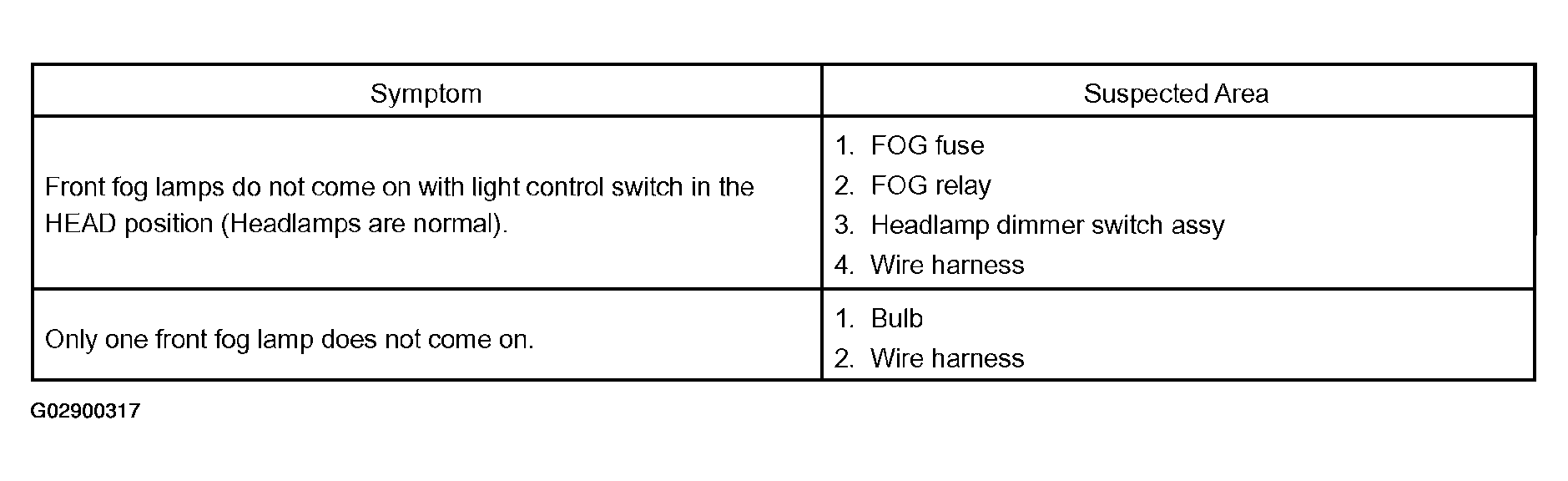

Fig 2: Front Fog Lamp System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL AND HAZARD WARNING SYSTEM

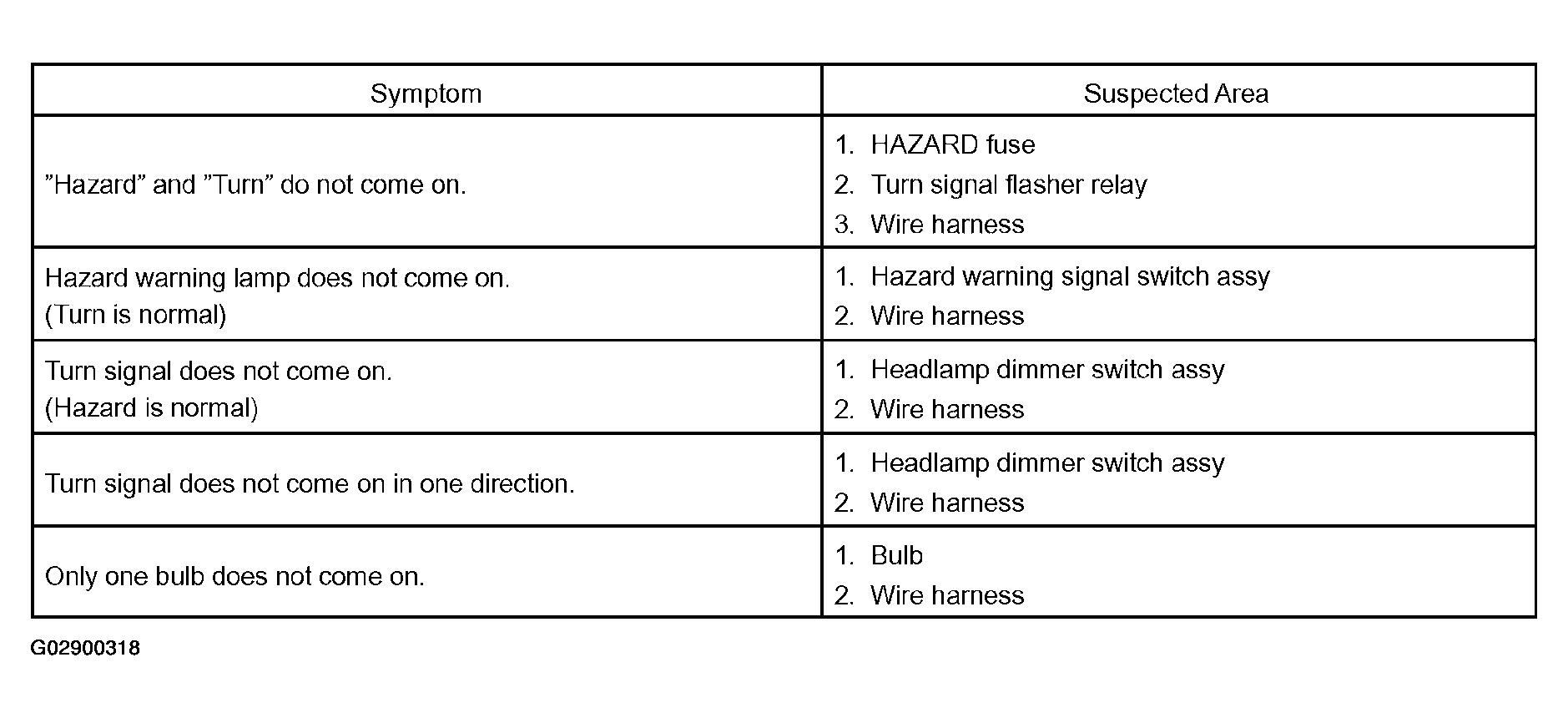

Fig 3: Turn Signal And Hazard Warning System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STOP LAMP SYSTEM

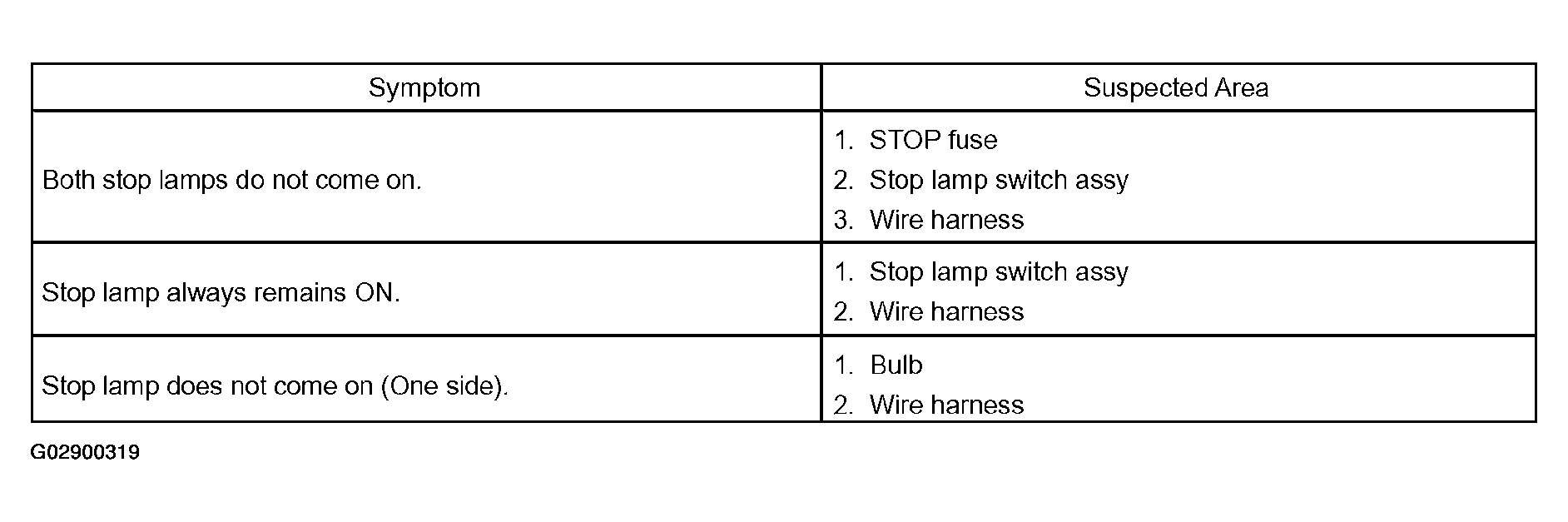

Fig 4: Stop Lamp System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BACK UP LAMP SYSTEM

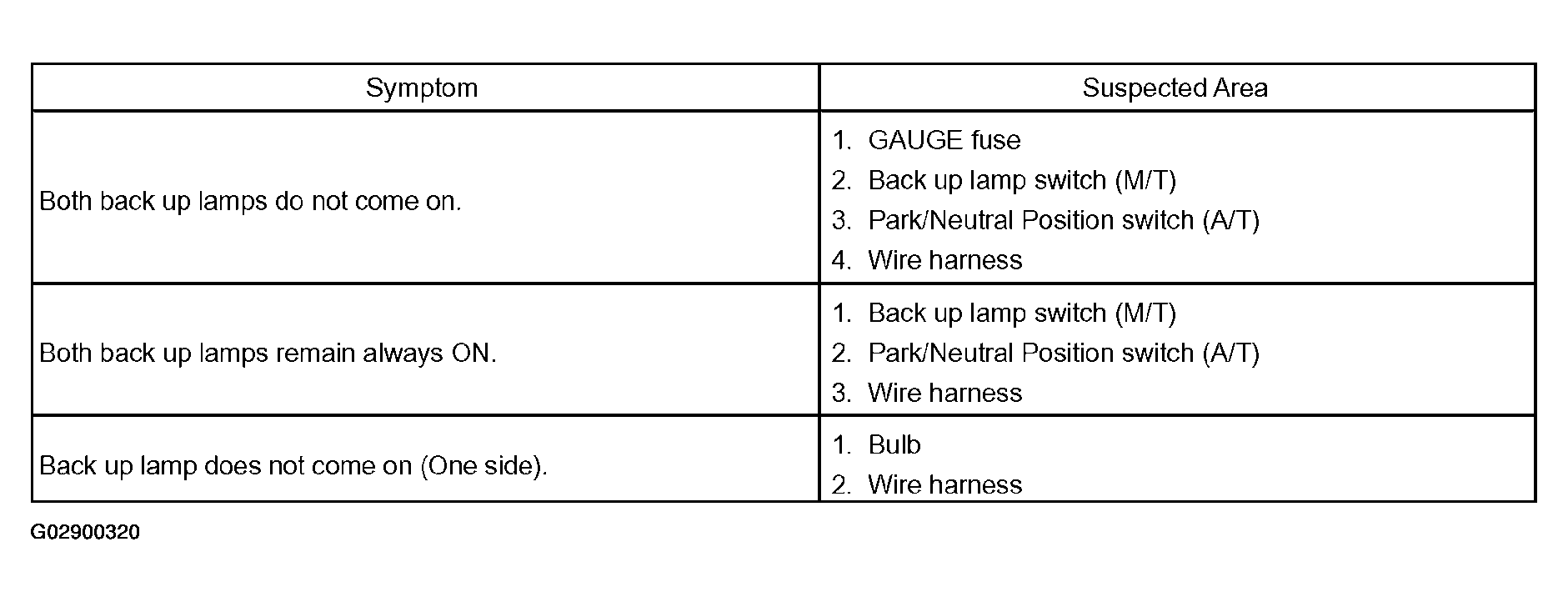

Fig 5: Back Up Lamp System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INTERIOR LAMP SYSTEM

Fig 6: Interior Lamp System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LIGHT CONTROL RHEOSTAT SYSTEM

Fig 7: Light Control Rheostat System - Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
