INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
1. This is a method in witch the trouble is located by using a manifold gauge set. Read the manifold gauge pressure when the these conditions are established.
  Test conditions:
  - Temperature at the air inlet with the switch set at RECIRC is 30 - 35°C (86 - 95°F)
  - Engine running at 1500 RPM
  - Blower speed control switch at "HI" position
  - Temperature control dial at "COOL" position
  - A/C switch ON
  - Fully open doors
  1. Normally functioning refrigeration system.
    Gauge reading:

    Low pressure side:

    0.15 - 0.25 MPa (1.5 - 2.5 kgf/cm ² )

    High pressure side:

    1.37 - 1.57 MPa (14-16 kgf/cm ² )

    Fig 1: Identifying Normally Functioning Refrigeration System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Moisture present in refrigeration system.

    Fig 2: Identifying Moisture Present In Refrigeration System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

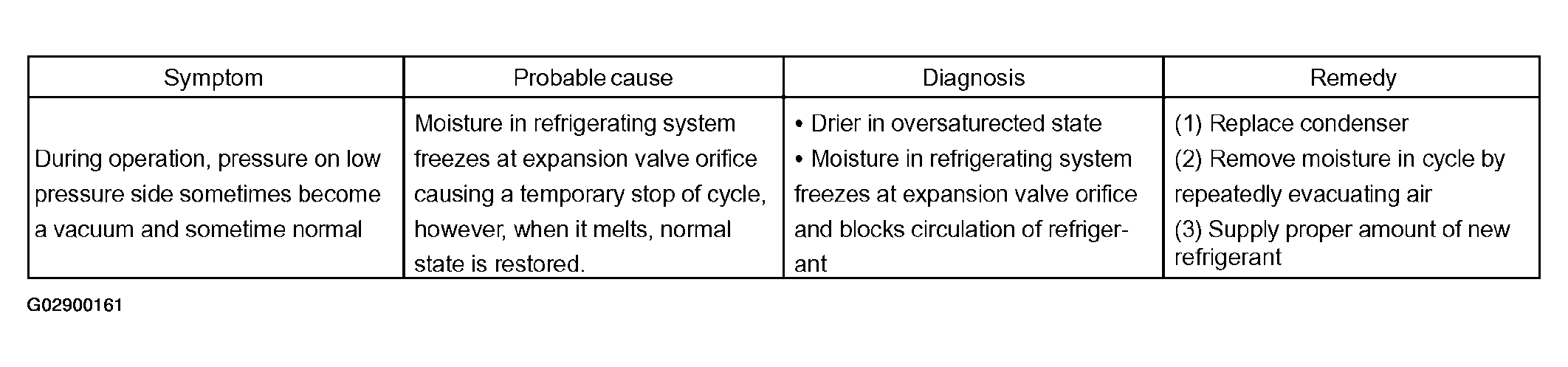

    Fig 3: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

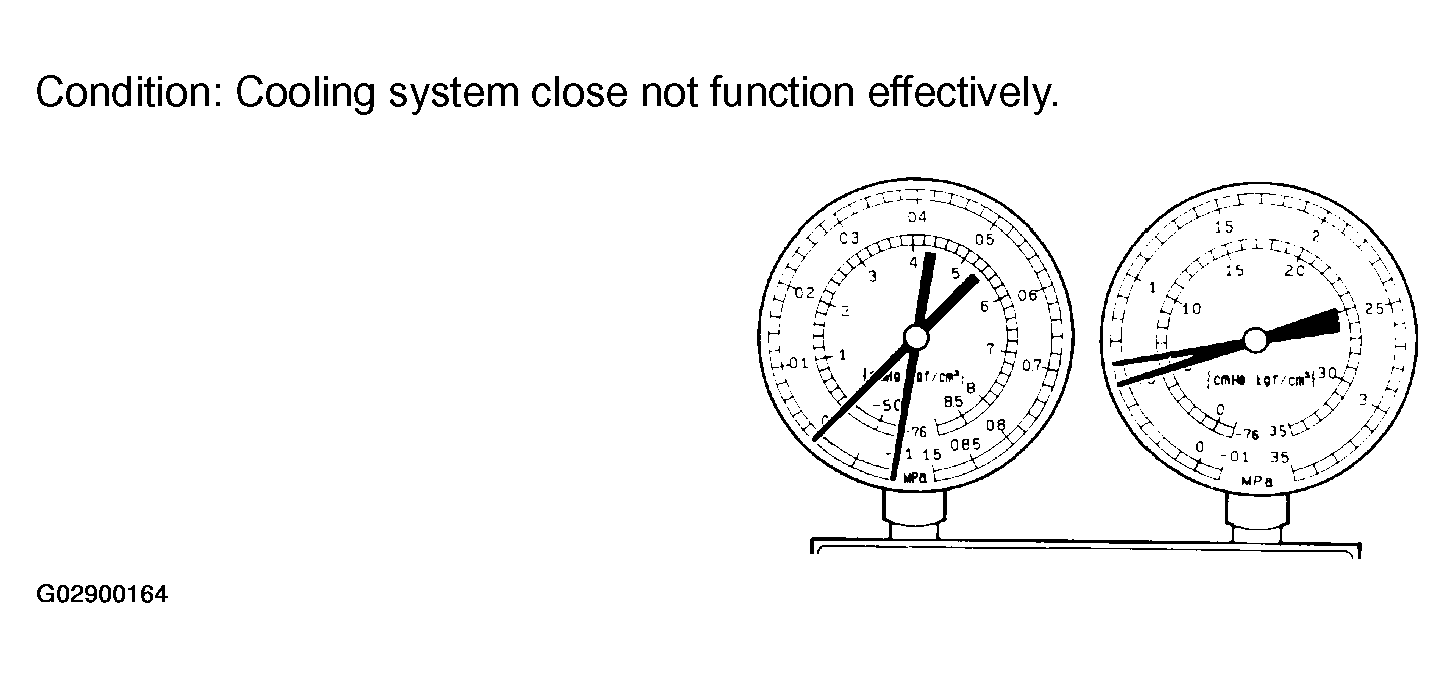

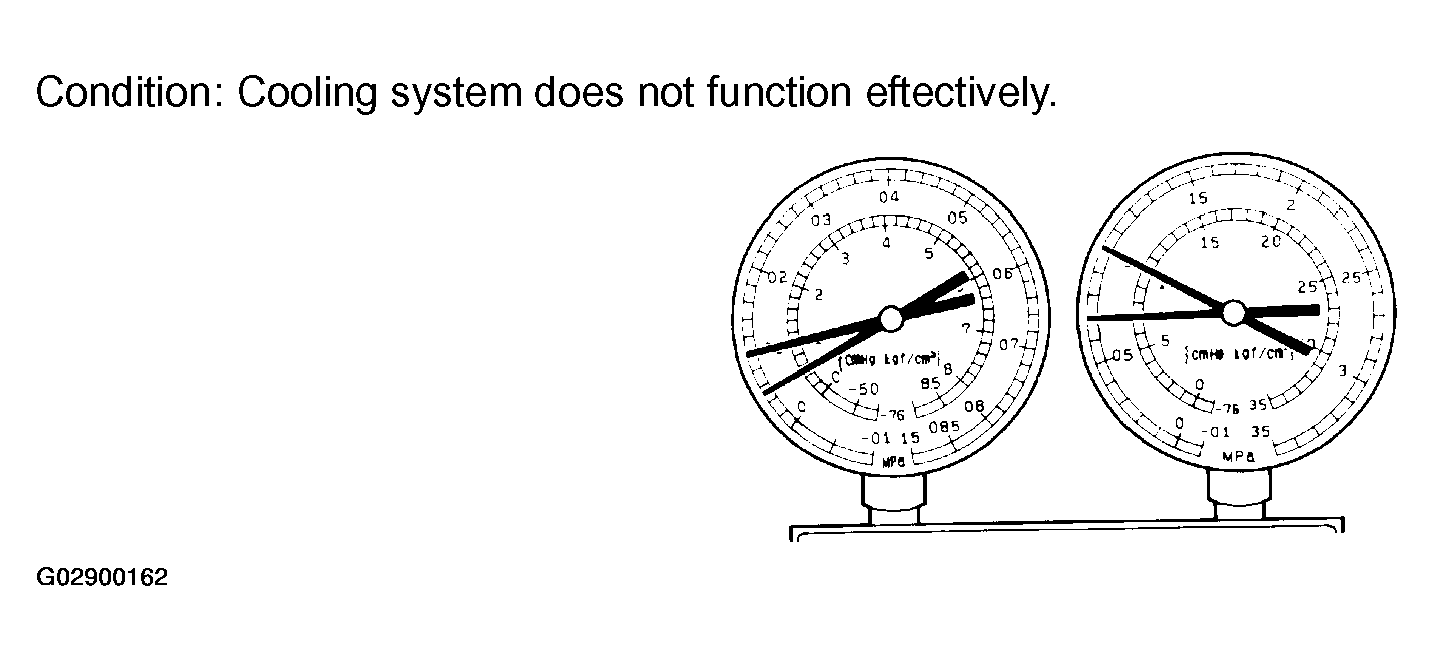

  3. Insufficient cooling

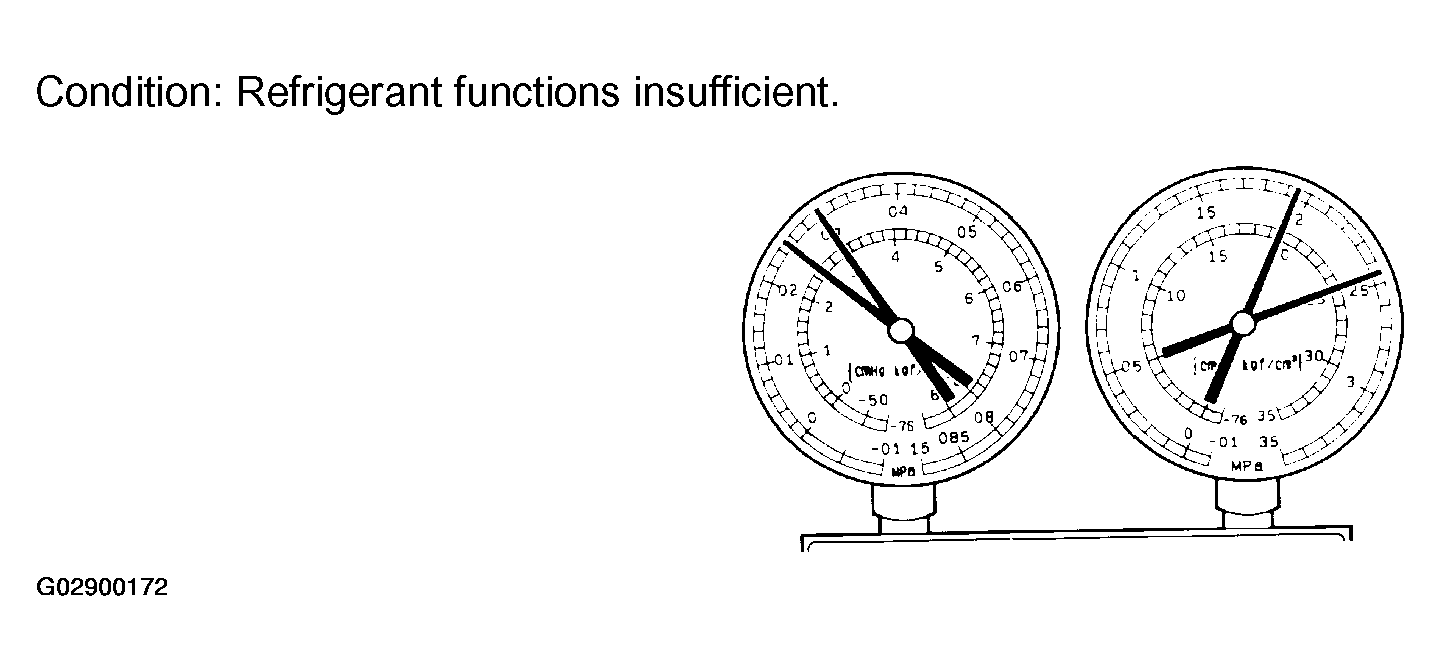

    Fig 4: Identifying Insufficient Cooling
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

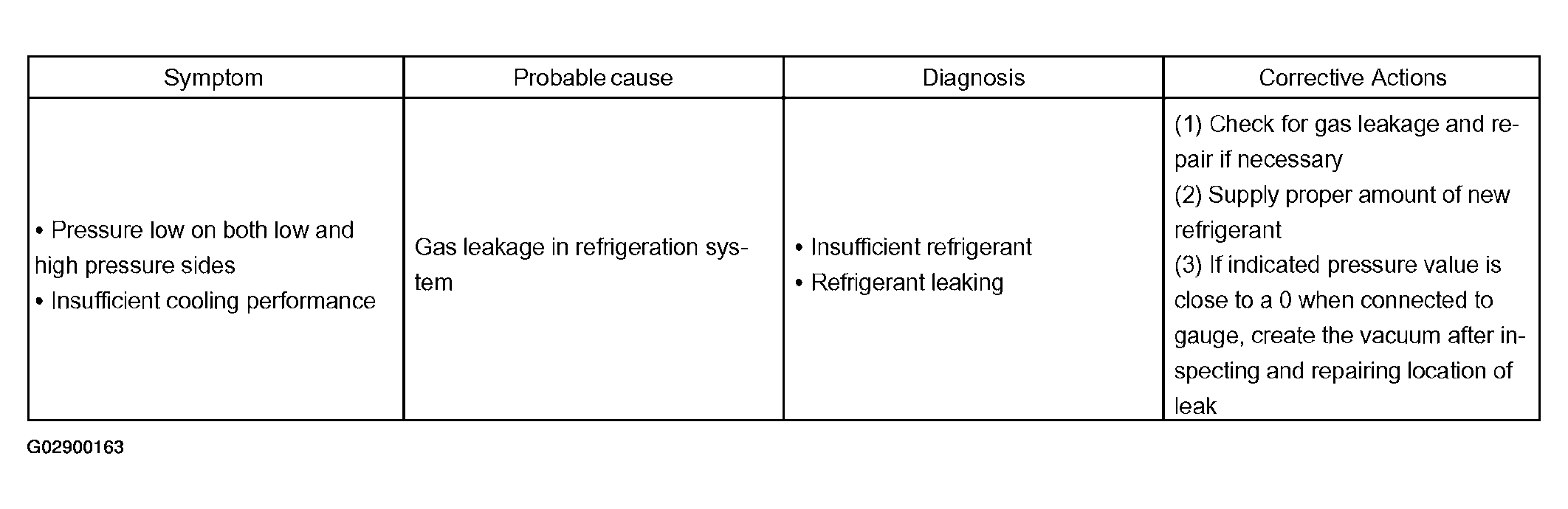

    Fig 5: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Poor circulation of refrigerant

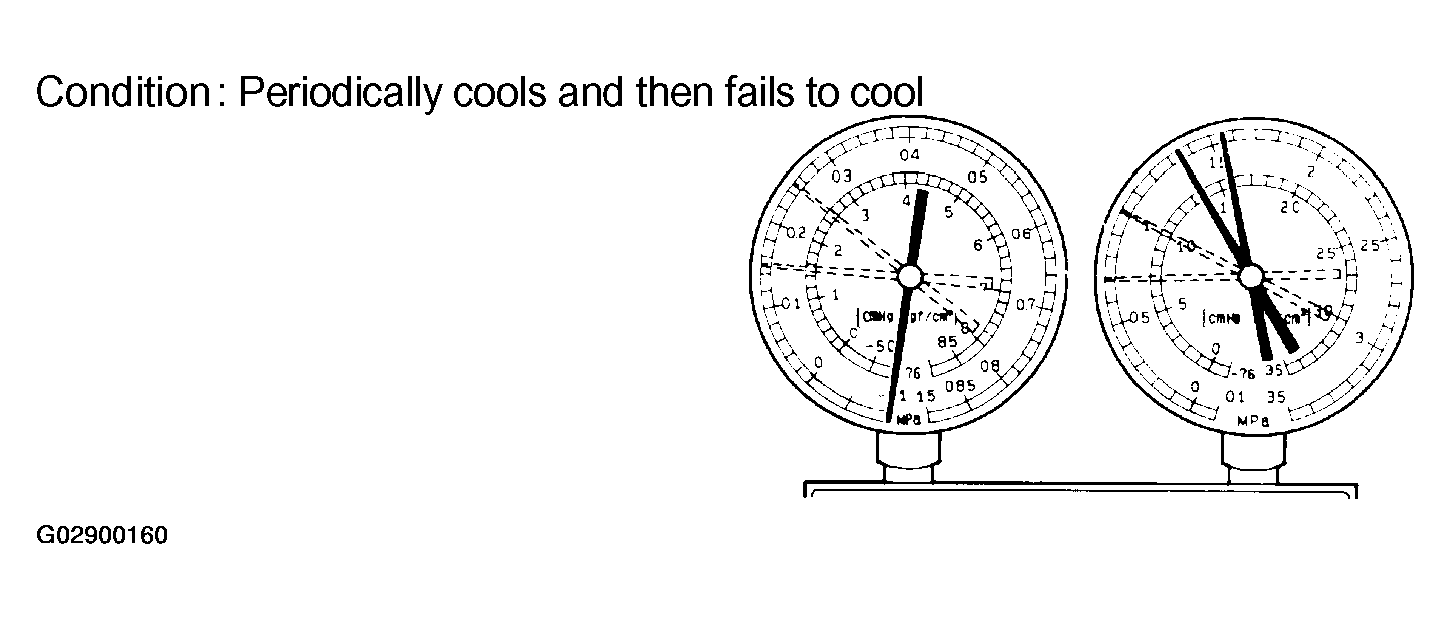

    Fig 6: Identifying Poor Circulation Of Refrigerant
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

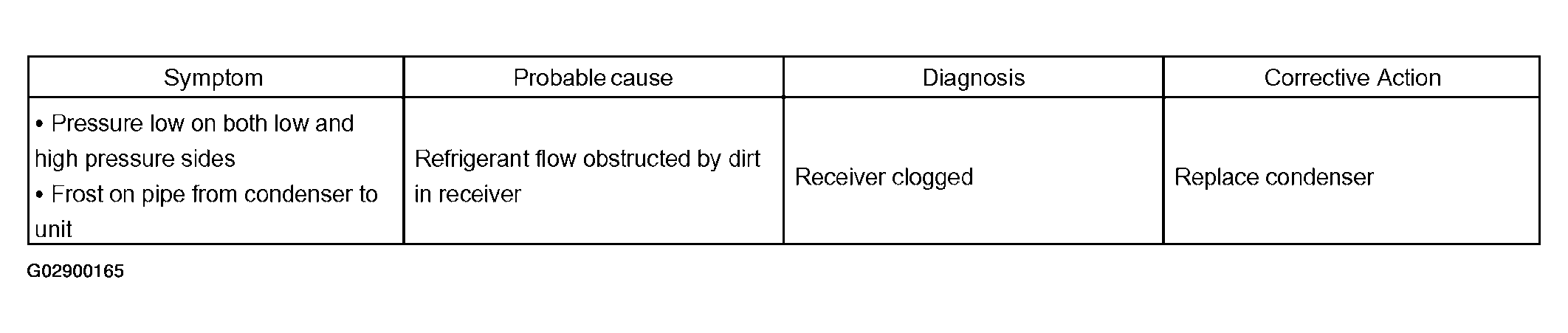

    Fig 7: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

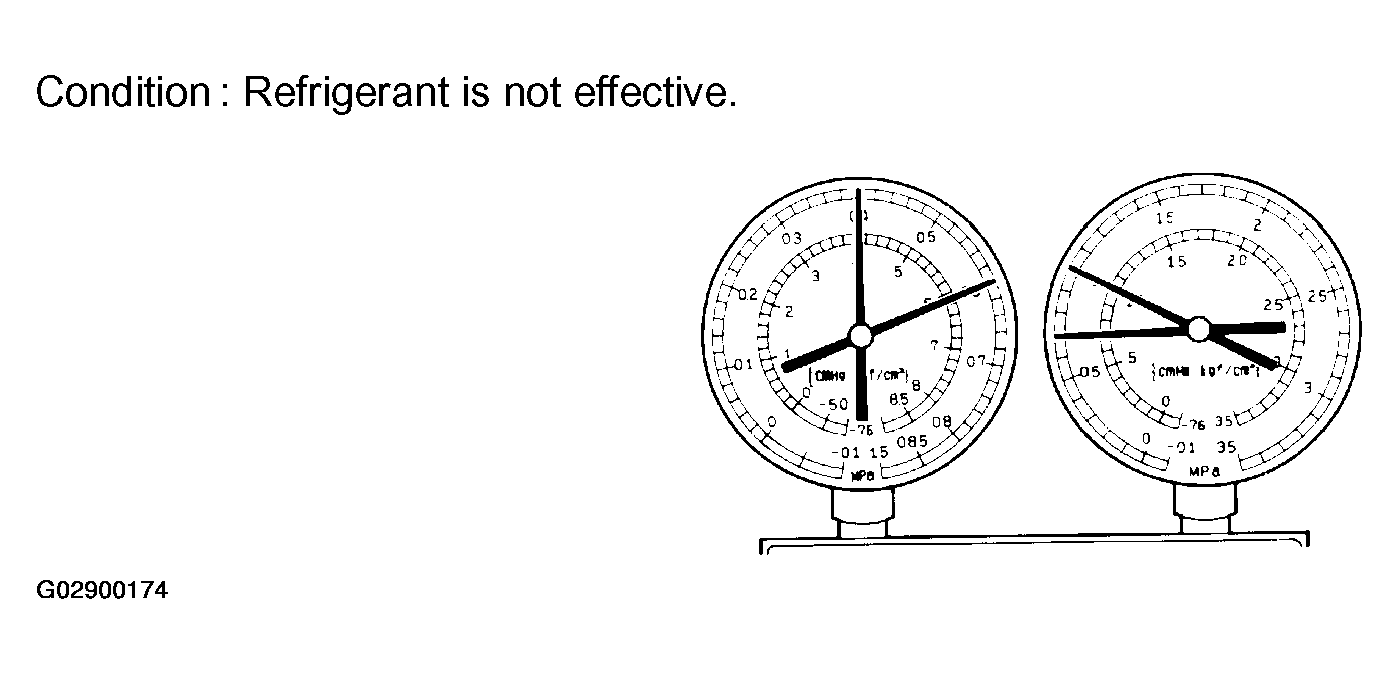

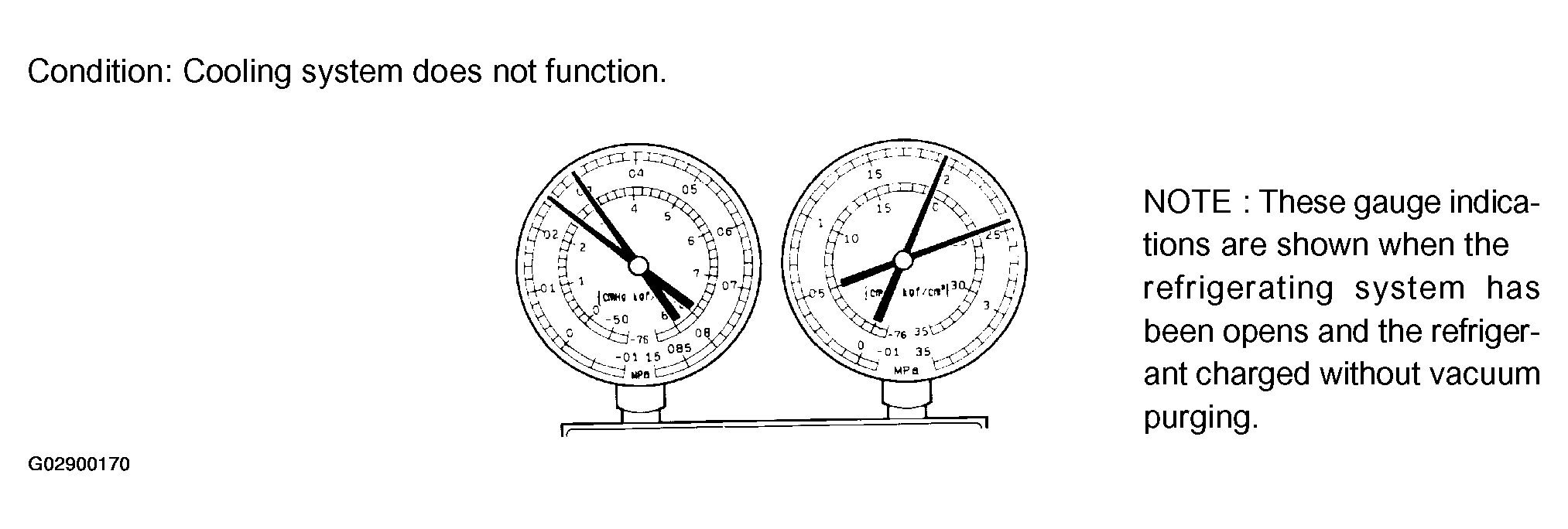

  5. Refrigerant does not circulate

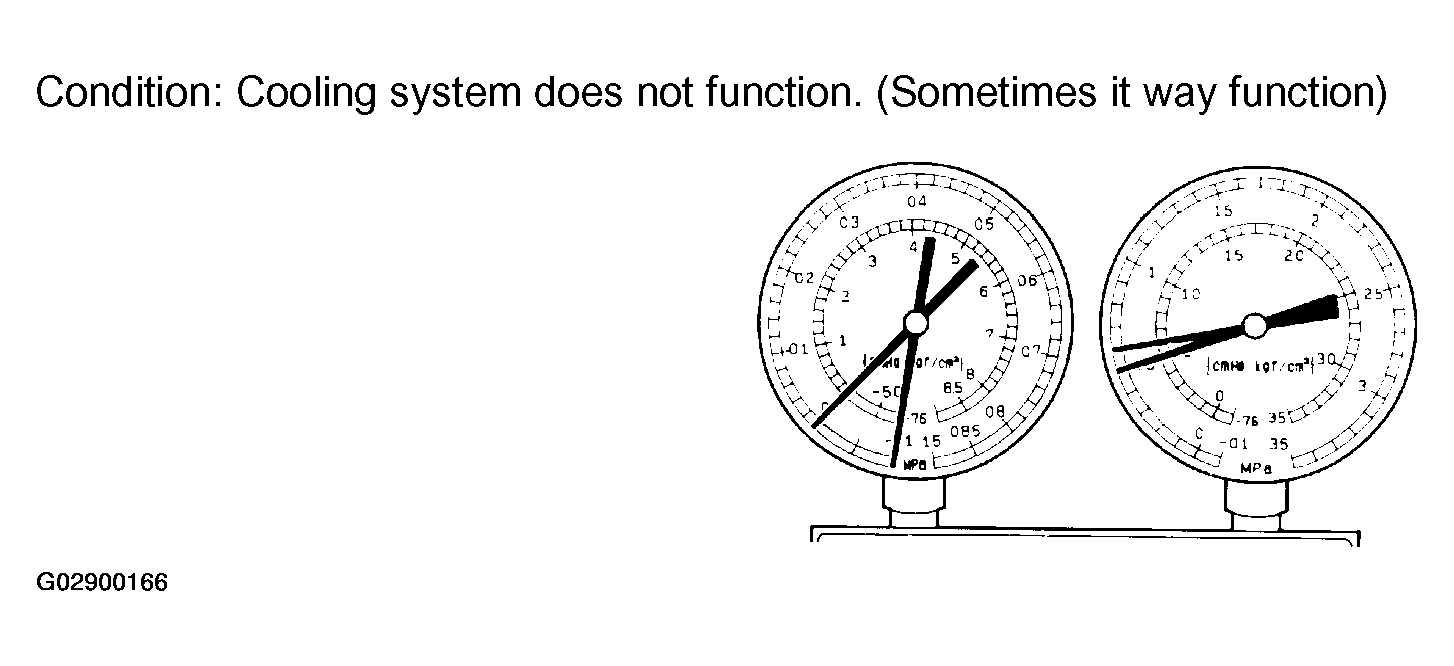

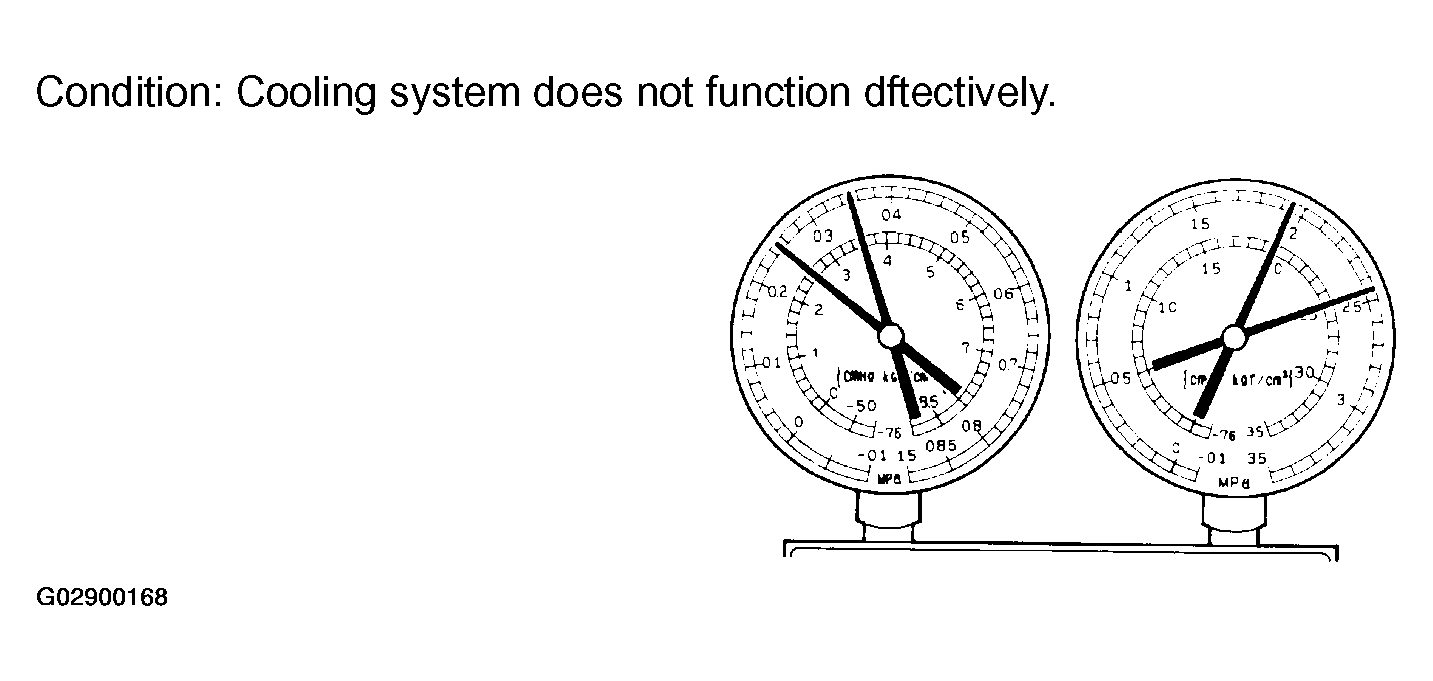

    Fig 8: Identifying Refrigerant Does Not Circulate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

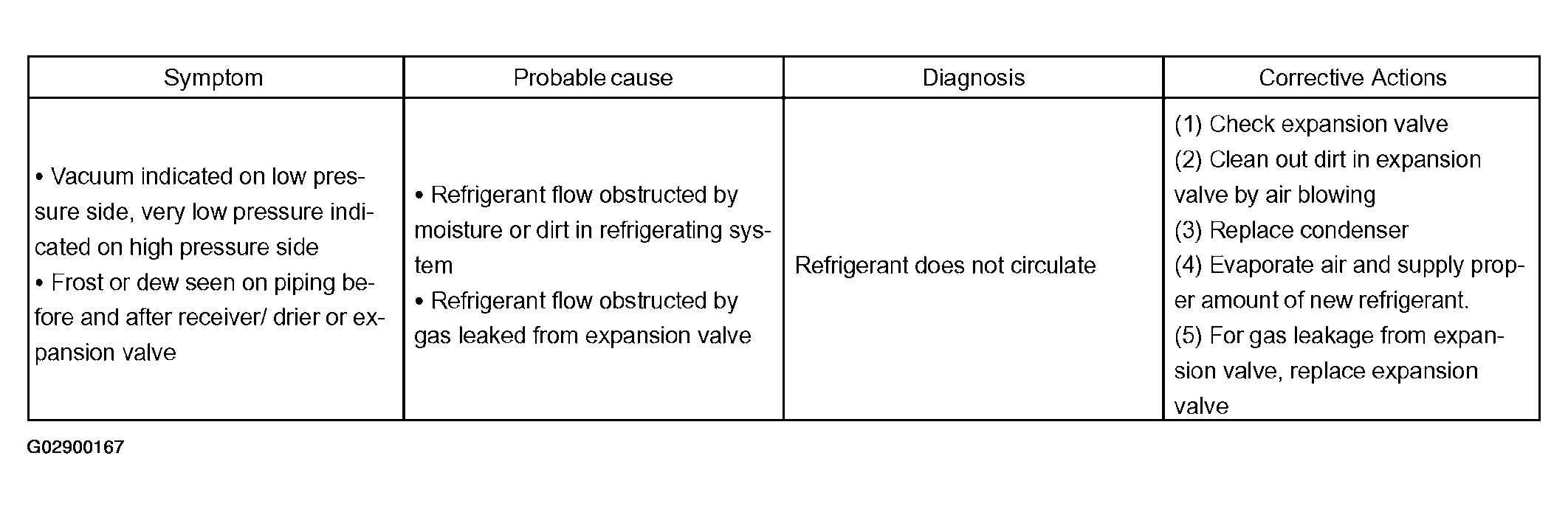

    Fig 9: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Refrigerant overcharged or insufficient cooling of condenser

    Fig 10: Identifying Refrigerant Overcharged Or Insufficient Cooling Of Condenser
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

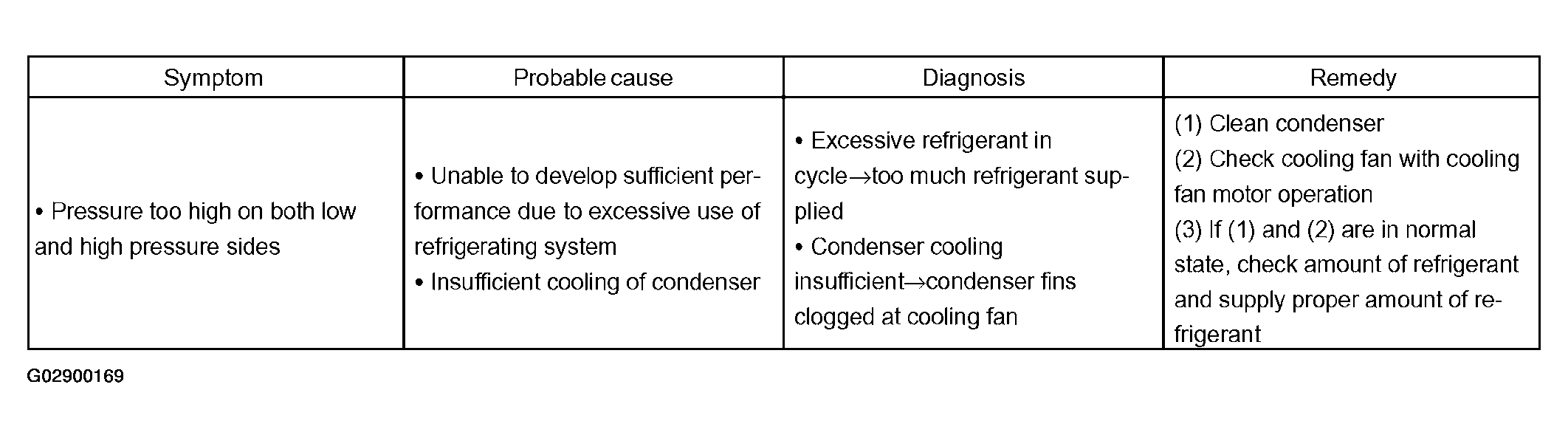

    Fig 11: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Air present in refrigeration system

    Fig 12: Air Present In Refrigeration System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

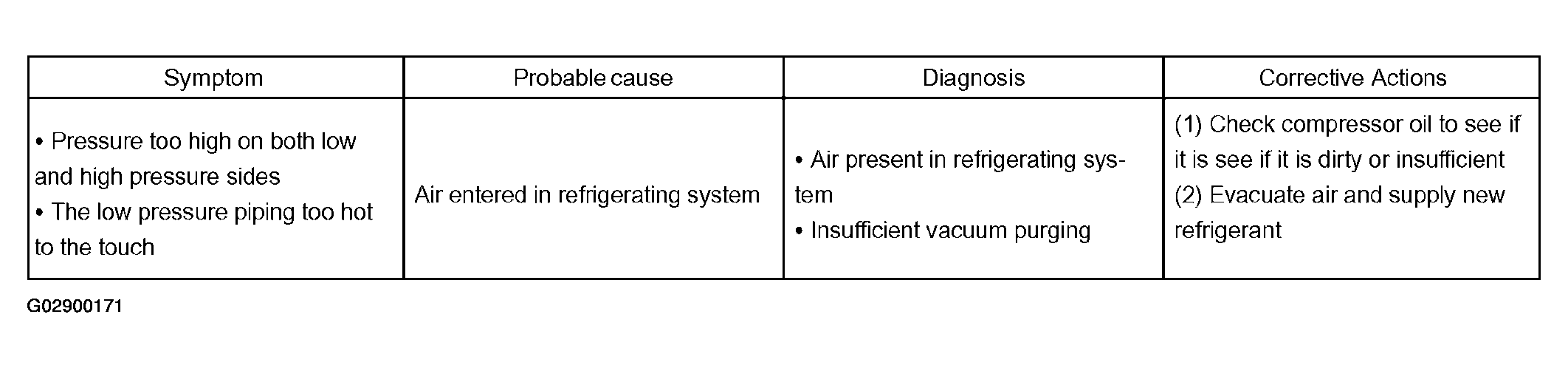

    Fig 13: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Expansion valve improperly

    Fig 14: Identifying Expansion Valve Improperly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

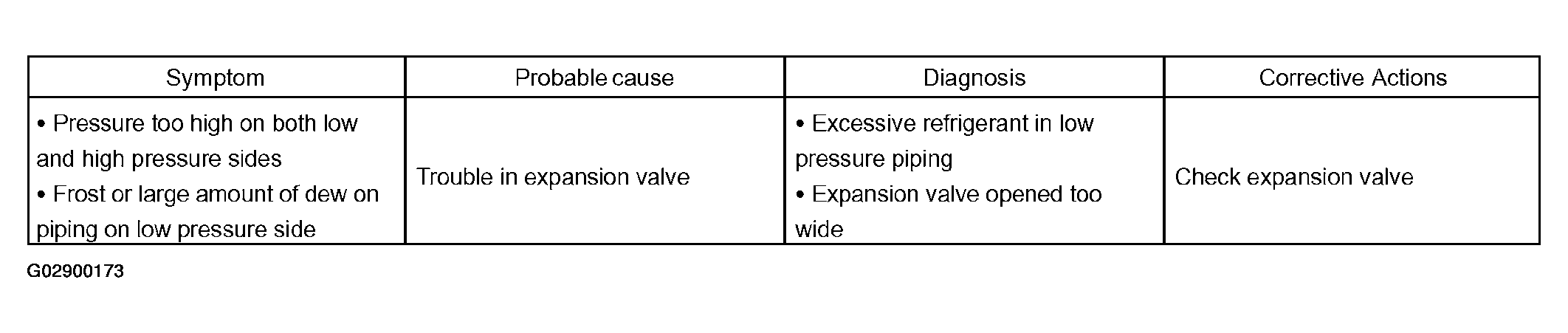

    Fig 15: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Defective compression compressor

    Fig 16: Identifying Defective Compression Compressor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

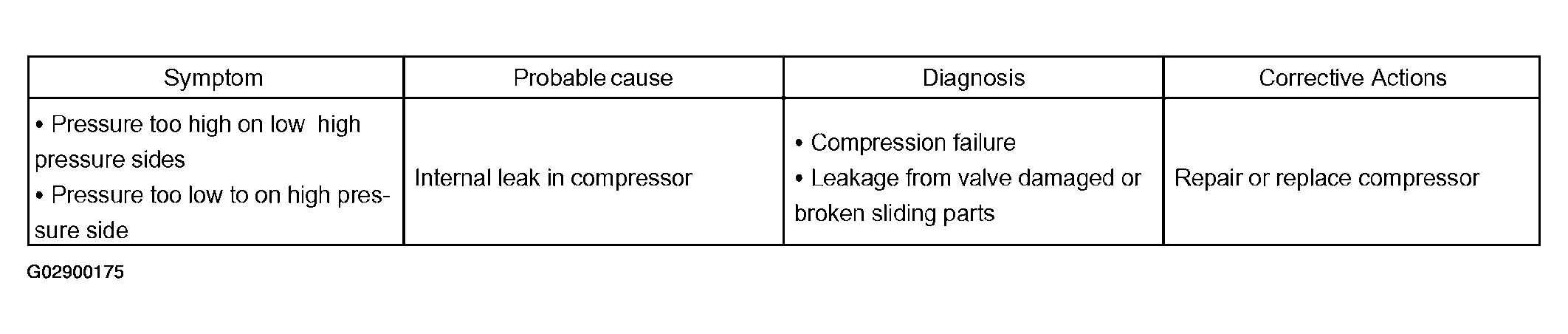

    Fig 17: Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Gauge readings (Reference)

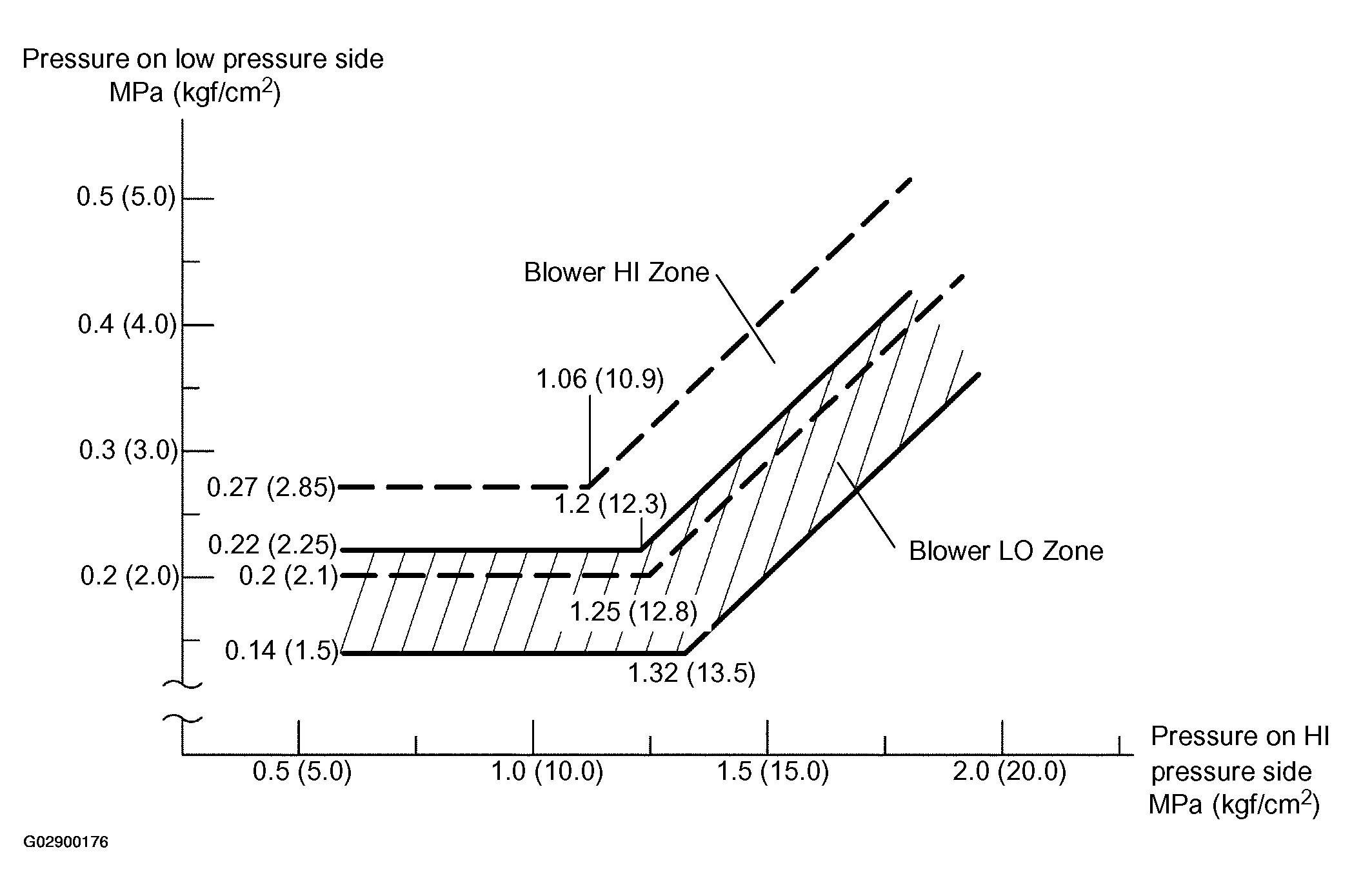

Fig 18: Gauge Readings Graph
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
