Air Conditioning System: Precaution

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA OR NEAR AN OPEN FLAME
  2. ALWAYS WEAR EYE PROTECTION
    Fig 1: Identifying Eye Protection (1 Of 2)
    G02900145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN YOUR EYES OR ON YOUR SKIN

    If liquid refrigerant gets in your eyes or on your skin.

    1. Wash the area with lots of cool water.
      CAUTION: Do not rub your eyes or skin.
    2. Apply clean petroleum jelly to the skin.
    3. Go immediately to a physician or hospital for professional treatment.
  4. NEVER HEAT CONTAINER OR EXPOSE IT TO NAKED FLAME
  5. BE CAREFUL NOT TO DROP CONTAINER AND NOT TO APPLY PHYSICAL SHOCKS TO IT
    Fig 2: Identifying Eye Protection (2 Of 2)
    G02900146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DO NOT OPERATE COMPRESSOR WITHOUT ENOUGH REFRIGERANT IN REFRIGERANT SYSTEM

    If there is not enough refrigerant in the refrigerant system oil lubrication will be insufficient and compressor burnout may occur, so take care to avoid this, necessary care should be taken.

  7. DO NOT OPEN HIGH PRESSURE MANIFOLD VALVE WHILE COMPRESSOR IS OPERATING

    If the high pressure valves opened, refrigerant flows in the reverse direction and could cause the charging cylinder to rupture, so open and close the only low pressure valve.

  8. BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH REFRIGERANT

    If refrigerant is overcharged, it causes problems such as insufficient cooling, poor fuel economy, engine overheating etc.

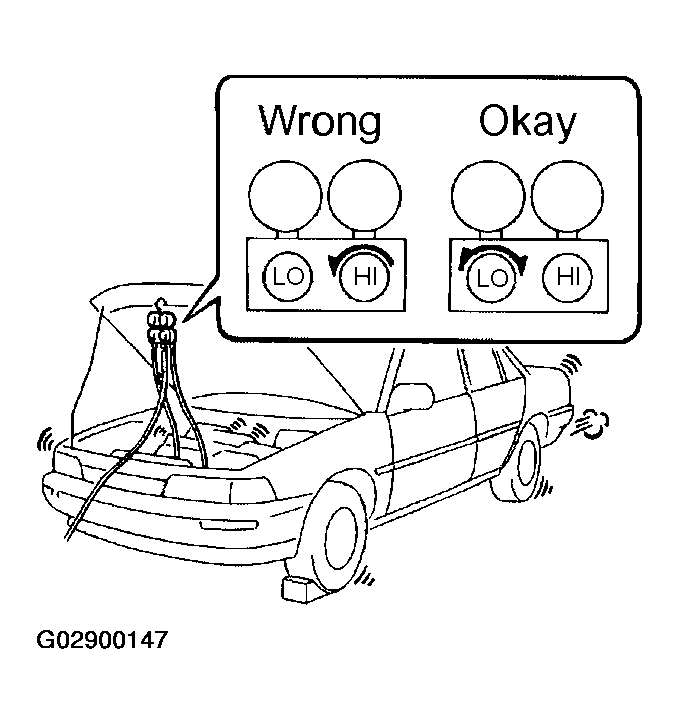

    Fig 3: Identifying Okay And Wrong Position
    G02900147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
