Air Conditioner Unit ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

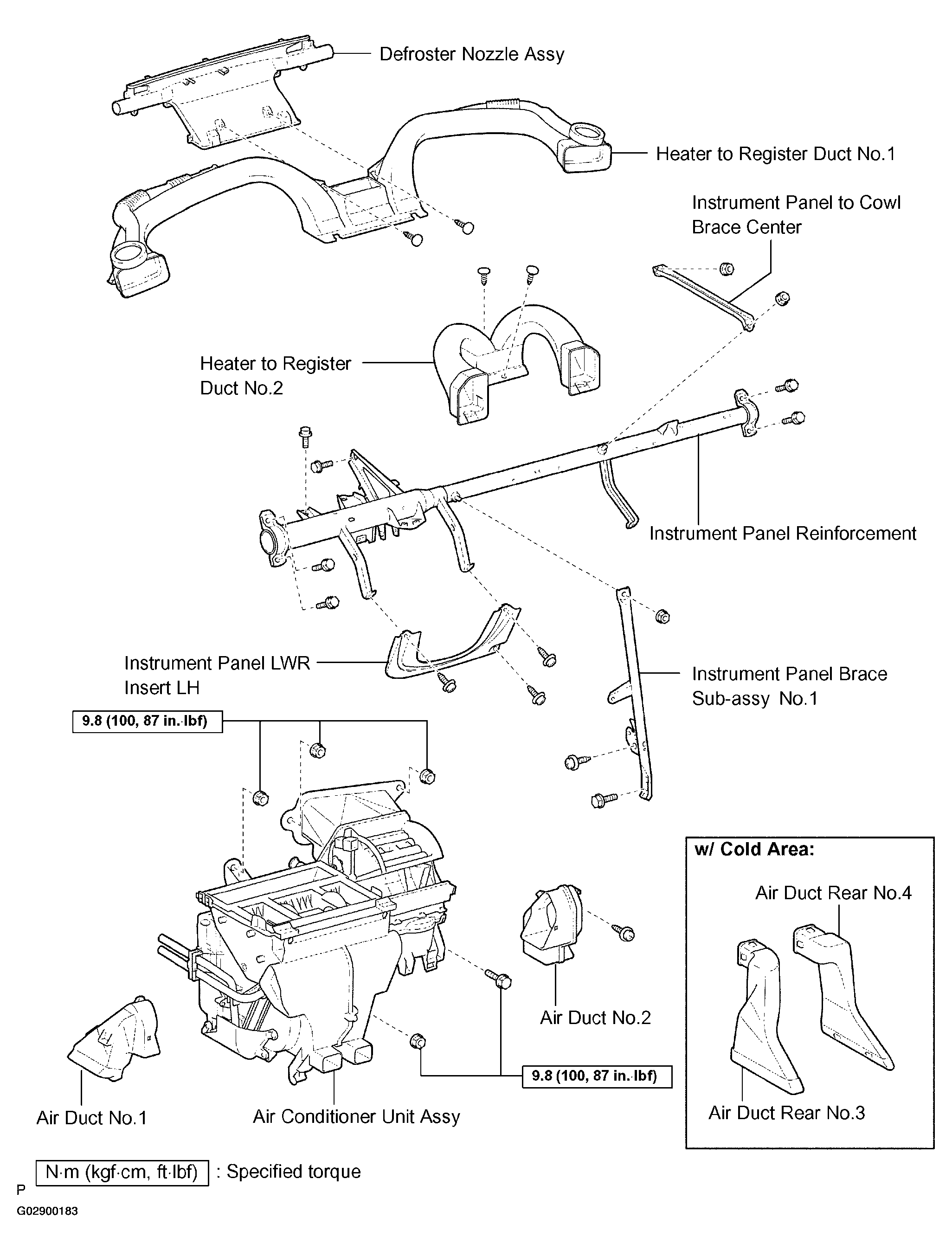

Fig 1: Identifying Air Conditioner Unit Assy Components (1 Of 2)
G02900183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

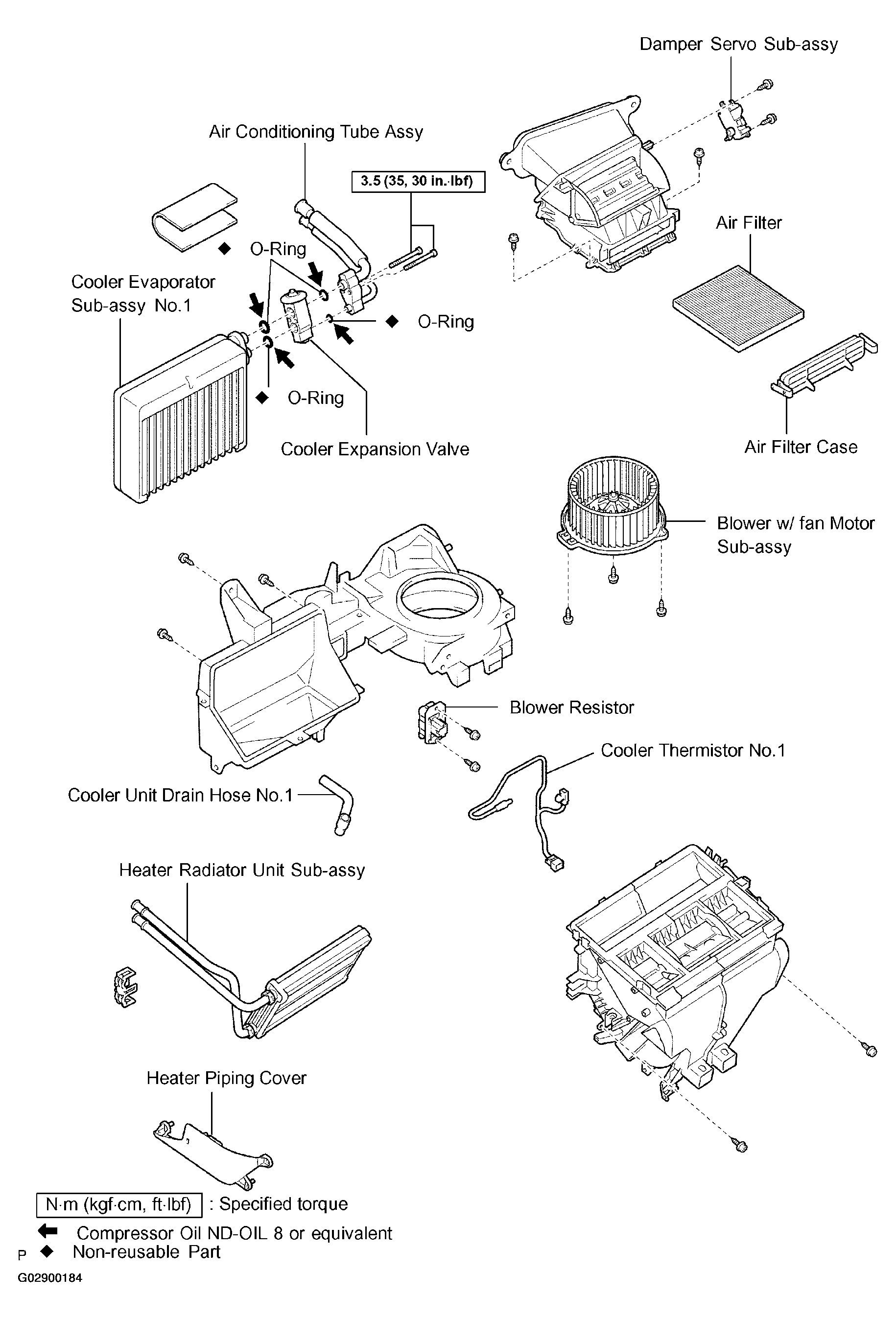

Fig 2: Identifying Air Conditioner Unit Assy Components (2 Of 2)
G02900184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
