Steering Column ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

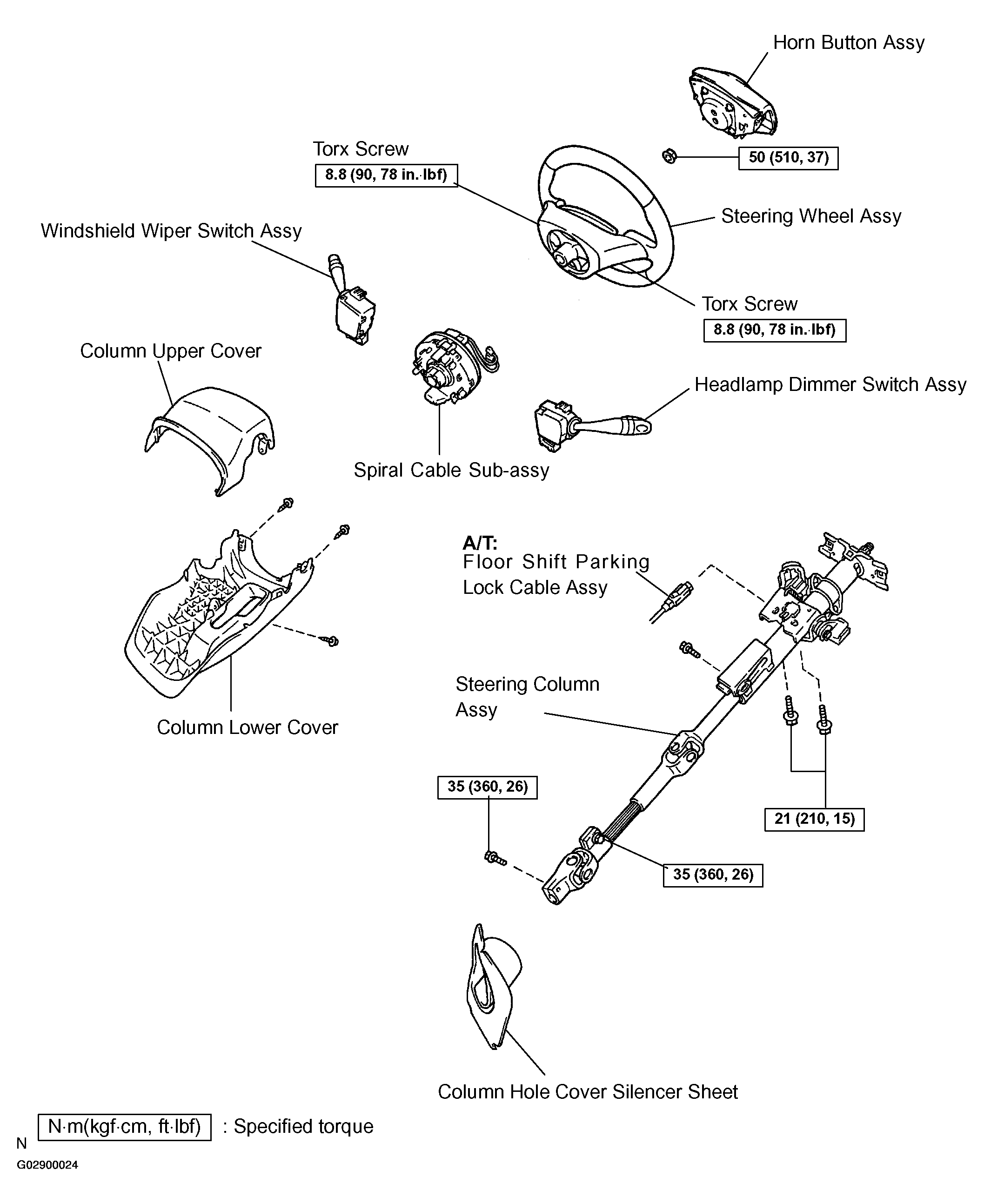

Fig 1: Identifying Steering Column Assy Components (1 Of 2)
G02900024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

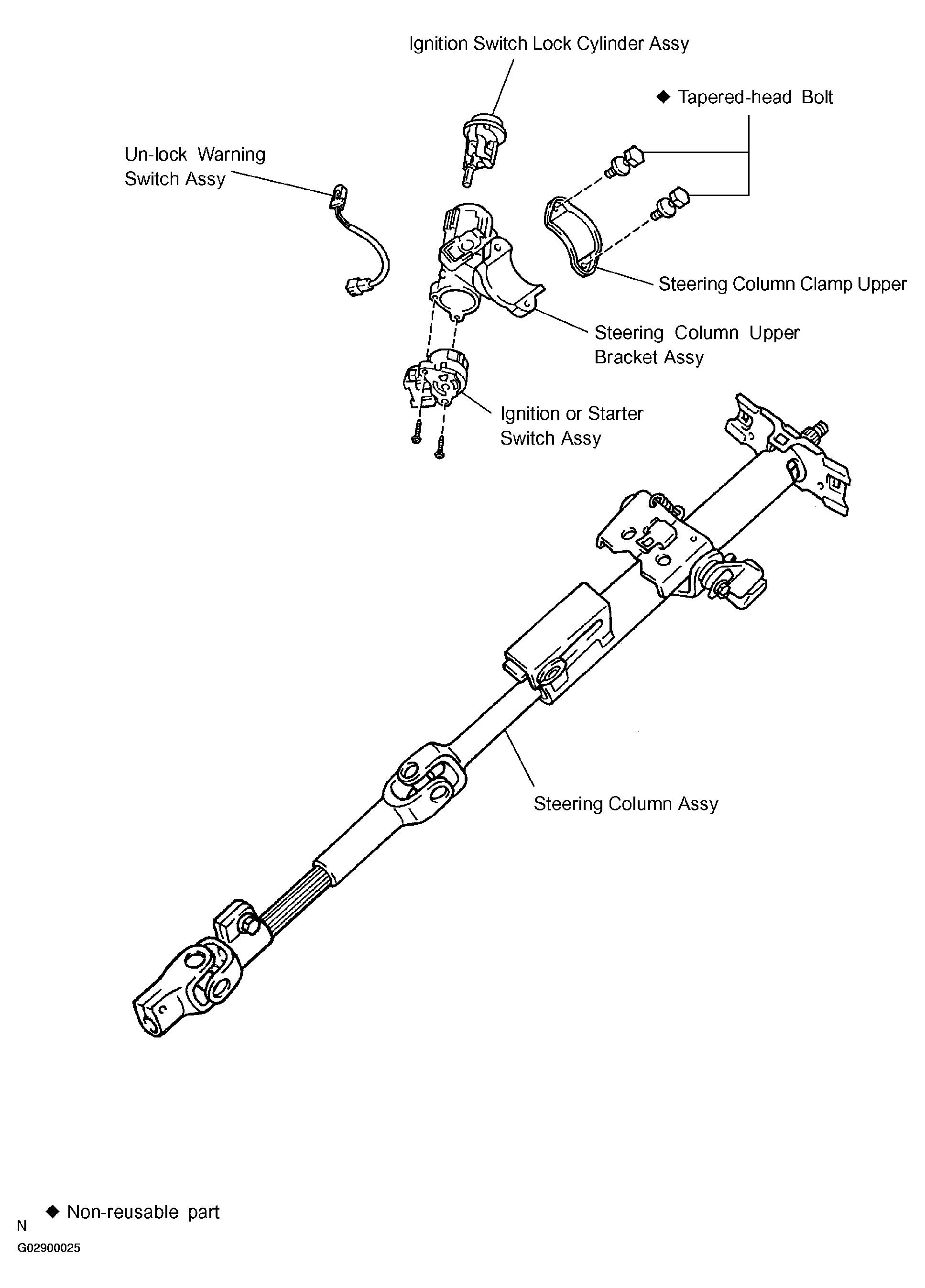

Fig 2: Identifying Steering Column Assy Components (2 Of 2)
G02900025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
