Front Axle Hub Sub-ASSY LH: Replacement

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT AXLE HUB LH NUT (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )

    SST 09930-00010

  3. SEPARATE FRONT STABILIZER LINK ASSY LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  4. SEPARATE SPEED SENSOR FRONT LH (W/ ABS) (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  5. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
    1. Remove the 2 bolts, separate the brake caliper assy LH from the steering knuckle.

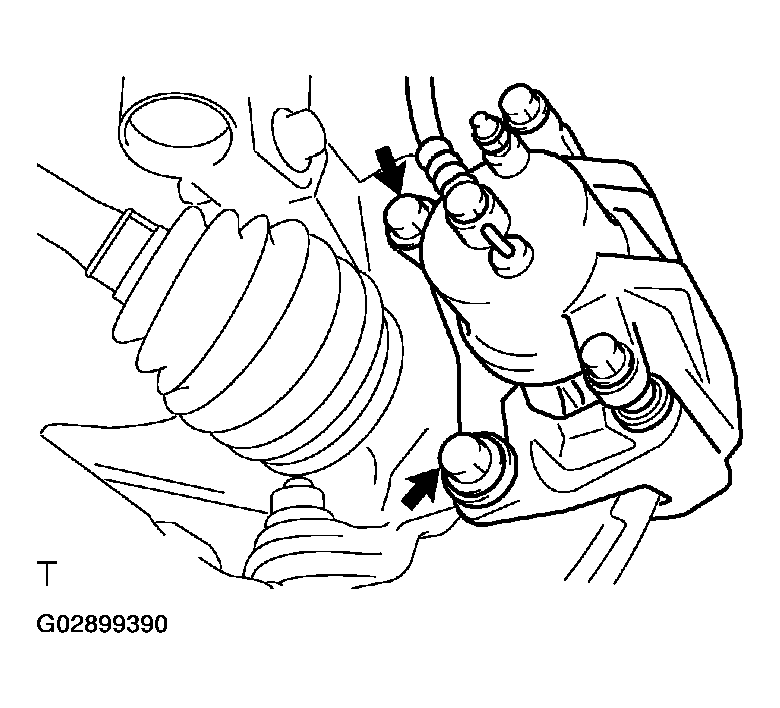

    Fig 1: Removing Bolts Separate Brake Caliper Assy LH
    G02899390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT DISC
  7. SEPARATE TIE ROD END SUB-ASSY LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )

    SST 09628-6201 1

  8. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  9. REMOVE FRONT AXLE ASSY LH
    1. Using a plastic hammer, separate the front drive shaft assy LH from the axle hub.
      NOTE:
      • Be careful not to damage the boot.
      • w/ ABS: Be careful not to damage the speed sensor rotor.
      Fig 2: Using A Plastic Hammer Separate Front Drive Shaft Assy
      G02899391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, nuts and front axle assy LH.
    Fig 3: Removing Front Axle Assy LH
    G02899392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LOWER BALL JOINT ASSY FRONT LH
    1. Remove the cotter pin and nut.
    2. Using SST, remove the lower ball joint assy front LH.

      SST 09628-6201 1

    Fig 4: Removing Lower Ball Joint Assy Front Using SST
    G02899393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT AXLE HUB LH HOLE SNAP RING
    1. Using a snap ring pliers, remove the LH hole snap ring.
    Fig 5: Using A Snap Ring Pliers
    G02899394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT AXLE HUB SUB-ASSY LH
    1. Using SST, remove the hub sub-assy LH.

      SST 09520-00031

      Fig 6: Removing Hub Sub-Assy LH Using SST
      G02899395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the inner race of hub LH bearing from the hub sub-assy LH.

      SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00370)

    Fig 7: Removing Inner Race Of Hub LH Bearing From Hub Sub-Assy LH
    G02899396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE DISC BRAKE DUST COVER FRONT LH
    1. Remove the 3 bolts and dust cover front LH.
  14. REMOVE FRONT AXLE HUB LH BEARING
    1. Place the inner race of hub LH bearing on the outer race of hub LH bearing.
    2. Using SST and a press, remove the hub LH bearing from the steering knuckle.

      SST 09527-17011, 09950-60010 (09951-00640), 09950-70010 (09951-07100)

    Fig 8: Removing Hub LH Bearing From Steering Knuckle
    G02899397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT AXLE HUB LH BEARING
    1. Using SST and a press, install a new hub LH bearing to the steering knuckle.

      SST 09950-60020 (09951-00720), 09950-70010 (09951-07100)

    Fig 9: Installing A New Hub LH Bearing To Steering Knuckle
    G02899398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL DISC BRAKE DUST COVER FRONT LH
    1. Install the dust cover front LH with the 3 bolts.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

  17. INSTALL FRONT AXLE HUB SUB-ASSY LH
    1. Using SST and a press, install the hub sub-assy LH.

      SST 09608-32010, 09950-60010 (09951-00600), 09950-70010 (09951-07100)

    Fig 10: Installing Hub Sub-Assy LH
    G02899399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT AXLE HUB LH HOLE SNAP RING
    1. Using snap ring pliers, install a new LH hole snap ring.
    Fig 11: Installing A New LH Hole Snap Ring
    G02899400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL LOWER BALL JOINT ASSY FRONT LH
    1. Install the lower ball joint assy front LH, torque the nut.

      Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

    2. Install a new cotter pin.
      NOTE: If the holes for the cotter pin are not aligned, tighten the nut further up to 60°.
  20. INSTALL FRONT AXLE ASSY LH
    1. Install the 2 bolts, nuts and front axle assy LH to the shock absorber.

      Torque: 153 N.m (1,560 kgf.cm, 113 ft.lbf)

      NOTE: Only when reusing the bolts and nuts, apply engine oil to the screw part of the nuts.
    2. Push the front axle assy toward the outside of the vehicle, fit the splined part of the drive shaft assy to that of the front axle assy, insert the drive shaft assy into the front axle assy.
    Fig 12: Installing Front Axle Assy LH
    G02899401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not push out the front axle assy excessively.
    • Be careful not to damage the drive shaft outboard joint boot.
    • w/ ABS: Be careful not to damage the speed sensor rotor.
  21. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  22. INSTALL TIE ROD END SUB-ASSY LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  23. INSTALL FRONT STABILIZER LINK ASSY LH (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  24. INSTALL FRONT DISC
  25. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
    1. Install the brake caliper assy LH with the 2 bolts to the steering knuckle.

      Torque: 106.8 N.m (1,089 kgf.cm, 79 ft.lbf)

    Fig 13: Installing Brake Caliper Assy LH With Bolts To Steering Knuckle
    G02899402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT AXLE HUB LH NUT
    1. Using a socket wrench (30 mm), install a new hub LH nut.

      Torque: 216 N.m (2,203 kgf.cm, 159 ft.lbf)

  27. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
  28. REMOVE FRONT DISC
  29. INSPECT BEARING BACKLASH
    1. Using a dial indicator, check the backlash near the center of the axle hub.

      Maximum: 0.05 mm (0.0020 in.)

    If the backlash exceeds the maximum, replace the front axle hub bearing.

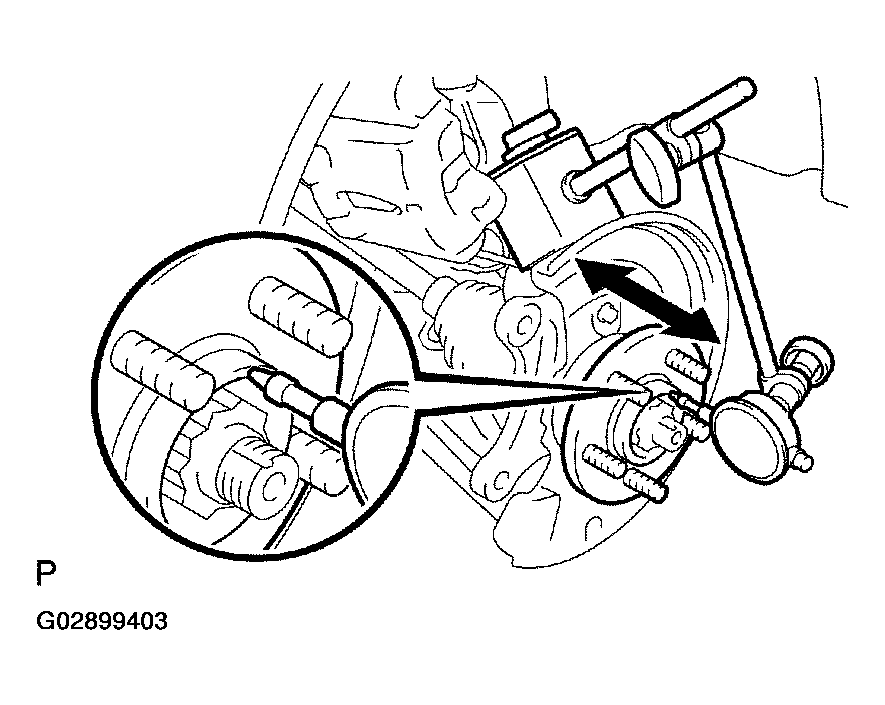

    Fig 14: Using A Dial Indicator Checking Backlash
    G02899403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSPECT AXLE HUB DEVIATION
    1. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.

      Maximum: 0.05 mm (0.0020 in.)

    If the backlash exceeds the maximum, replace the front axle hub sub-assy.

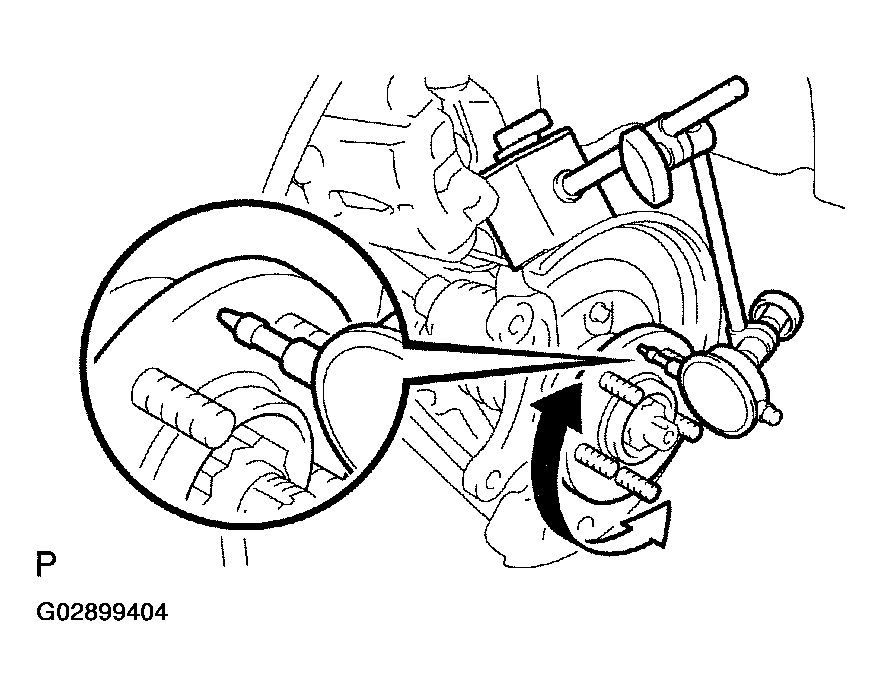

    Fig 15: Checking Deviation At Surface Of Axle Hub Outside Hub Bolt
    G02899404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT DISC
  32. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
  33. INSTALL SPEED SENSOR FRONT LH (W/ ABS) (See  DRIVE SHAFT, PROPELLER SHAFT, AXLE  )
  34. INSTALL FRONT AXLE HUB LH NUT
    1. Using a chisel and a hammer, stake the hub LH nut.

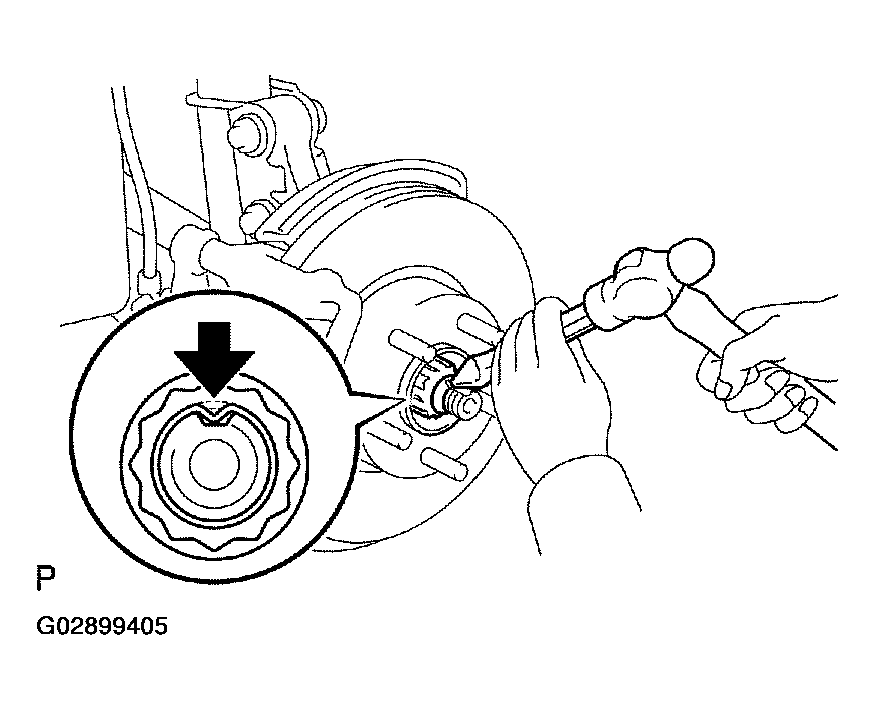

    Fig 16: Using A Chisel And A Hammer, Stake Hub LH Nut
    G02899405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  36. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  ADJUSTMENT  )
  37. CHECK ABS SPEED SENSOR SIGNAL (W/ ABS) (See  PRE-CHECK  )
