On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT AXLE HUB BEARING
1. Remove the front wheel.
2. Separate the front disc brake caliper assy (See REMOVAL & INSTALLATION ).
3. Remove the front disc.
4. Inspect the bearing backlash.
  1. Using a dial indicator, check the backlash near the center of the axle hub.
  Maximum: 0.05 mm (0.0020 in.)

  If the backlash exceeds the maximum, replace the front axle hub bearing.

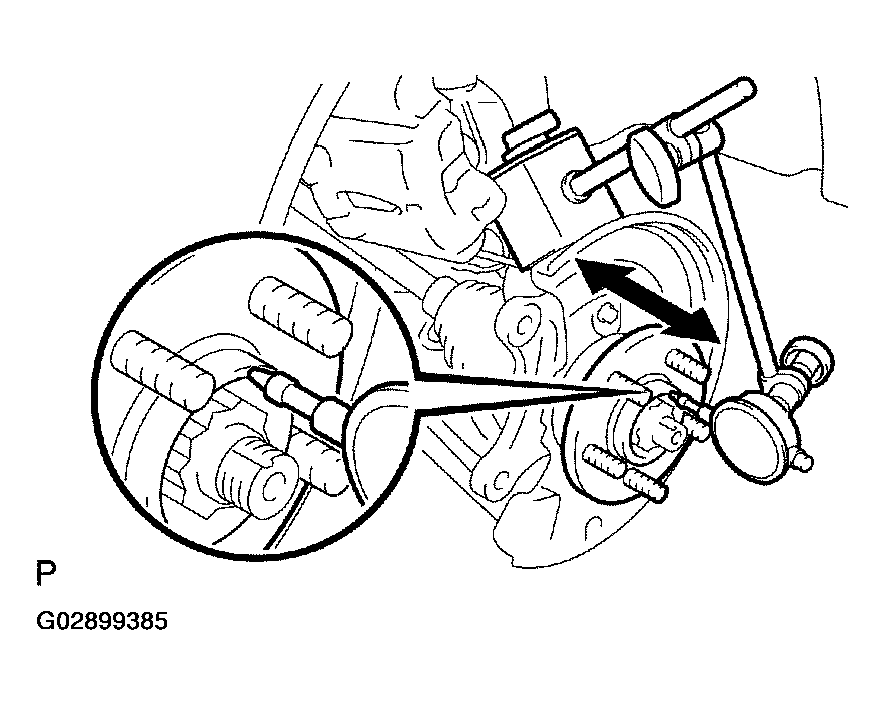

  Fig 1: Checking Backlash Near Center Of Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Inspect the axle hub deviation.
  1. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
  Maximum: 0.05 mm (0.0020 in.)

  If the backlash exceeds the maximum, replace the front axle hub sub-assy.
6. Install the front disc.
7. Install the front disc brake caliper assy (See REMOVAL & INSTALLATION ).
8. Install the front wheel.
  Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

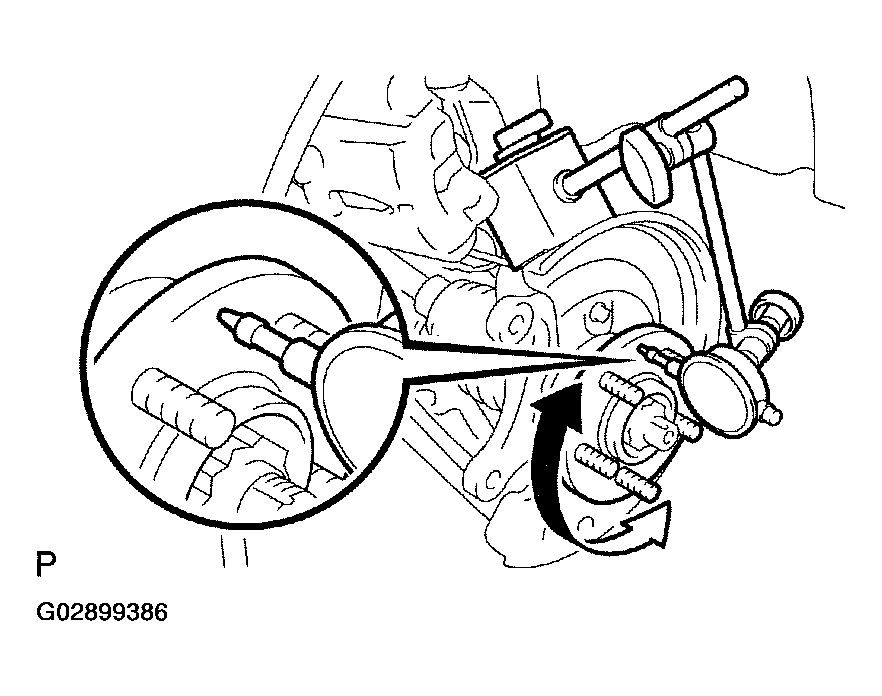

Fig 2: Checking Deviation At Surface Of Axle Hub Outside Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR AXLE HUB BEARING
1. Remove the rear wheel.
2. Remove rear brake drum sub-assy.
3. Inspect the bearing backlash.
  1. Set a dial indicator near the center of the axle hub and check the backlash in the bearing shaft direction.
  Maximum: 0.05 mm (0.0020 in.)

  If the backlash exceeds the maximum, replace the rear axle hub & bearing assy.

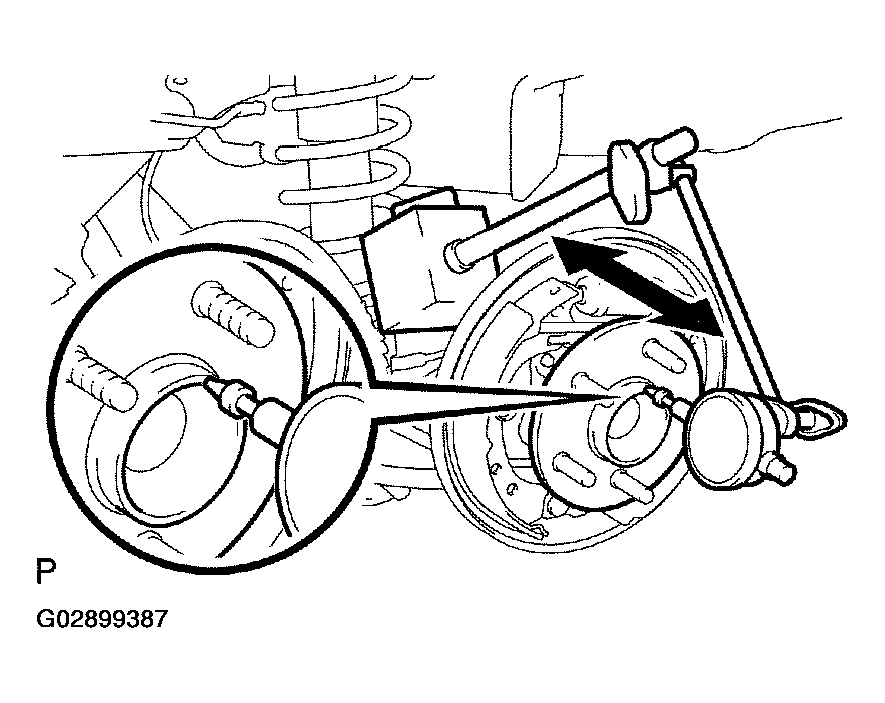

  Fig 3: Checking Backlash In Bearing Shaft Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Inspect the axle hub deviation.
  1. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
  Maximum: 0.07 mm (0.0028 in.)

  If the backlash exceeds the maximum, replace the rear axle hub & bearing assy.
5. Install the rear brake drum sub-assy.
6. Install the rear wheel.
  Torque: 103 N m (1,050 kgf cm, 76 ft Ibf)

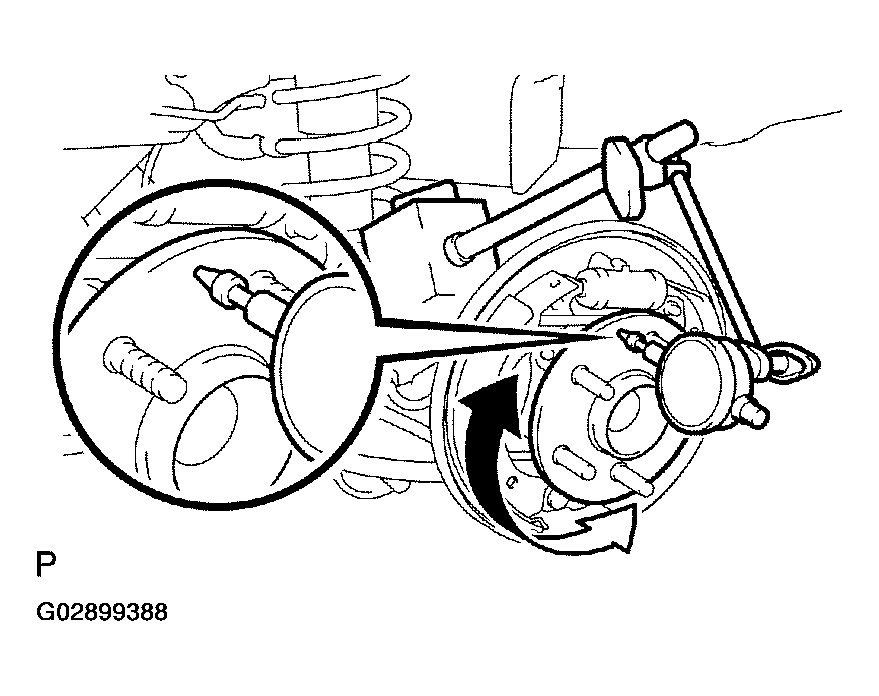

Fig 4: Checking Deviation At Surface Of Axle Hub Outside Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
