Floor Shift ASSY (ATM): Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

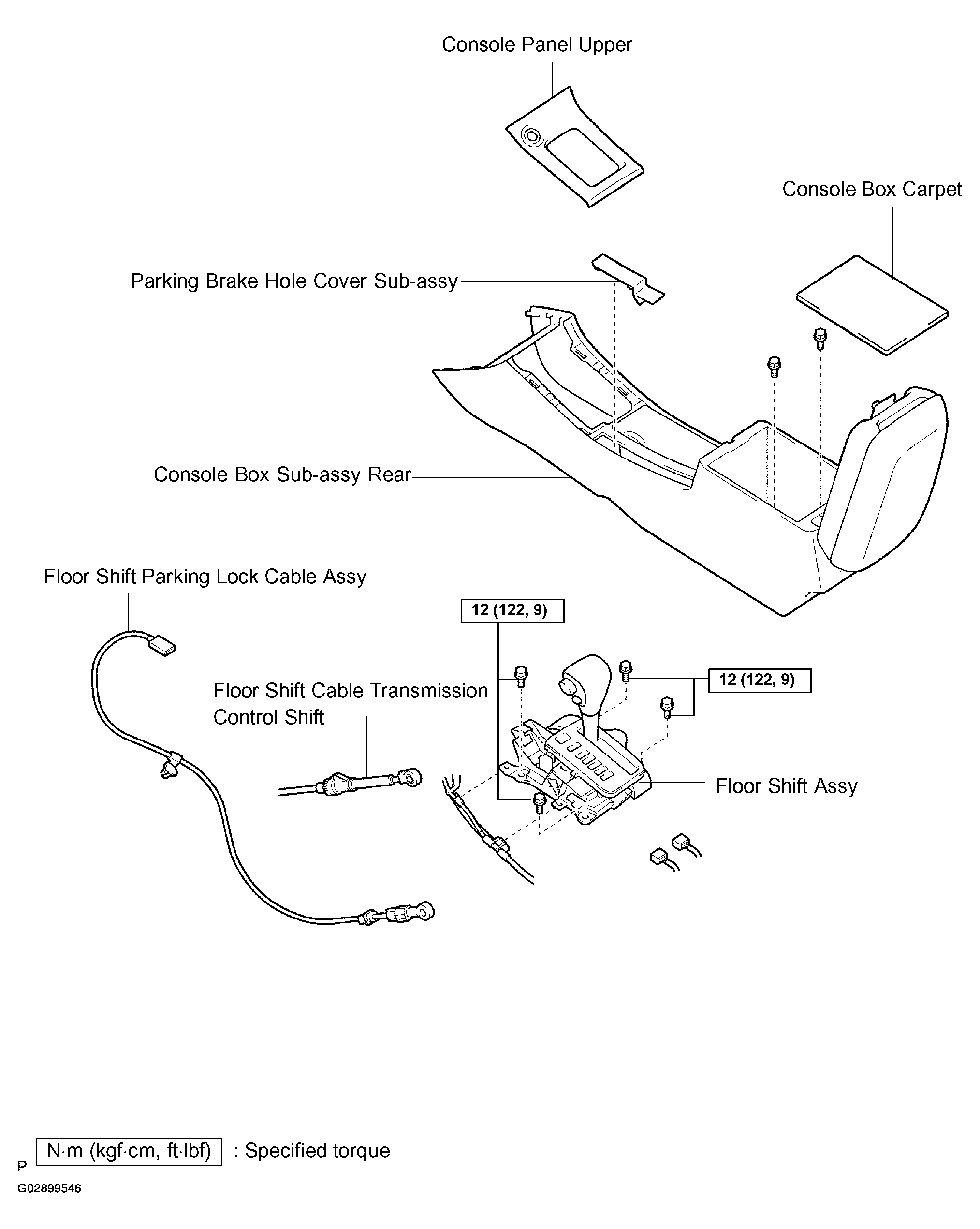

Fig 1: Exploded View Of Floor Shift Assy Components (1 Of 2)
G02899546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

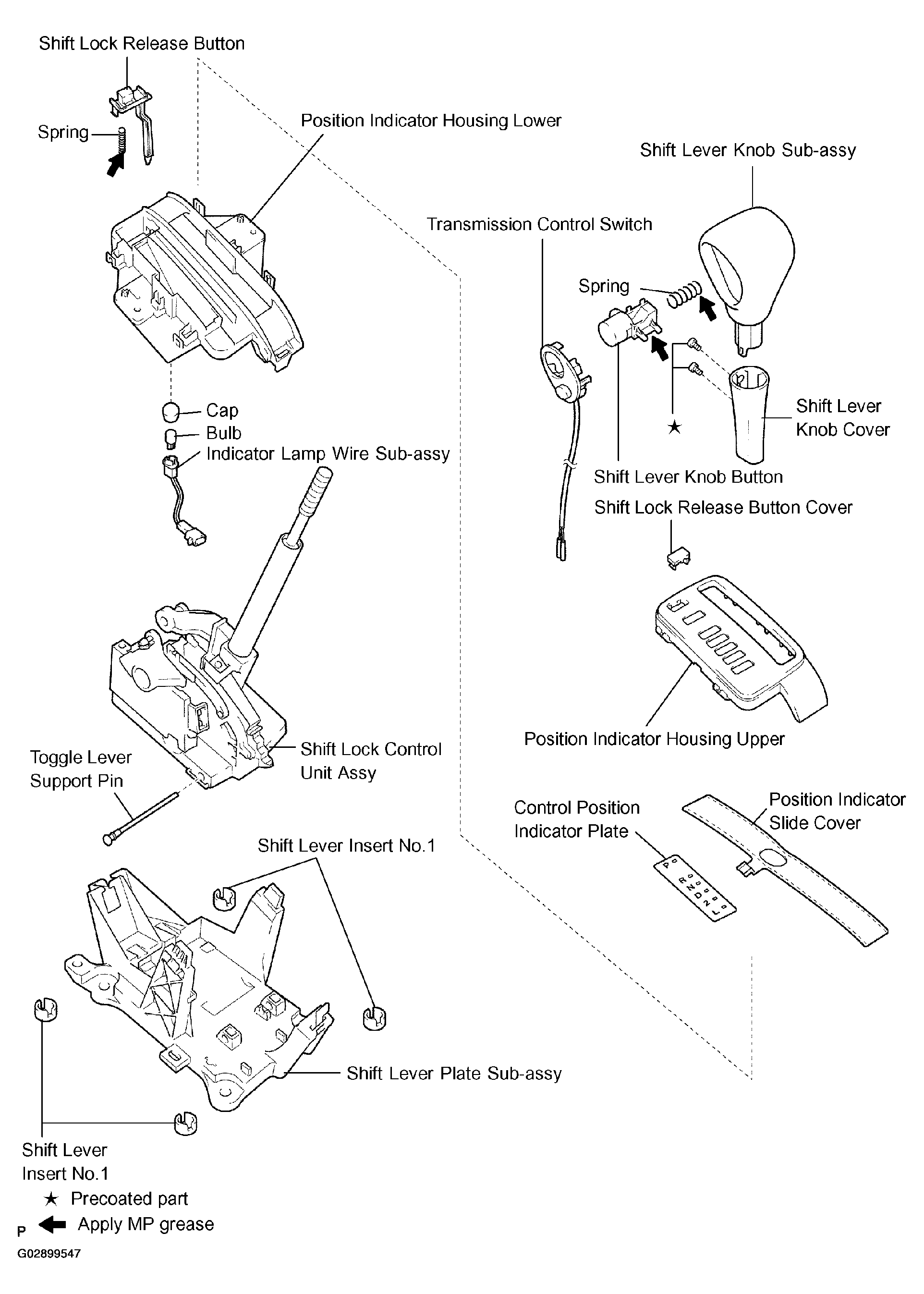

Fig 2: Exploded View Of Floor Shift Assy Components (2 Of 2)
G02899547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
