Floor Shift ASSY (ATM): Adjustment

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SHIFT LEVER POSITION
1. When shifting the shift lever to each position, make sure that it moves smoothly, and the position indicator displays correctly.
  Positions which can be shifted without pressing the shift lever knob button

  R --> N --> D, L --> 2 --> D --> N

  Positions which can be operated only while pressing the shift lever knob button

  D --> 2 --> L, N --> R --> P

  Positions which can be operated only while pressing the shift lever knob button, ignition switch ON and brake pedal depressed

  P --> R
2. Start the engine and make sure that the vehicle moves forward when shifting the lever from N to D position, and moves rearward when shifting to R position.

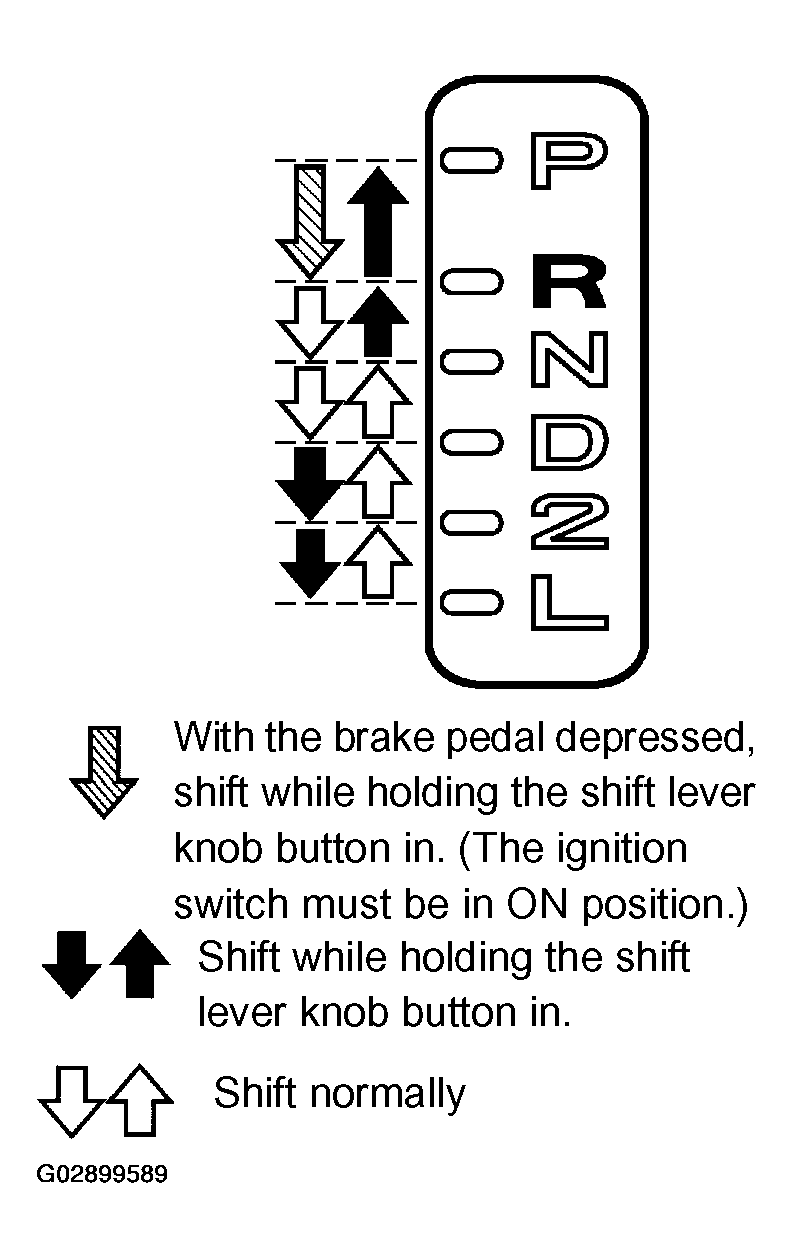

Fig 1: Adjusting Shift Lever Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST SHIFT LEVER POSITION
1. Loosen the nut on the control shaft lever.

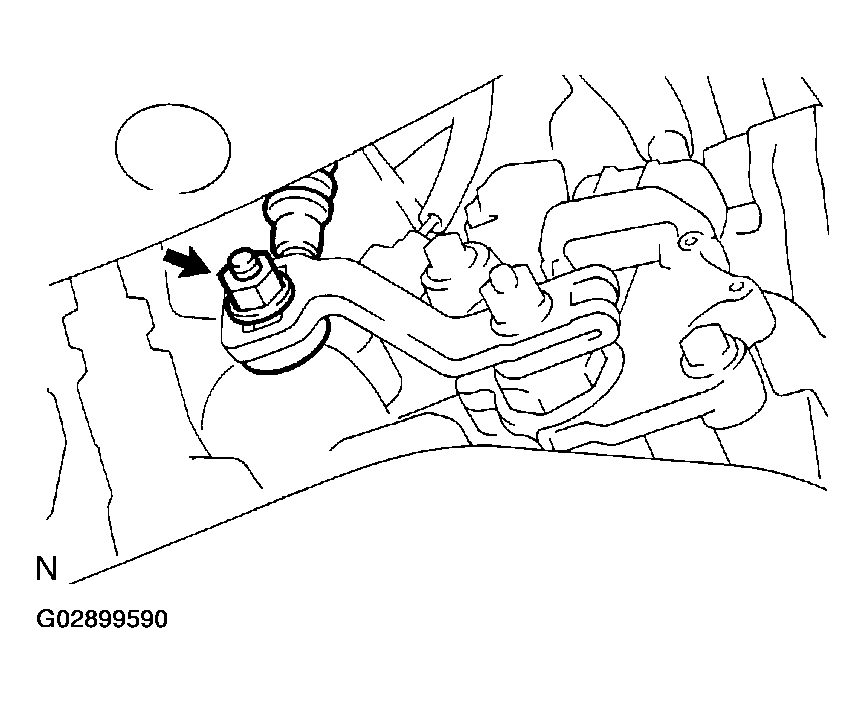

  Fig 2: Loosening Nut On Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the control shaft fully downward.
3. Return the control shaft lever 2 notches to N position.
4. Set the shift lever to N position.
5. While holding the shift lever lightly toward the R position side, tighten the shift lever nut.
  Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
6. Start the engine and make sure that the vehicle moves forward when shifting the lever from N to D position and moves rearward when shifting it to R position.
Fig 3: Returning Control Shaft Lever 2 Notches To N Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
