Timing Chain Or Belt Cover Oil Seal: Replacement

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER RH
REMOVE FRONT WHEEL RH
REMOVE FAN AND GENERATOR V BELT
1. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
2. Carefully return the tensioner to the unloaded position.
Fig 1: Removing Fan And Generator V Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE MOUNTING INSULATOR SUB-ASSY RH
1. Remove the PS oil pump reservoir and put it aside.
2. Place a wooden block between the jack and engine, and set the jack. Then, remove the 4 bolts, the 2 nuts and engine mounting insulator RH.
Fig 2: Placing Wooden Block Between Jack And Engine
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

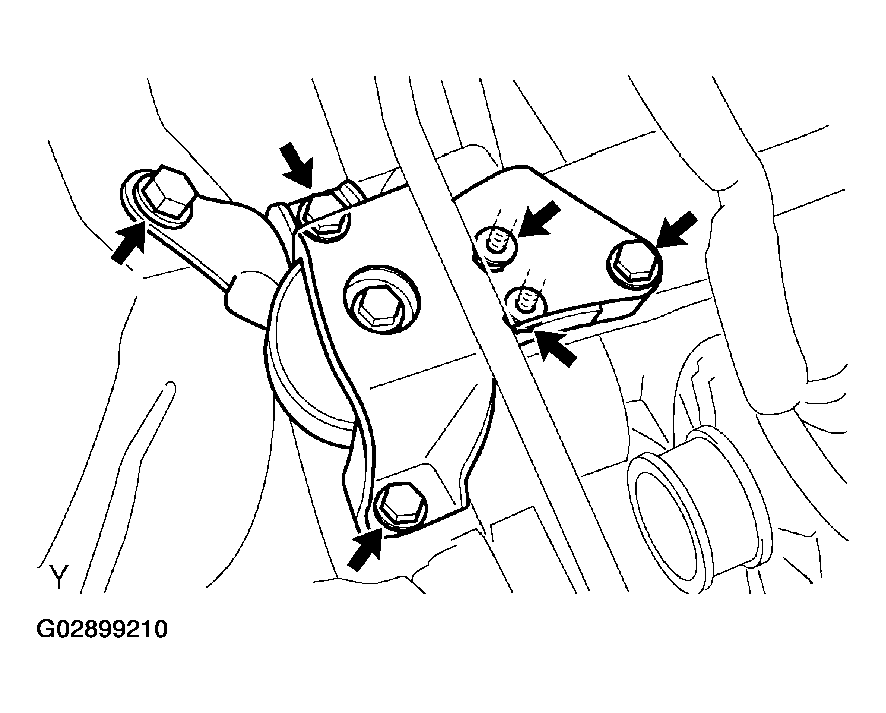

Fig 3: Removing Engine Mounting Insulator Sub-Assy RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT PULLEY
1. Using SST, remove the crankshaft pulley bolt.
  SST 09960-10010 (09962-01000, 09963-01000)
2. Remove the crankshaft pulley from the crankshaft.

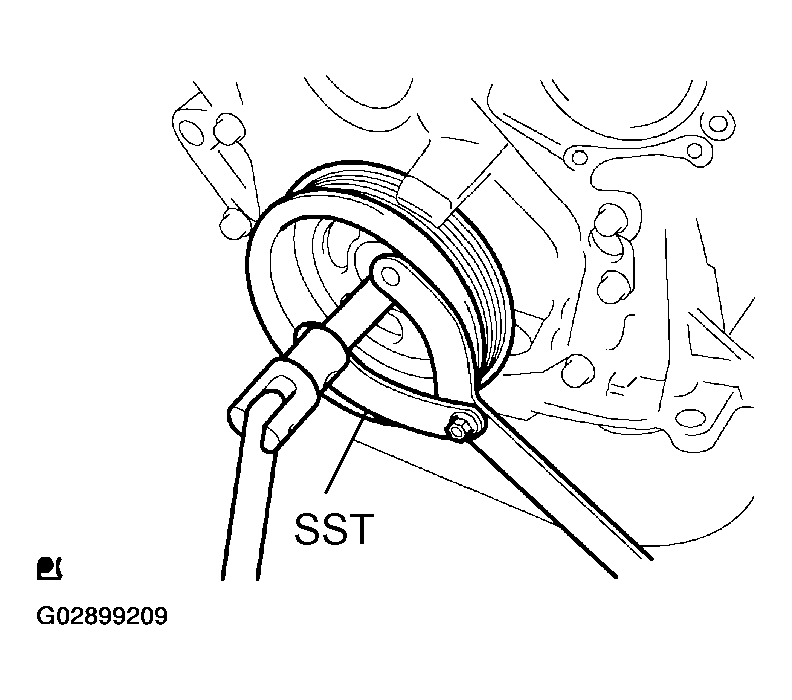

Fig 4: Removing Crankshaft Pulley From Crankshaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING GEAR COVER OIL SEAL
1. Using a knife, cut off the oil seal lip.
2. Using a screwdriver with taping its tip, pry out the oil seal.
NOTE: After the removal, check if the crankshaft is not damaged. If there is, mend it with a sandpaper (#400).

Fig 5: Installing Timing Gear Cover Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING GEAR COVER OIL SEAL
1. Apply MP grease to a new oil seal lip.
  NOTE: Keep the lip off foreign materials.
2. Using SST, tap in the oil seal until its surface is flush with the timing chain cover edge.
  SST 09223-22010
NOTE: Wipe off extra grease on the crankshaft.

Fig 6: Installing Timing Gear Cover Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT PULLEY
1. Align the pulley set key with the key groove of the pulley, and slide on the pulley.
2. Using SST, install the crankshaft pulley bolt.
  SST 09960-10010 (09962-01000, 09963-01000)

  Torque: 138 N.m (1,407 kgf.cm, 102 ft.lbf)

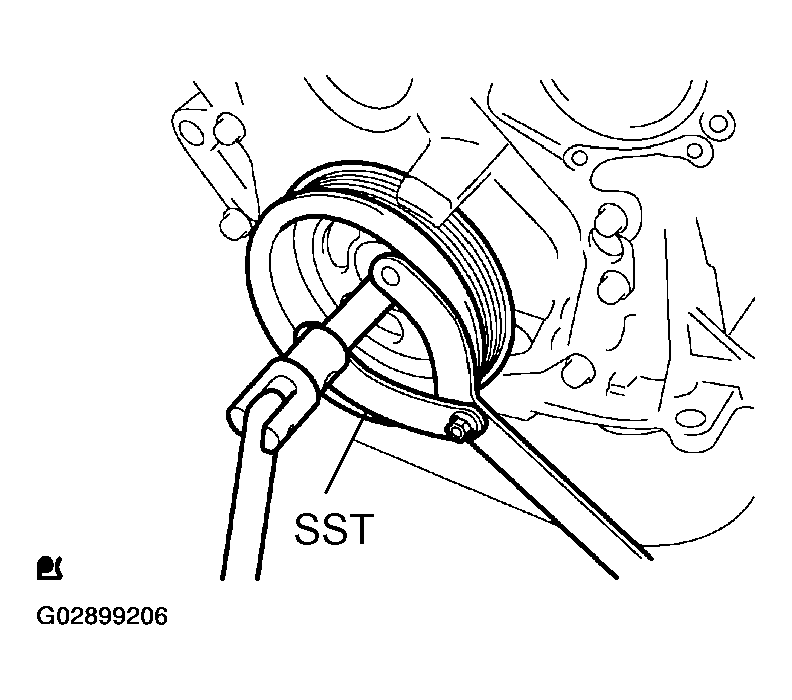

Fig 7: Installing Crankshaft Pulley Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE MOUNTING INSULATOR SUB-ASSY RH
1. Install the engine mounting insulator RH with the 4 bolts and 2 nuts.
  Torque: 52 N.m (530 kgf.cm, 38 ft.lbf)
Fig 8: Installing Engine Mounting Insulator Sub-Assy RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1050 kgf.cm, 76 ft.lbf)
CHECK ENGINE OIL LEAK
