Section 486 (Engine Mechanical Camshaft): Camshaft: Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

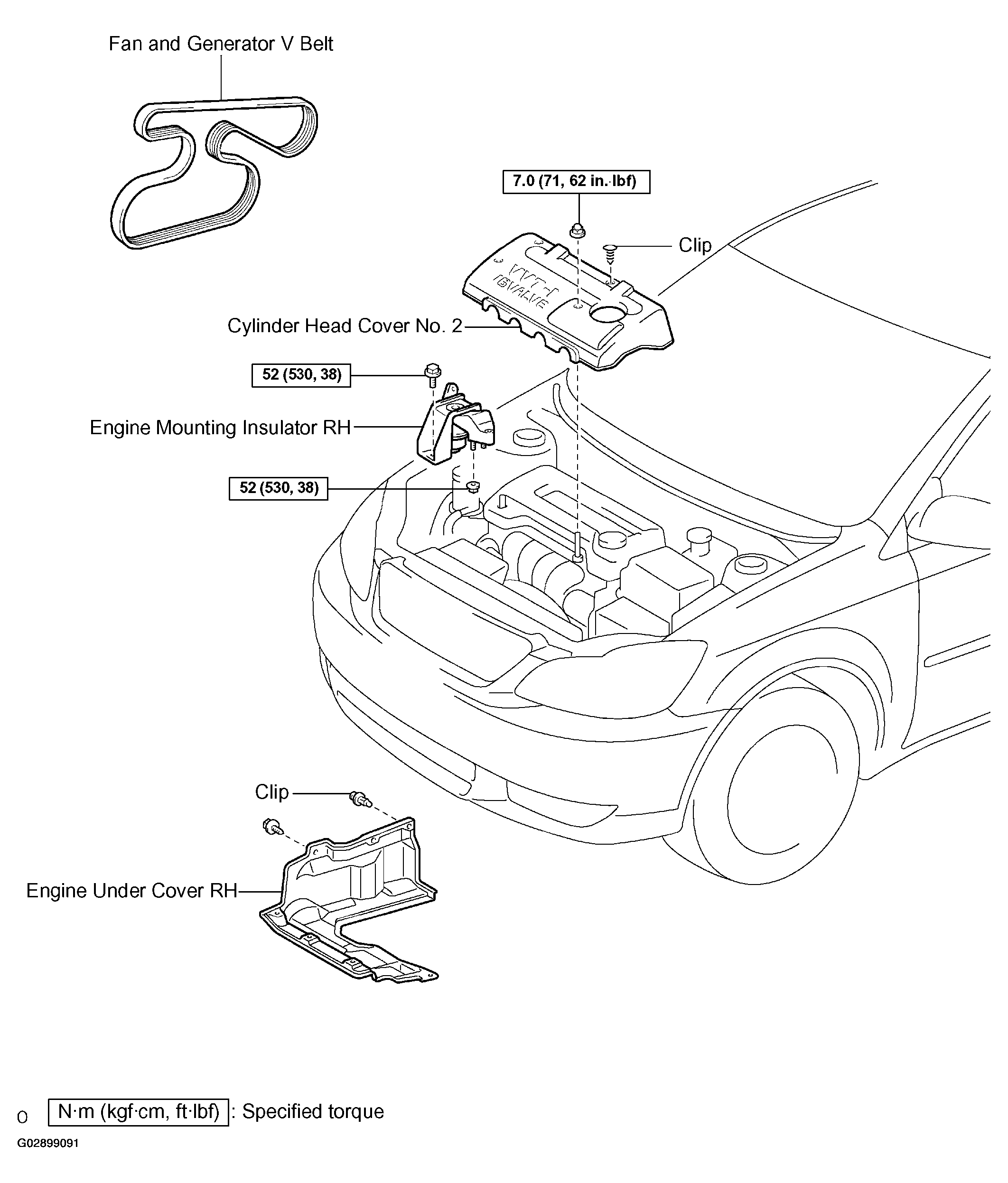

Fig 1: Identifying Camshaft Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

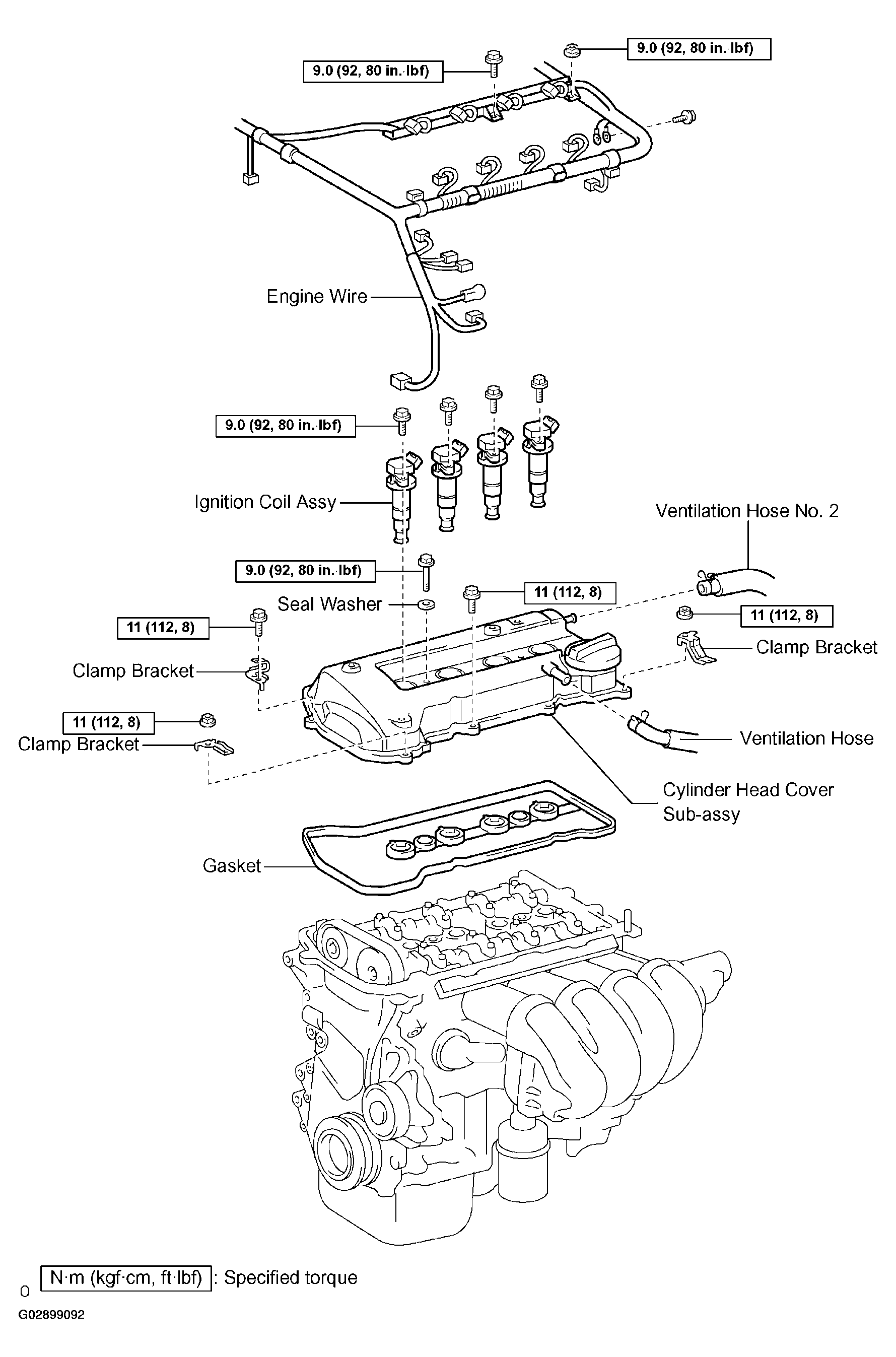

Fig 2: Identifying Camshaft Components (2 Of 3)

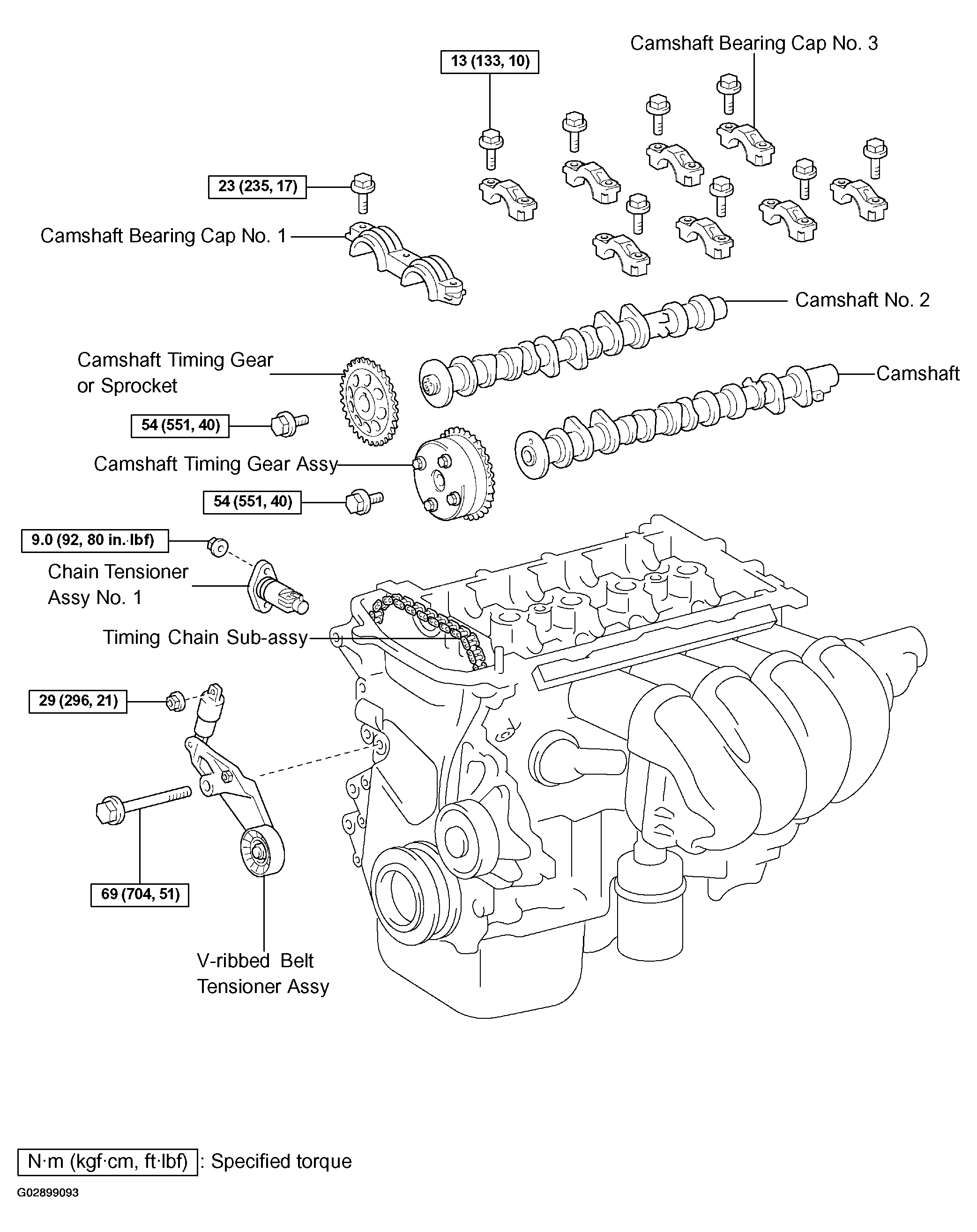

Fig 3: Identifying Camshaft Components (3 Of 3)
