Cruise Control System (April, 2003): Location

WARNING: This page is about a different car, the 2004 Toyota Corolla and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

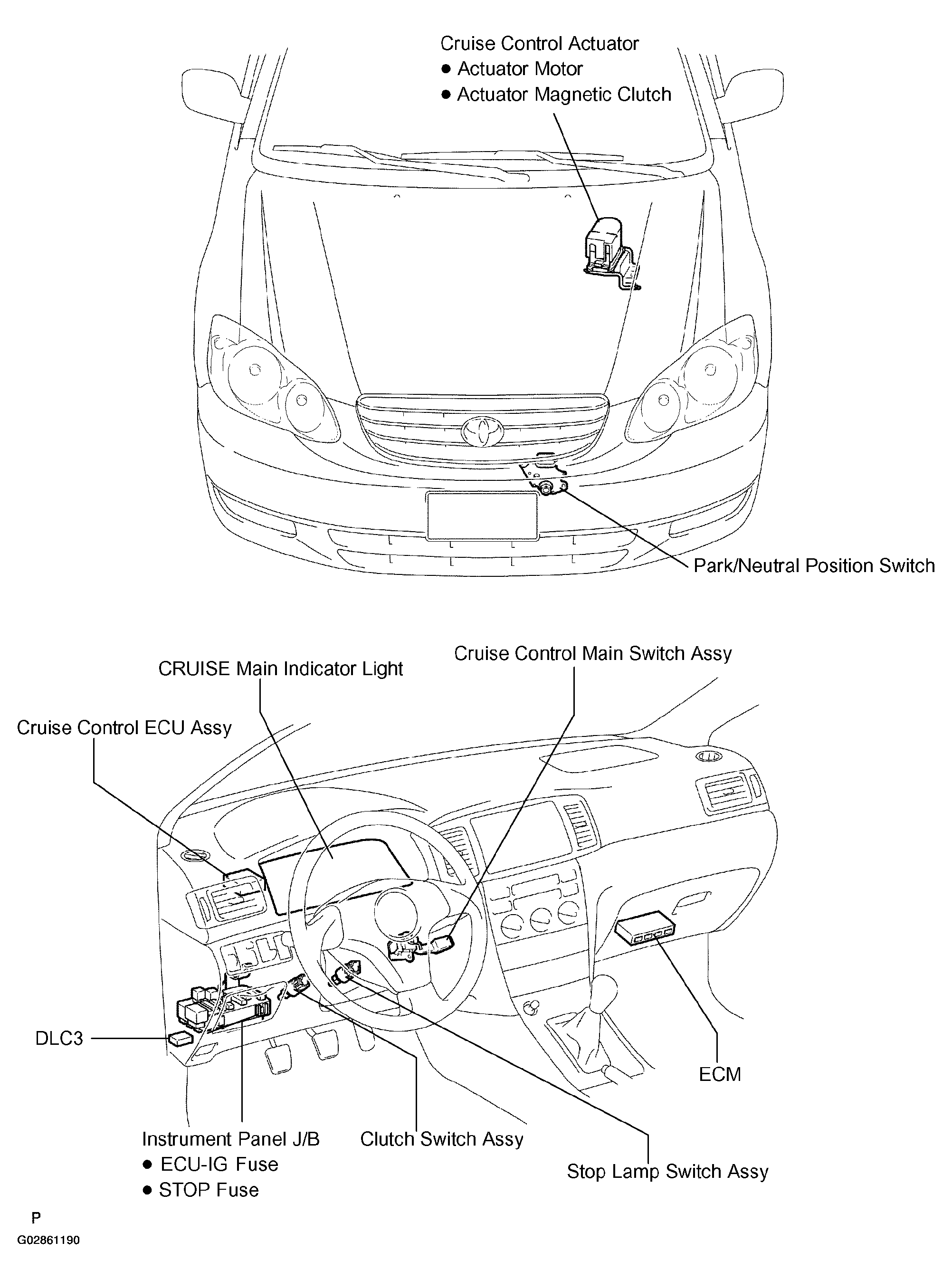

Fig 1: Identifying Component Location Of Cruise Control System
G02861190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
