WARNING: This page is about a different car, the 2004 Toyota Corolla and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

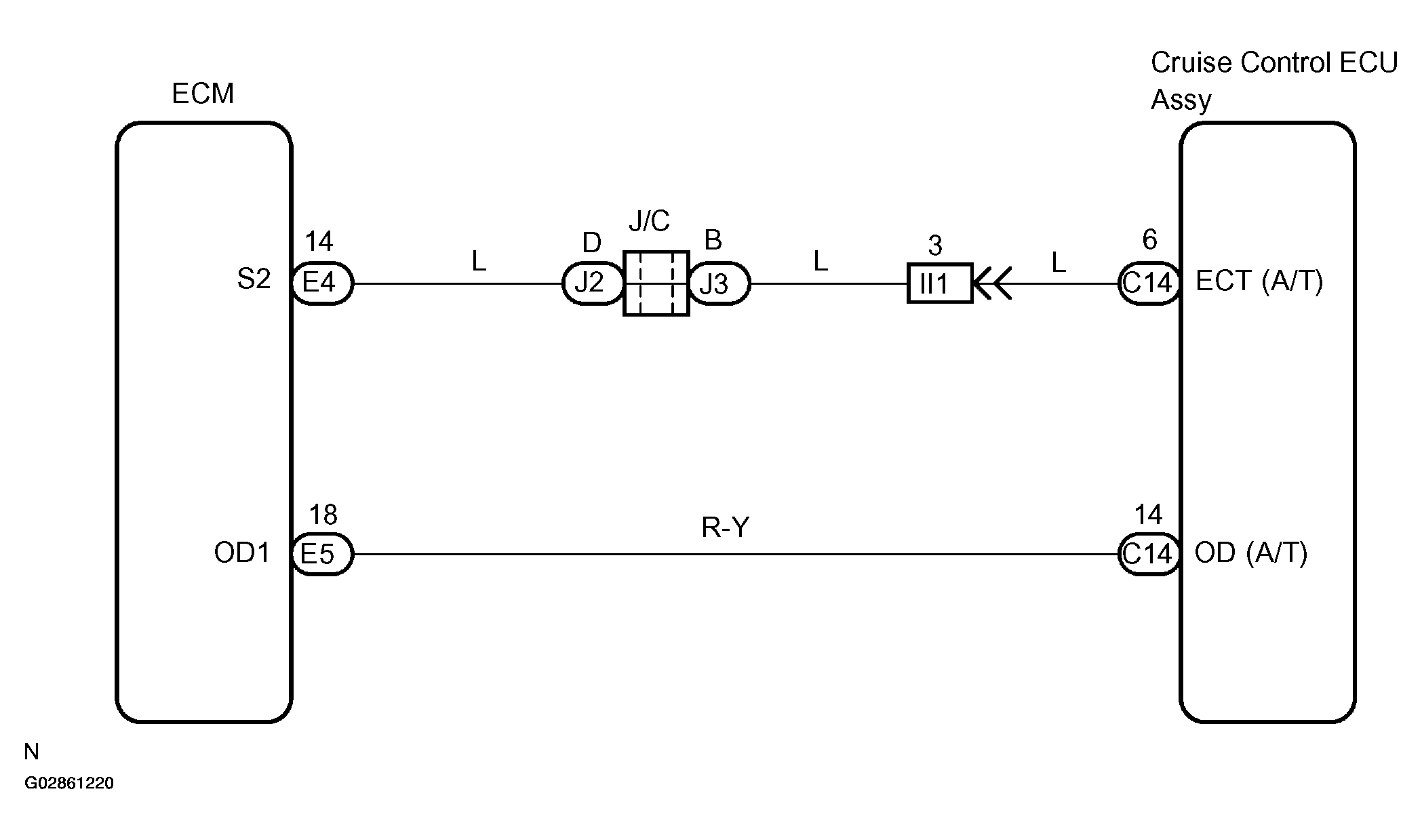

Fig 1: Electronically Controlled Transmission Communication Circuit Wiring Diagram
