Ignition Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

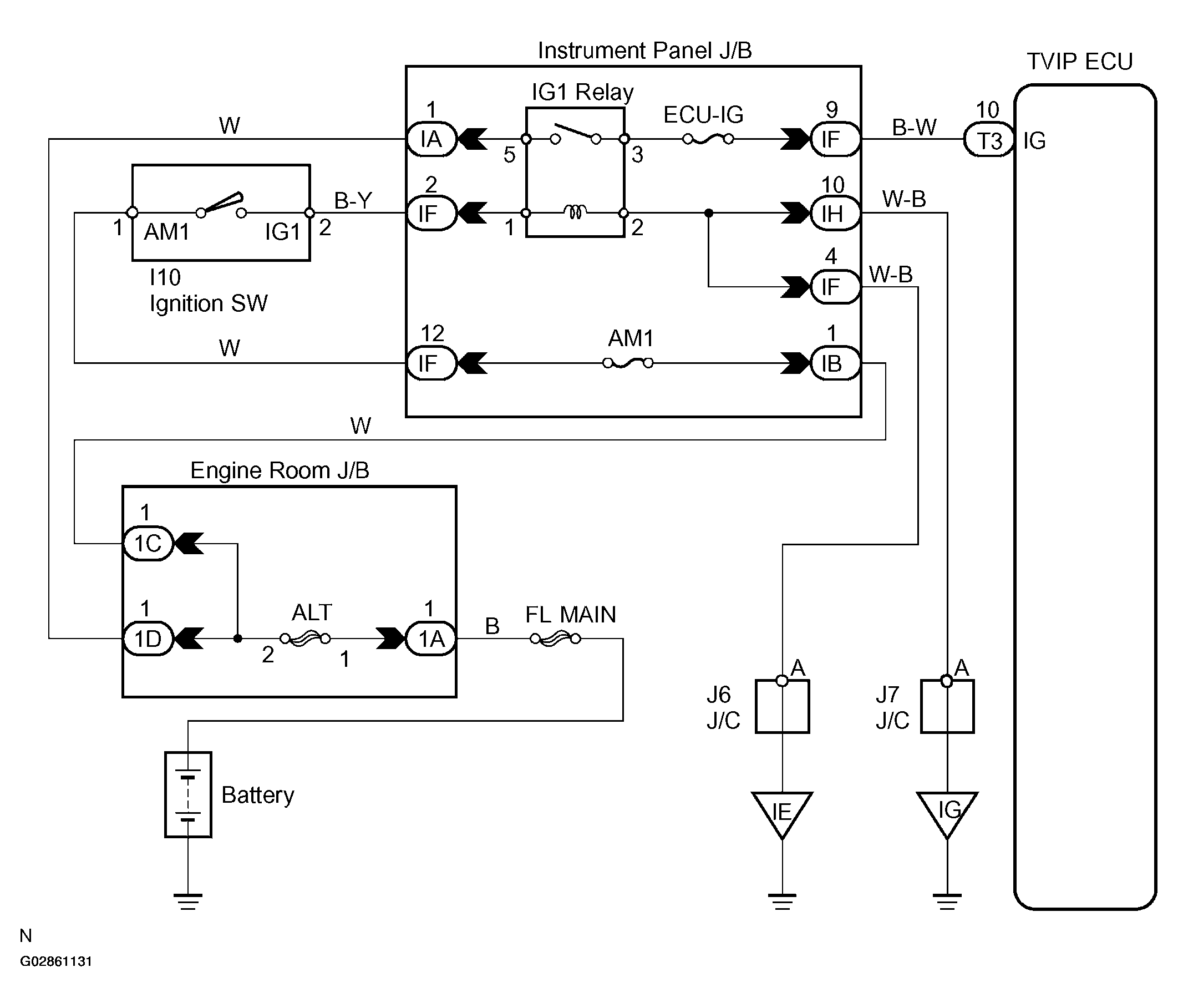

Fig 1: Ignition Switch Circuit Wiring Diagram
G02861131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
