Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK LOW PITCHED HORN ASSY
    1. Connect the positive (+) lead from the battery to the terminal and negative (-) lead to the horn body, and check that the horn blows.
      Fig 1: Checking Low Pitched Horn Assy
      G02861137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE LOW PITCHED HORN ASSY
    2. OK: GO TO NEXT STEP.
  2. CHECK RELAY (Marking: HORN)
    1. Remove the relay from the engine room J/B.
    2. Check the horn relay continuity, as shown in the illustration and table.

      Standard:

      TERMINAL CONDITION SPECIFICATION

      Terminal No. Condition Specified condition
      1 <=> 2 Constant Continuity
      3 <=> 5 Apply B+ between terminals 1 and 2 Continuity
      Fig 2: Identifying Relay
      G02861138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE RELAY
    2. OK: GO TO NEXT STEP.
  3. CHECK WIRE HARNESS (TVIP ECU <=> ENGINE ROOM J/B)
    1. Remove the horn relay from the engine room J/B.
    2. Check the continuity between the terminals of the TVIP ECU and engine room J/B connectors, as shown in the illustration and table.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Symbols (Terminal No.) (TVIP ECU <=> Engine room J/B) Specified condition
      HORN (T3-5) <=> 2(1) Continuity
      (1) Horn relay terminal.

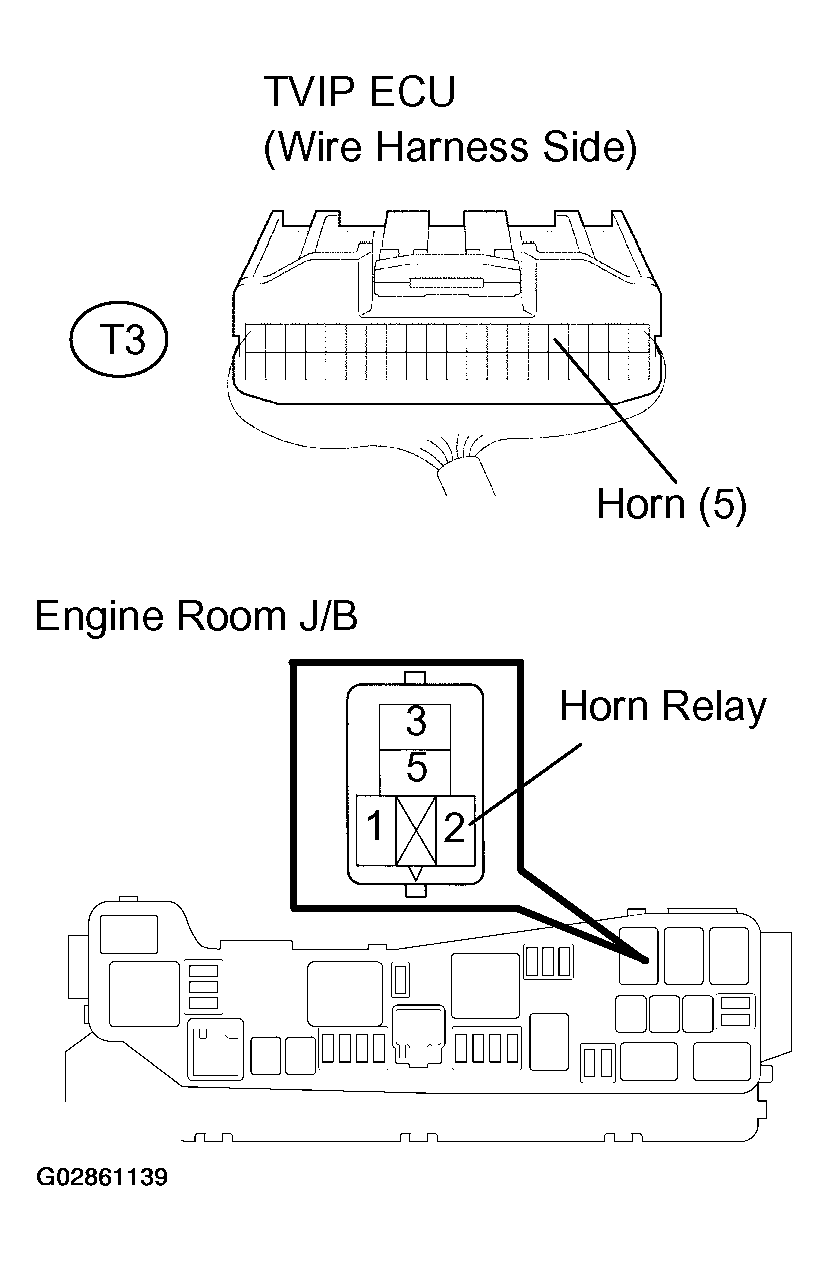

      Fig 3: Removing Horn Relay From Engine Room J/B
      G02861139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP.
  4. CHECK WIRE HARNESS (ENGINE ROOM J/B <=> HORN)
    1. Check the continuity between the terminals of the engine room J/B and horn connectors, as shown in the illustration and table.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Symbols (Terminal No.) (Engine room J/B <=> Horn) Specified condition
      3(1) <=> Horn (H6-1) Continuity
      (1) Horn relay terminal.

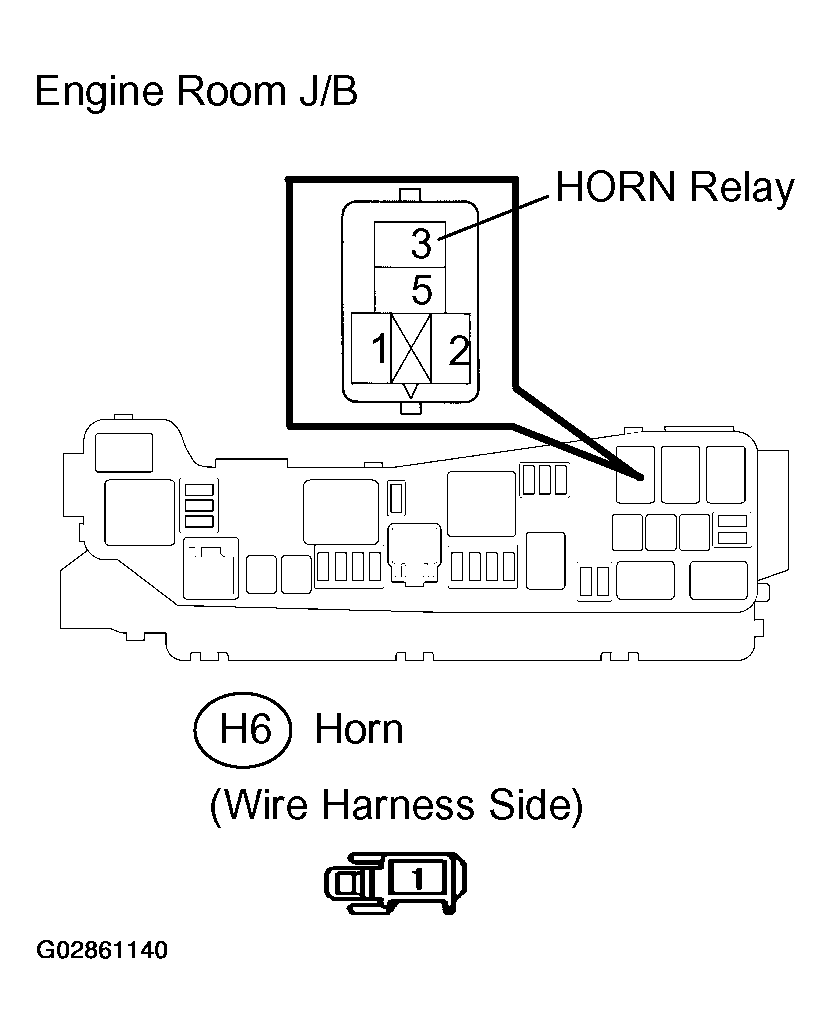

      Fig 4: Identifying Wire Harness (Engine Room J/B - Horn)
      G02861140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: CHECK AND REPLACE TVIP ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
