Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT UNLOCK WARNING SWITCH ASSY
1. Remove the unlock warning switch assy.
2. Inspect the unlock warning switch assy continuity, as shown in the illustration and table.
  Standard:

  Fig 1: Continuity Warning Switch Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Inspecting Unlock Warning Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE UNLOCK WARNING SWITCH ASSY
2. OK: GO to Next step.
CHECK WIRE HARNESS (UNLOCK WARNING SWITCH <=> INSTRUMENT PANEL J/B)
1. Disconnect the unlock warning switch assy and instrument panel J/B connectors.
2. Check the continuity between the terminals of the unlock warning switch assy and instrument panel J/B connectors, as shown in the illustration and table.
  Standard (Check for open):

  Fig 3: Continuity Terminals Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

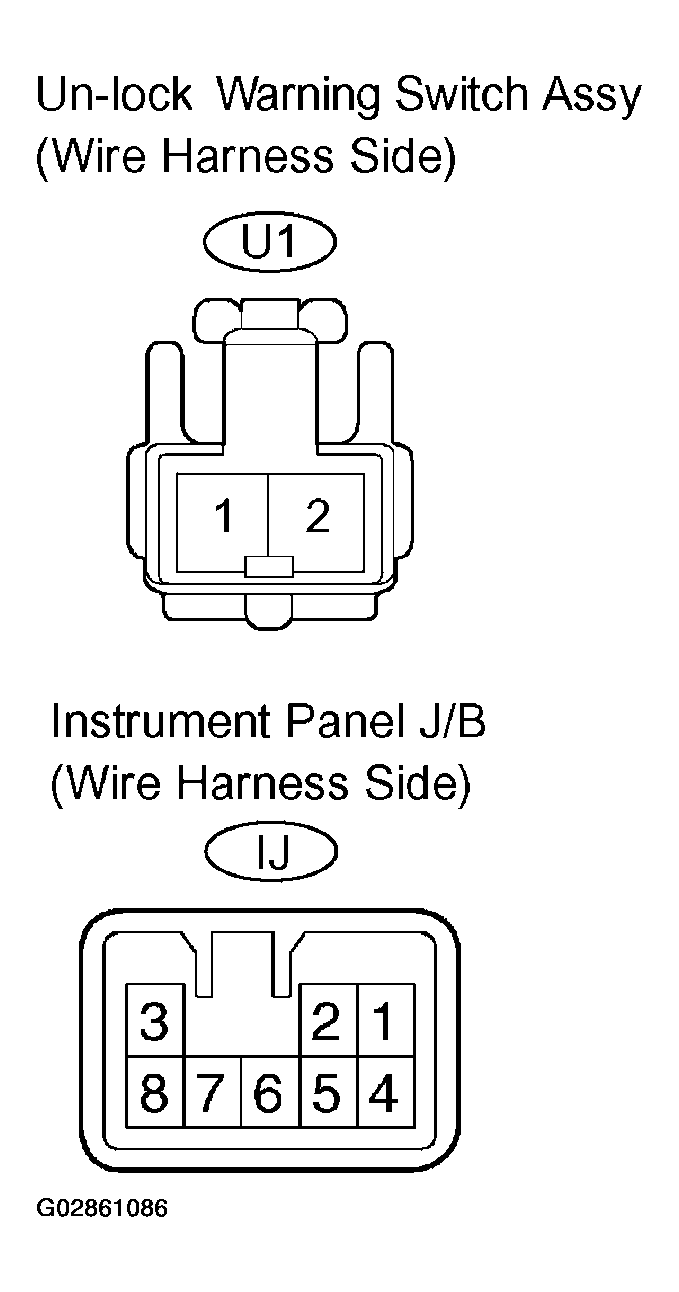

  Fig 4: Locating Unlock Warning Switch Assy And Instrument Panel J/B Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: GO to Next step.
INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER'S SIDE)
1. Remove the courtesy lamp switch.
2. Inspect the courtesy lamp switch continuity, as shown in the illustration and table.
  Standard:

  Fig 5: Courtesy Lamp Switch Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Removing Courtesy Lamp Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
2. OK: GO to Next step.
CHECK WIRE HARNESS (FRONT DOOR COURTESY LAMP SWITCH ASSY [DRIVER'S SIDE <=> INSTRUMENT PANEL J/B)
1. Disconnect the courtesy lamp switch and instrument panel J/B connectors.
2. Check the continuity between the terminals of the courtesy lamp switch and instrument panel J/B connectors, as shown in the illustration and table.
  Standard (Check for open):

  Fig 7: Courtesy Lamp Switch Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

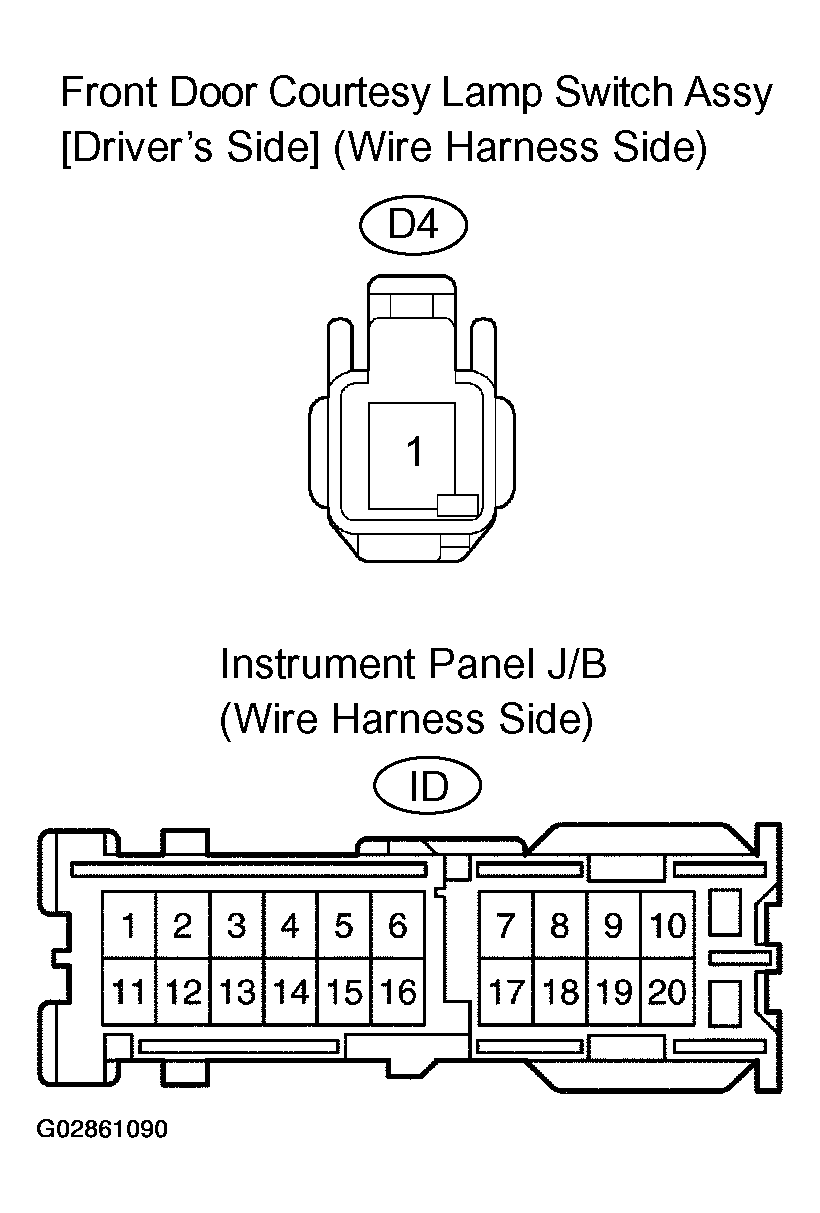

  Fig 8: Locating Courtesy Lamp Switch And Instrument Panel J/B Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: REPLACE INTEGRATION RELAY
