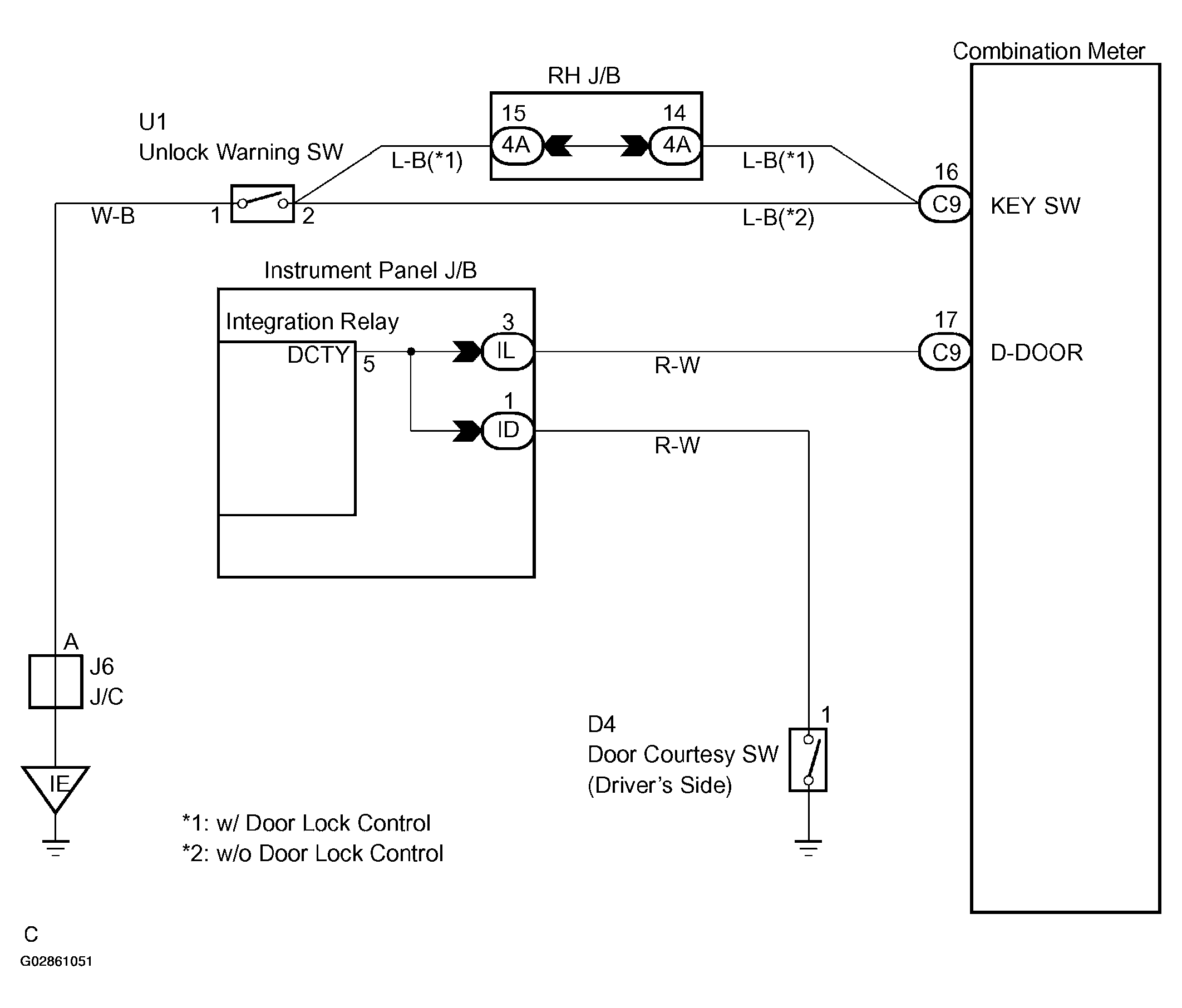

Warning Buzzer Does Not Sound (Key Reminder Warning, Light Reminder Warning): Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
