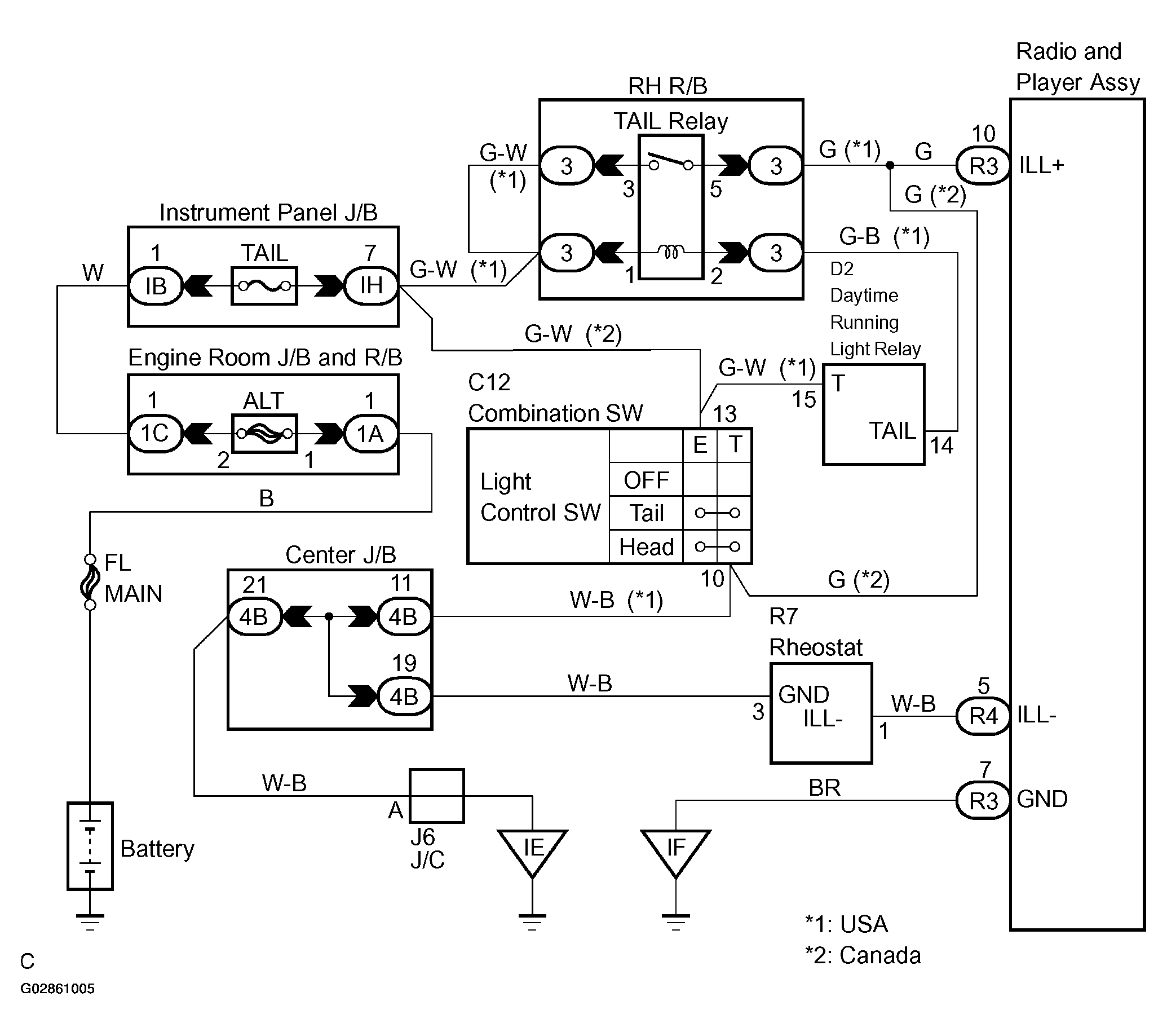

Turning On Light Switch Does Not Light Up Night Time Illumination Of Radio Receiver: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
