Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY

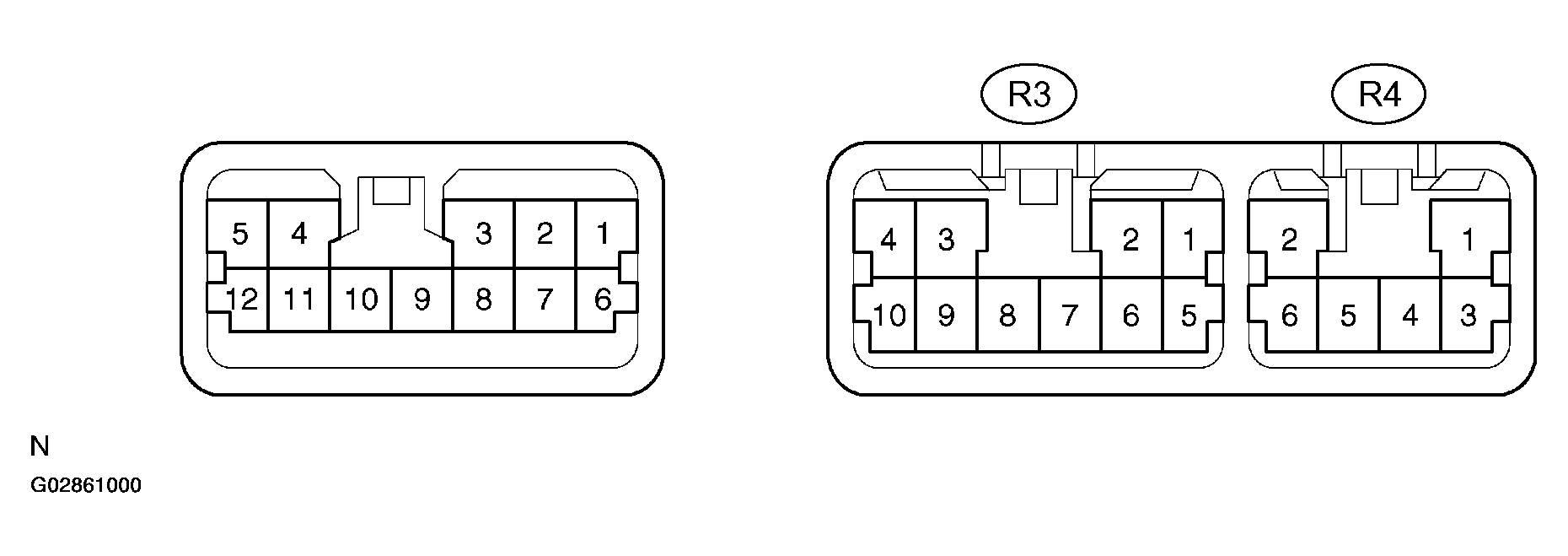

Fig 1: Locating Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

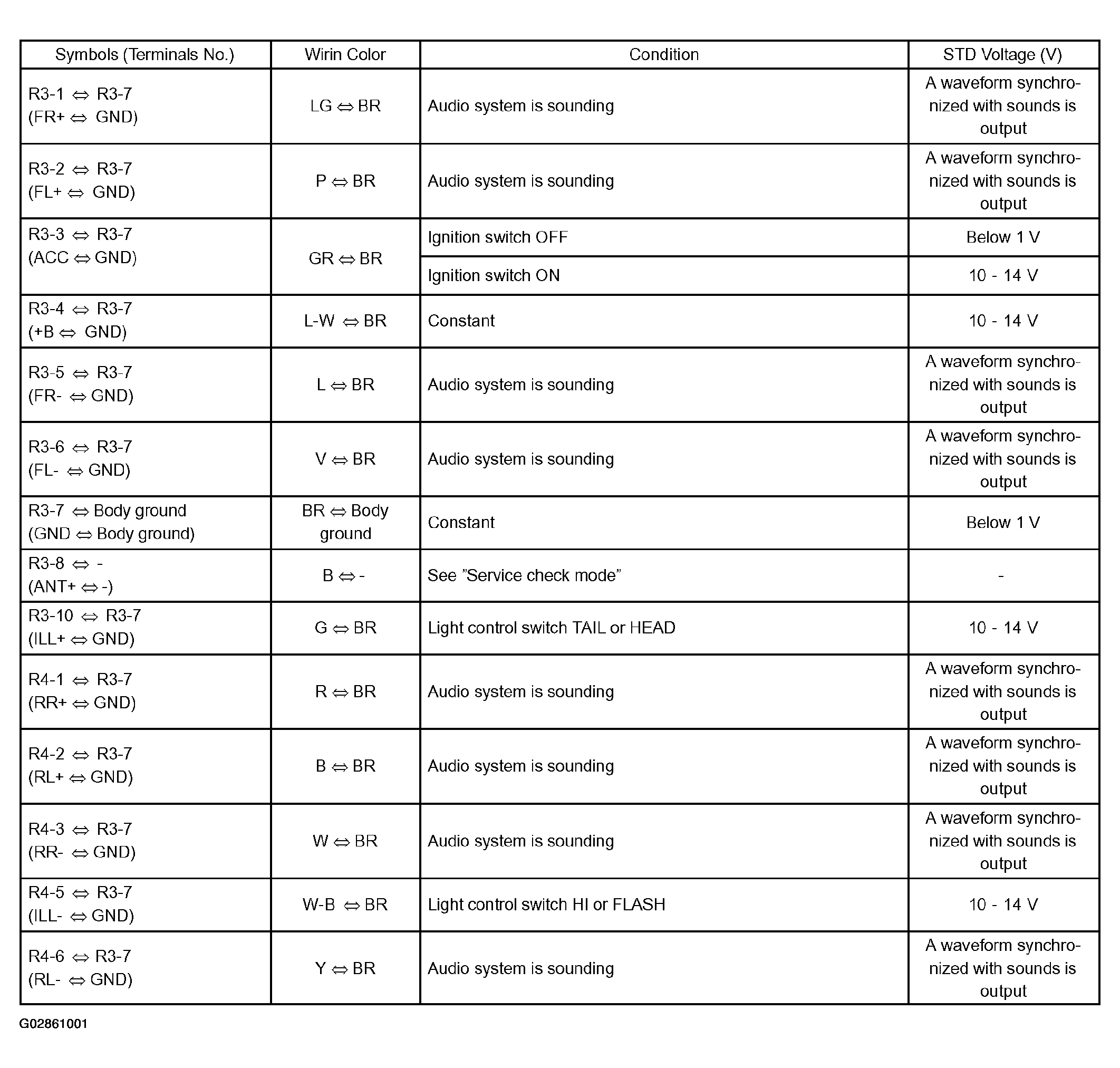

Fig 2: Radio Receiver Assy Connector Terminals Voltage Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
