Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- ADJUST SOUND QUALITY
- Adjust the sound quality.
- Operate the radio receiver assy to adjust the sound quality.
Standard: malfunction disappear.
- Operate the radio receiver assy to adjust the sound quality.
- OK: BAD SOUND QUALITY
- NG:
- Adjust the sound quality.
- COMPARE IT WITH ANOTHER CAR OF SAME MODEL
- Compare it with another vehicle of the same model.
- Compare with the vehicle of the same type which does not have a trouble to see if there is any difference in the condition of trouble occurrence.
Standard: No difference found.
- Compare with the vehicle of the same type which does not have a trouble to see if there is any difference in the condition of trouble occurrence.
- OK: SETTING
- NG:
- Compare it with another vehicle of the same model.
- CHECK HARNESS AND CONNECTOR (BETWEEN RADIO RECEIVER ASSY AND SPEAKER)
- NG: REPAIR OF? REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP.
- INSPECT FRONT NO.1 SPEAKER ASSY
- Preparation for Check
- Disconnect the connector of the speaker.
- Resistance Check
- Check the resistance between the terminals of the speaker.NOTE: The speaker should not be removed for checking.
Standard value: 4 Ω
- NG: REPLACE FRONT NO.1 SPEAKER ASSY
- OK: GO TO NEXT STEP.
- Preparation for Check
- INSPECT FRONT NO.2 SPEAKER ASSY
- Check that malfunction disappear when a known good speaker is installed.
Standard: malfunction disappear.
HINT:
Connect the all connectors of speakers.
- NG: REPLACE FRONT NO.2 SPEAKER ASSY
- OK: GO TO NEXT STEP.
- Check that malfunction disappear when a known good speaker is installed.
- INSPECT REAR SPEAKER ASSY
- Preparation for Check
- Disconnect the connector of the speaker.
- Resistance Check
- Check the resistance between the terminals of the speaker.
NOTE: The speaker should not be removed for checking.Standard value: 6 Ω
- NG: REPLACE REAR SPEAKER ASSY
- OK: GO TO NEXT STEP.

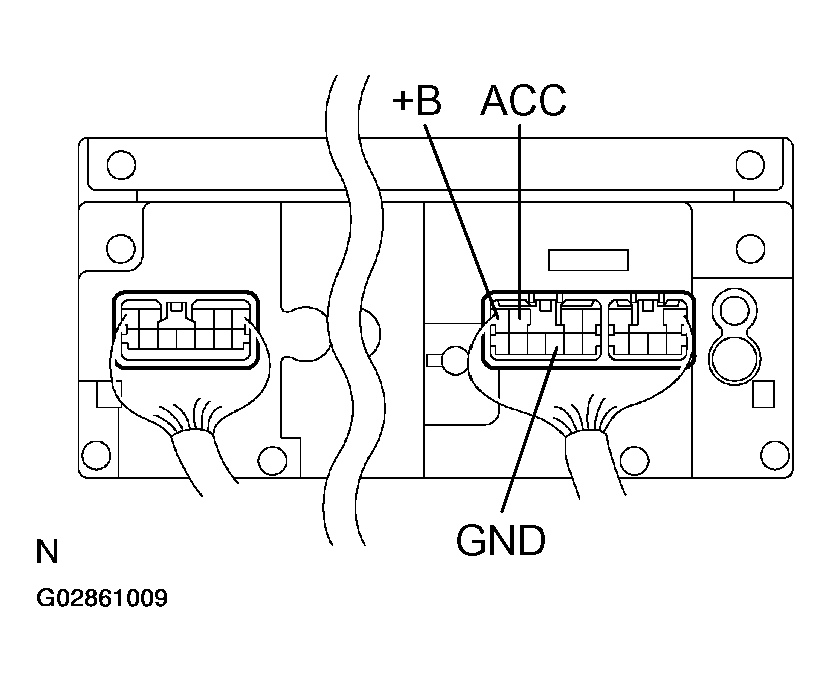

- INSPECT RADIO RECEIVER ASSY (+B, ACC, GND)
- Check that the continuity between terminals at each condition, as shown in the chart.
Standard:
RADIO RECEIVER ASSY CONNECTOR TERMINAL CONTINUITYTester connection Condition Specified condition GND-Body ground Constant Continuity - Check that the voltage between terminals at each condition, as shown in the chart.
Standard:
RADIO RECEIVER ASSY CONNECTOR TERMINAL VOLTAGETester connection Condition Specified condition +B-GND Constant 10-14 V ACC-GND Ignition switch ACC or ON 10-14V
- OK: CHECK AND REPLACE RADIO RECEIVER ASSY
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- Preparation for Check
