Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK IF RADIO AUTO-SEARCH FUNCTIONS PROPERLY
    1. Check if the radio auto-search function properly.
      1. Perform the auto-research of the radio and check that the operation is normal.

        Standard: malfunction disappear.

    1. NG: GO to step   5
    2. OK: GO TO NEXT STEP.
  2. PRESS "EJECT" AND CHECK OPERATION
    1. Press "EJECT" and check the operation.
      1. Press the CD EJECT switch of the radio receiver assembly for 2 sec or more to see if the CD is ejected.

        Standard: CD is ejected.

      Reference:

      If the CD is not ejected, send the vehicle for repair. Do not try to drag it out by force.

    1. NG: CHECK AND REPLACE RADIO RECEIVER ASSY
    2. OK: GO TO NEXT STEP.
  3. CHECK IF A PROPER CD IS INSERTED
    1. Check that a proper CD is inserted.
      1. Check that in what conditions the sound skipping occurs.

        Standard: Driving on the bad road.

    1. NG: CD FAULTY
    2. OK: GO TO NEXT STEP.
  4. REPLACE CD WITH ANOTHER AND RECHECK
    1. Replace the CD with another and recheck.
      1. Check the installation condition of the radio receiver assembly.

        Standard: Installed properly.

    1. OK: CD FAULTY
    2. NG:
  5. INSPECT RADIO RECEIVER ASSY (+B, ACC, GND)
    1. Check that the continuity between terminals at each condition, as shown in the chart.

      Standard:

      RADIO RECEIVER ASSY CONNECTOR TERMINAL CONTINUITY

      Tester connection Condition Specified condition
      GND-Body ground Constant Continuity

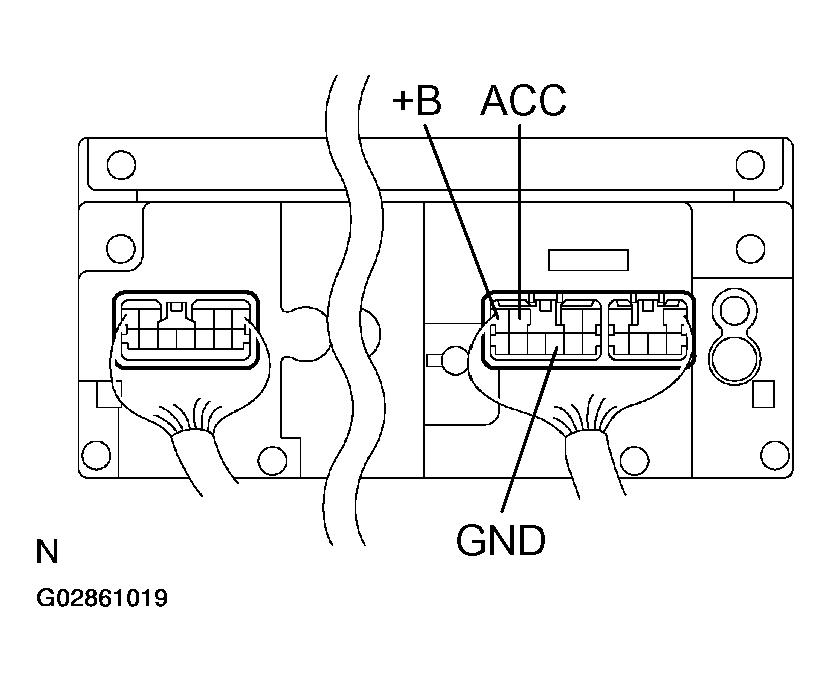

      Fig 1: Identifying Radio Receiver Assy Connector Terminals +B, ACC And GND
      G02861019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the voltage between terminals at each condition, as shown in the chart.

      Standard:

      RADIO RECEIVER ASSY CONNECTOR TERMINAL VOLTAGE

      Tester connection Condition Specified condition
      +B-GND Constant 10-14 V
      ACC-GND Ignition switch ACC or ON 10-14 V
    1. OK: CHECK AND REPLACE RADIO RECEIVER ASSY
    2. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
