Chapter 1: Electronic Circuit Matrix Chart: Notes

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

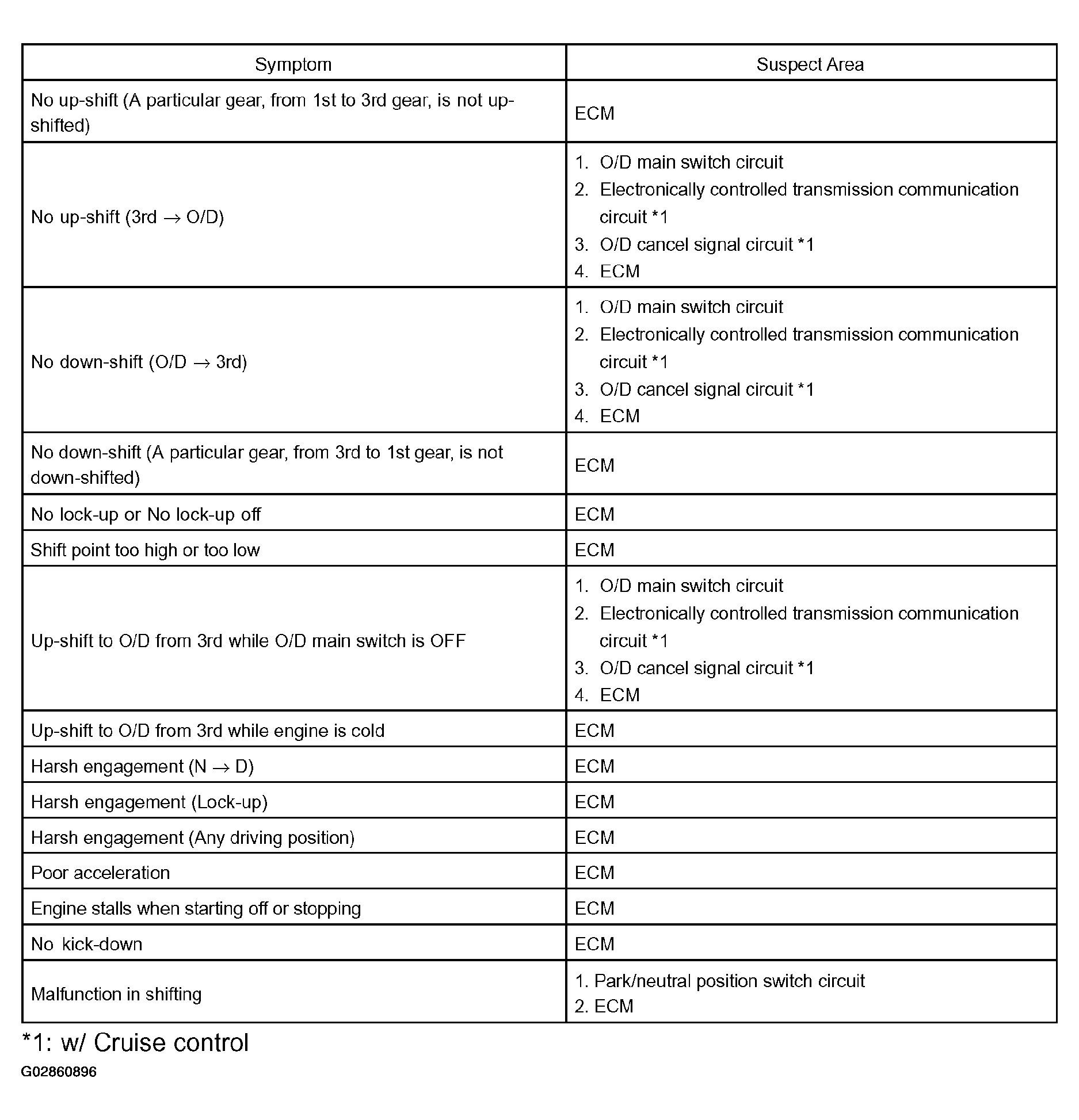

Fig 1: Problem Symptoms Table (1 Of 5)
G02860896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
