Chapter 3: Off-vehicle repair

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

(*: See appropriate AUTOMATIC TRANSMISSION OVERHAUL article.)

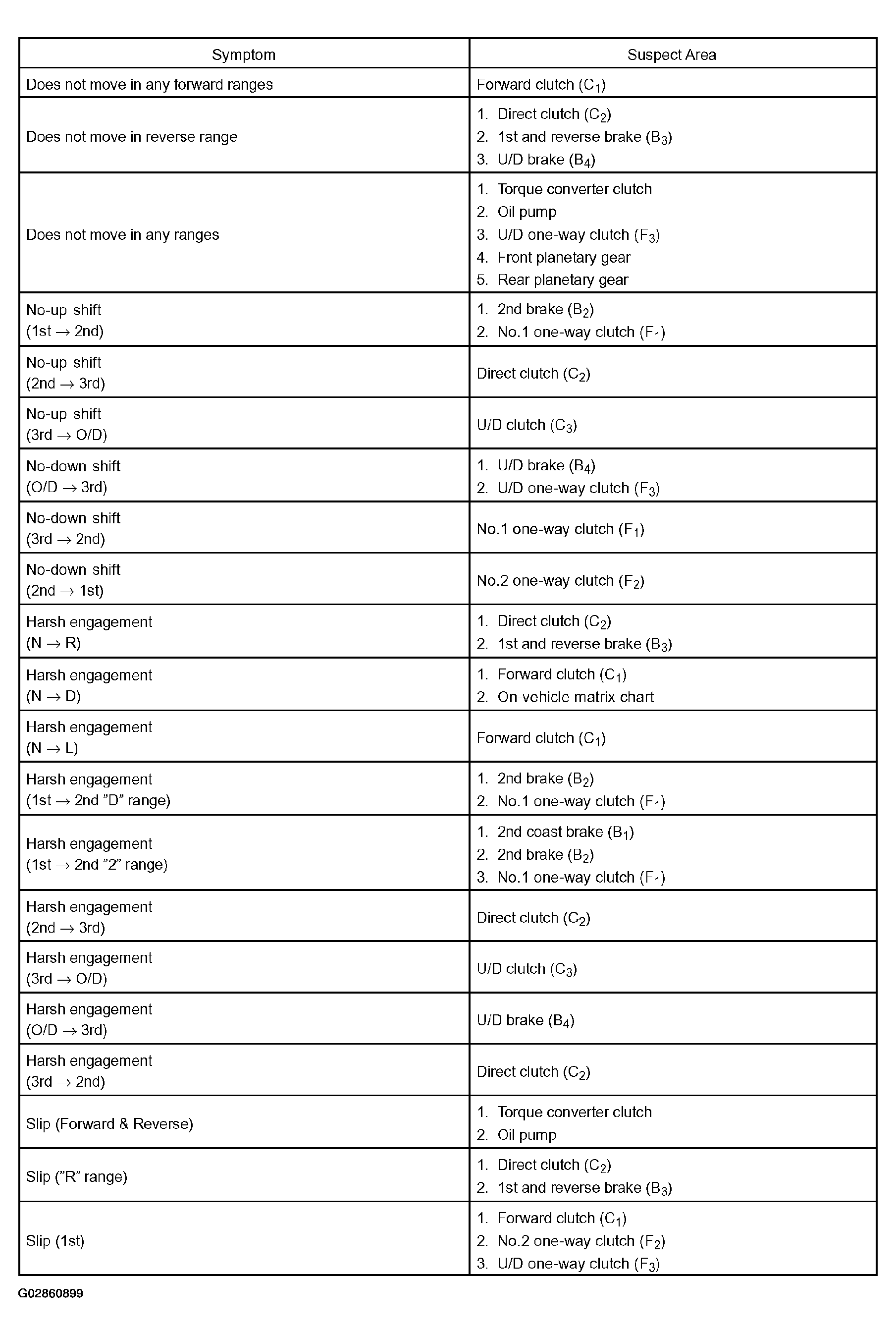

Fig 1: Problem Symptoms Table (4 Of 5)
G02860899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

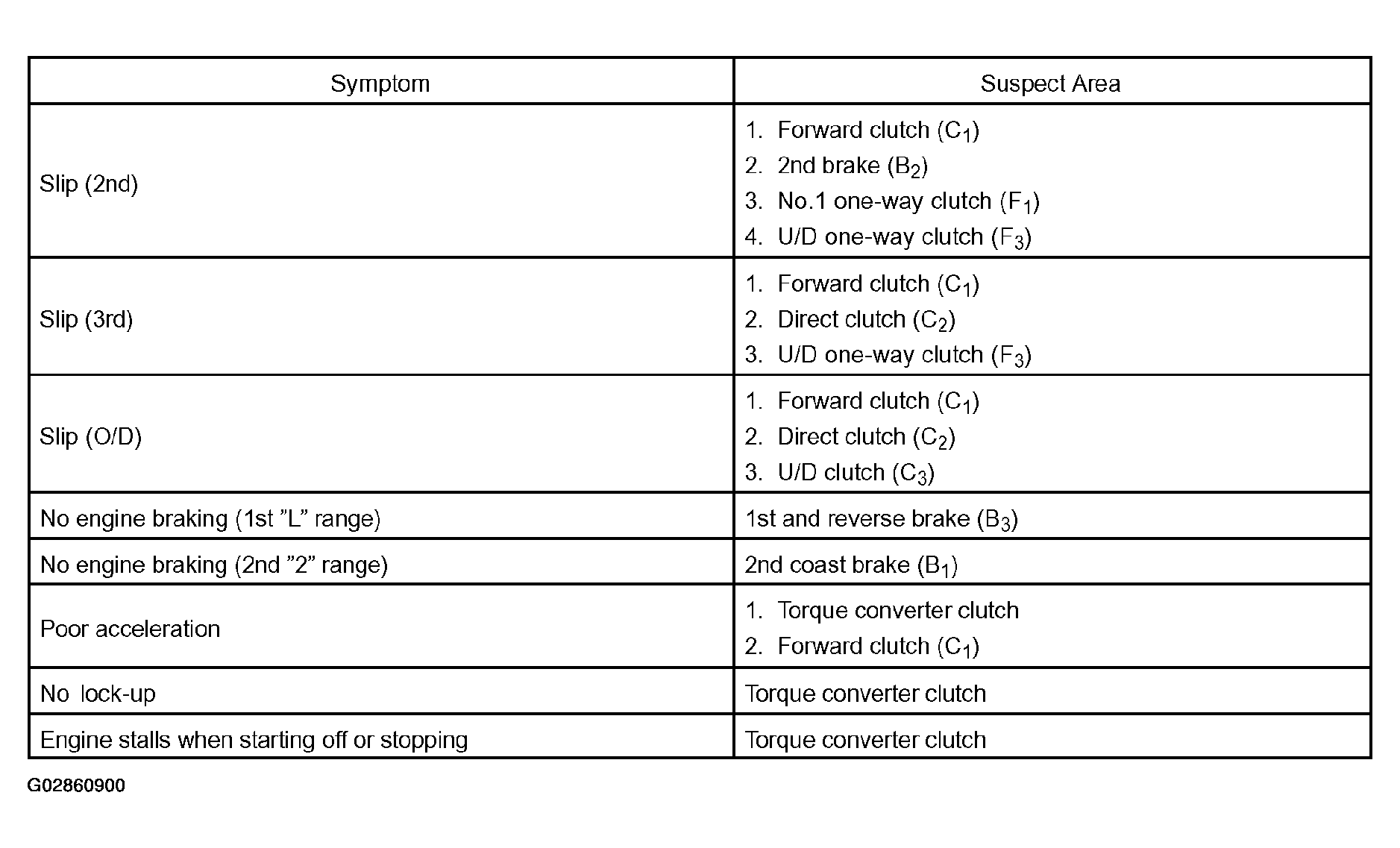

Fig 2: Problem Symptoms Table (5 Of 5)
G02860900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
